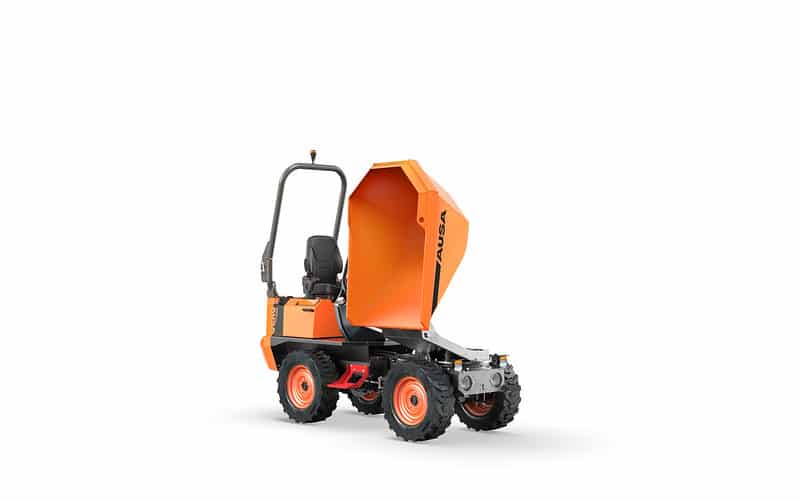

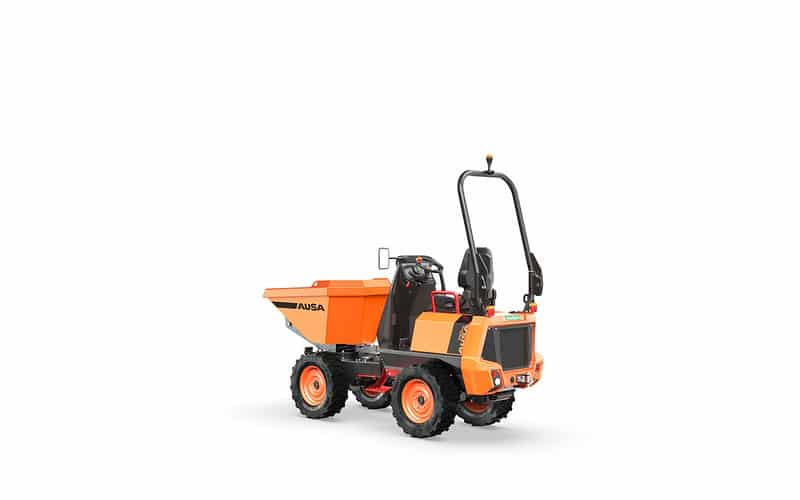

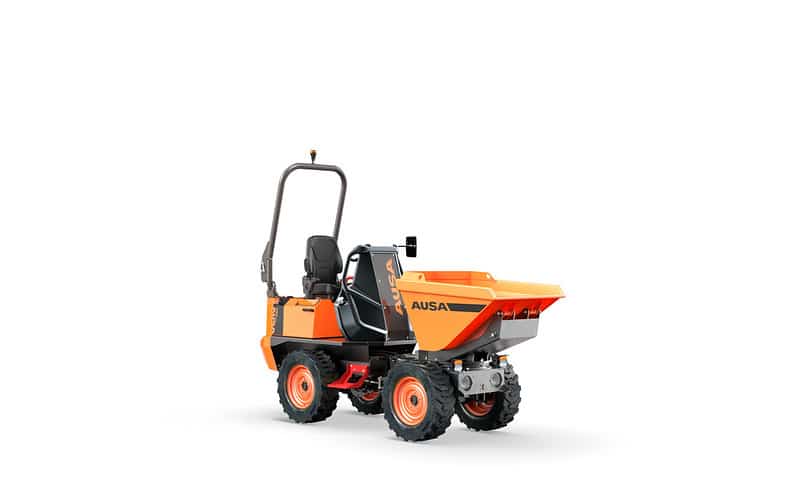

D101AHG
The D101AHG is AUSA’s most compact dumper with a swivel skip. Its compact size and excellent maneuverability make it ideal for conveniently unloading materials into side ditches.
With hydrostatic transmission, comfort and safety are given. The transmission’s retention prevents the machine from rolling on slopes, even without applying the brake. Additionally, with no need to shift gears, the operator can fully focus on maneuvering the machine and managing the load.
Compactness

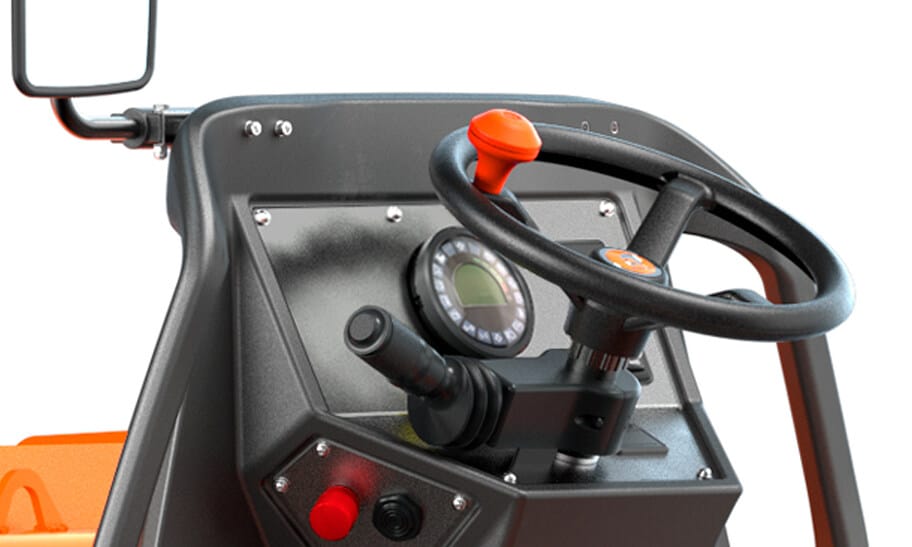

Joystick all in one hand
Easy to maneuver
Comfort
Easy to use

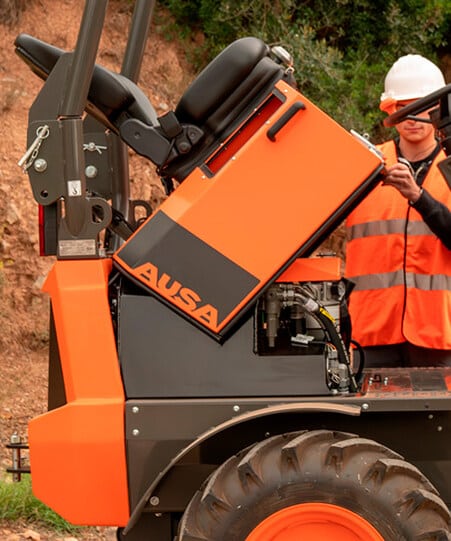

Tilting cab
More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 1000 kg |
| Chassis | Articulated |
| Water skip capacity | 325 l |
| Level skip capacity | 390 l |
| Heaped skip capacity | 545 l |
| Empty weight | – |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | D1105-E4B |
| Power | 15.4 kW |
| Torque | 70,3@1600 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | – |
Driving
| Max. speed | 14 km/h |
| Maximum gradient | 35 % |
| External turning radius | 3000 mm |
| Traction | 4×4 |
| Tyres | 27×8.50-15 |
Hydraulic system
| Hydraulic circuit | 8 cc gear pumps |
| Flow rate | 21 l/min |
| Working pressure | 150 bar |
Tank capacity
| Fuel | 37.5 l |
| Hydraulic system | 24.5 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Negative brake
Lighting & Driving
Rear-view mirror
Comfort

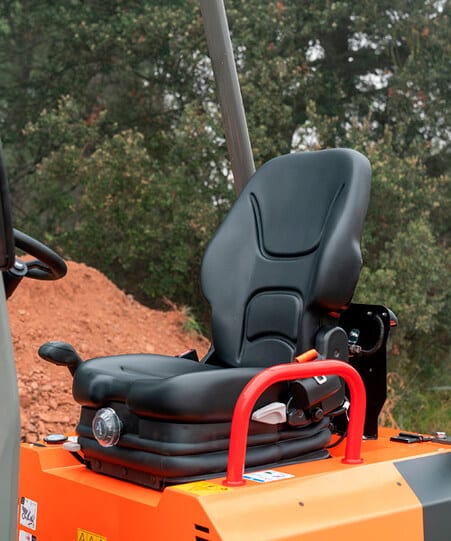

All-in-one joystick, Extra comfort seat, fully adjustable
Advanced equipment
Hydrostatic transmission
Accessories
Metal engine cover
