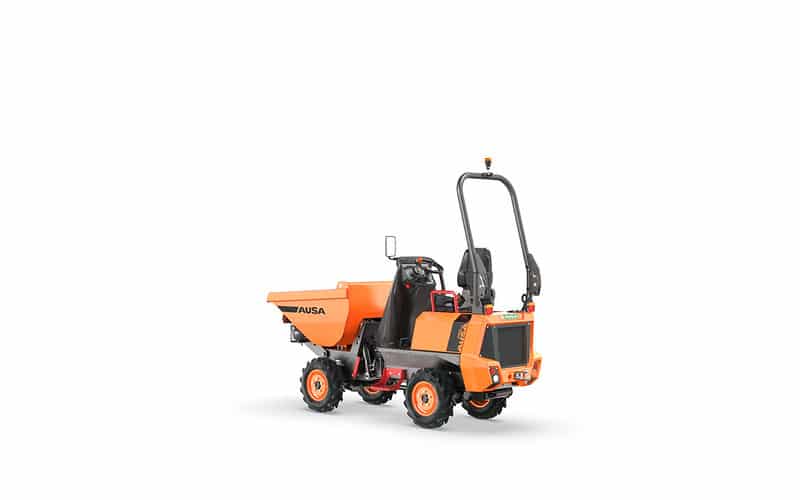

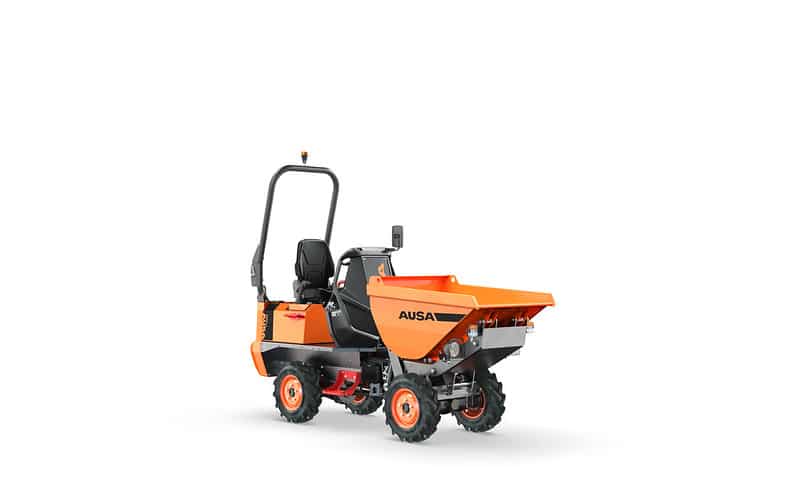

D101AHA Compact

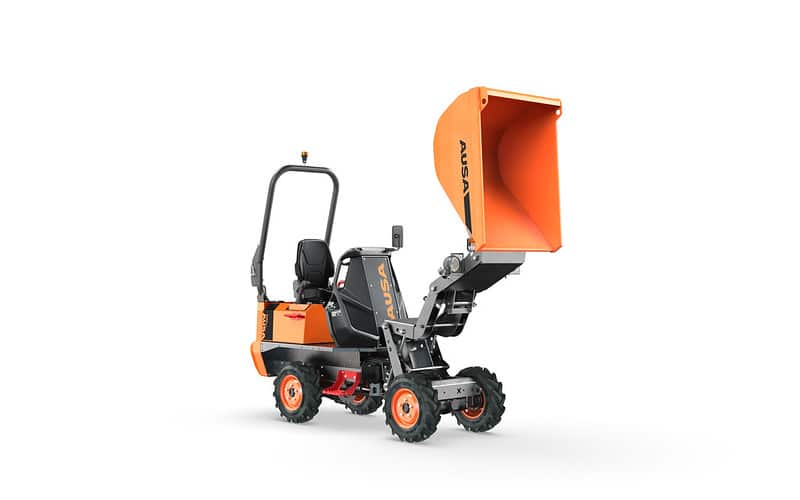

The D101AHA Compact dumper is AUSA’s smallest model. It features a high-tip skip with a 1,000-kg (2,200 lb) payload capacity. With its narrow width of just 100 cm (39 in), it can easily pass through standard buildings and residential doorways. This makes the D101AHA Compact the perfect dumper for indoor projects like renovations or small demolitions. Additionally, its permanent 4-wheel drive ensures it can handle the toughest terrains with ease.
Compactness

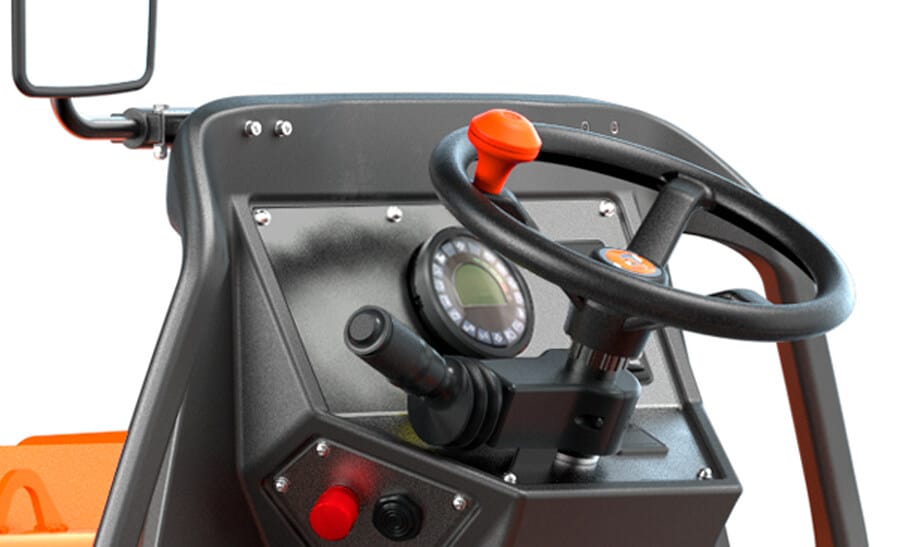

Joystick all in one hand
Easy to maneuver

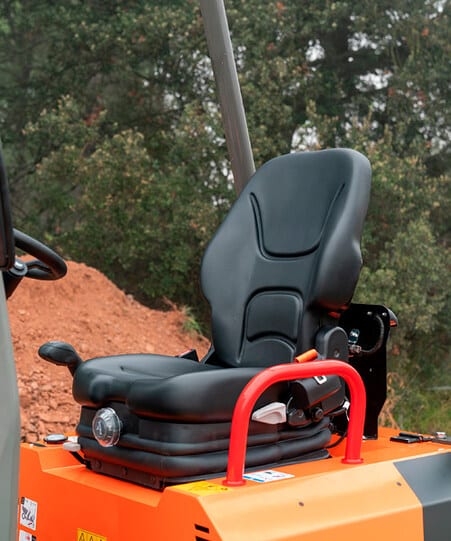

Comfort
Easy to use

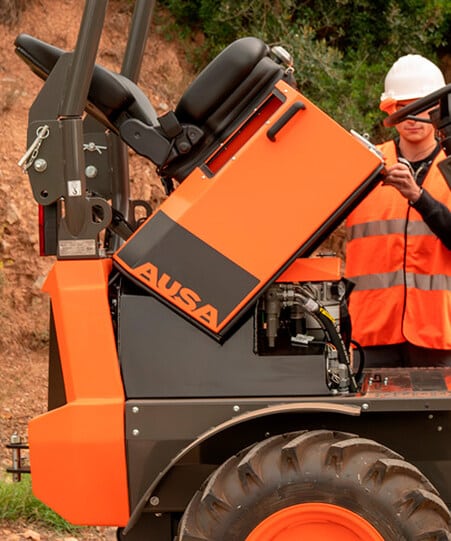

Tilting cab
More Images & Videos
Technical Information
General
| Unloading system | High tip |
| Load capacity | 1000 kg |
| Chassis | Articulated |
| Water skip capacity | 345 l |
| Level skip capacity | 395 l |
| Heaped skip capacity | 565 l |
| Empty weight | 1465 kg |
| Transmission | Hydrostatic |
| Reversibility | Non-reversible |
Engine
| Brand | Kubota |
| Model | D1105-E4B |
| Power | 15.4 kW |
| Torque | 70,3@1600 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | – |
Driving
| Max. speed | 14 km/h |
| Maximum gradient | 35 % |
| External turning radius | 3000 mm |
| Traction | 4×4 |
| Tyres | 6.5/80-12 |
Hydraulic system
| Hydraulic circuit | 8 cc gear pumps |
| Flow rate | 21 l/min |
| Working pressure | 150 bar |
Tank capacity
| Fuel | 37.5 l |
| Hydraulic system | 24.5 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Equipment
Driving Position
Rear folding ROPS protective structure
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Negative brake

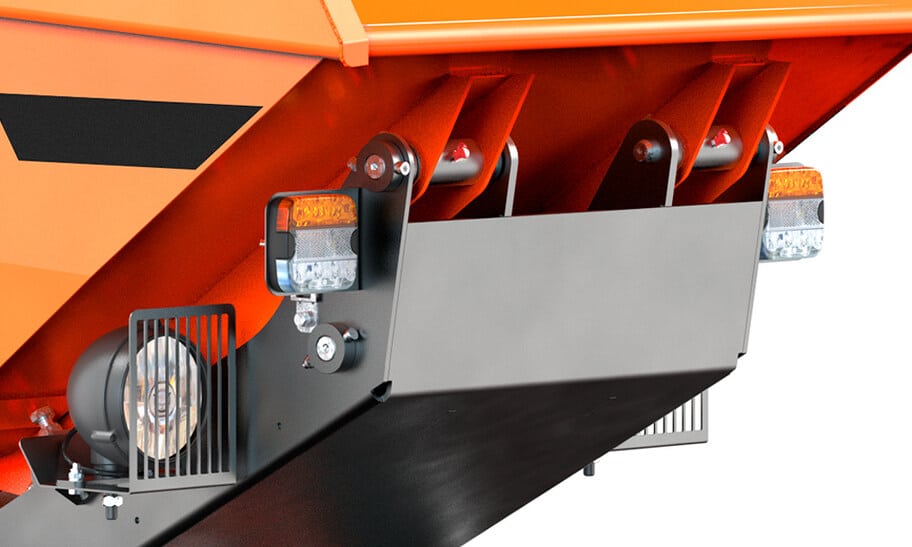

Lighting & Driving
Rear-view mirror
Comfort
All-in-one joystick, Extra comfort seat, fully adjustable
Advanced equipment
Hydrostatic transmission
Accessories
Metal engine cover
