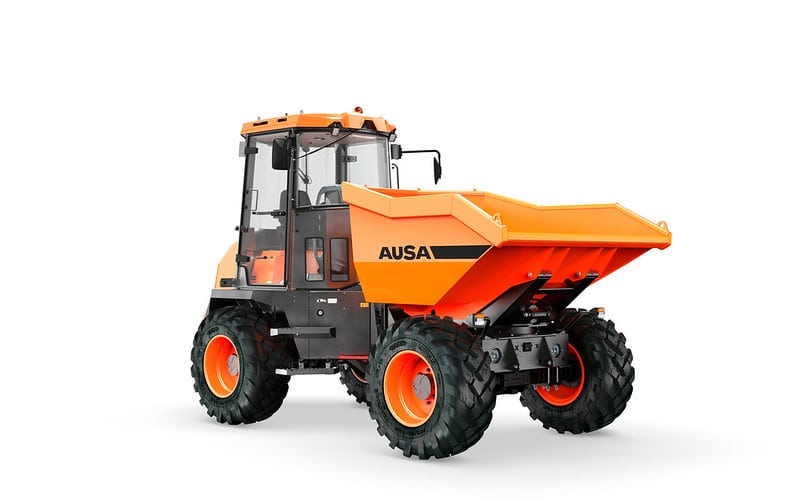

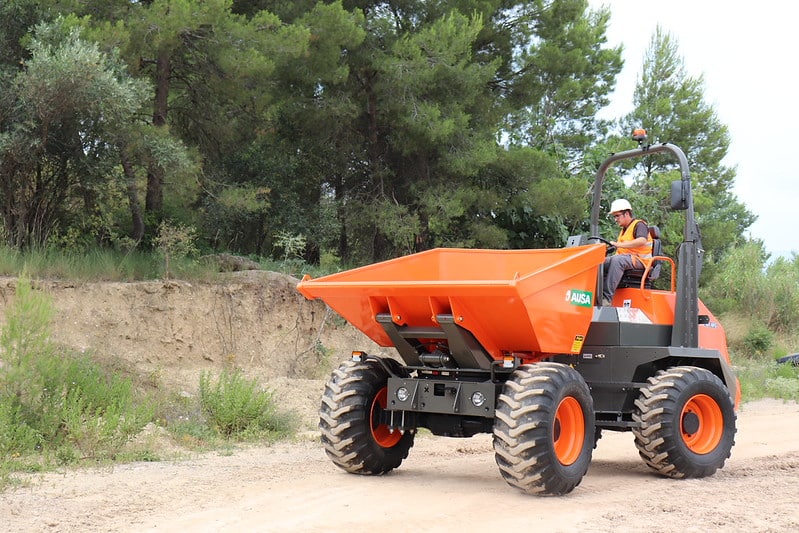

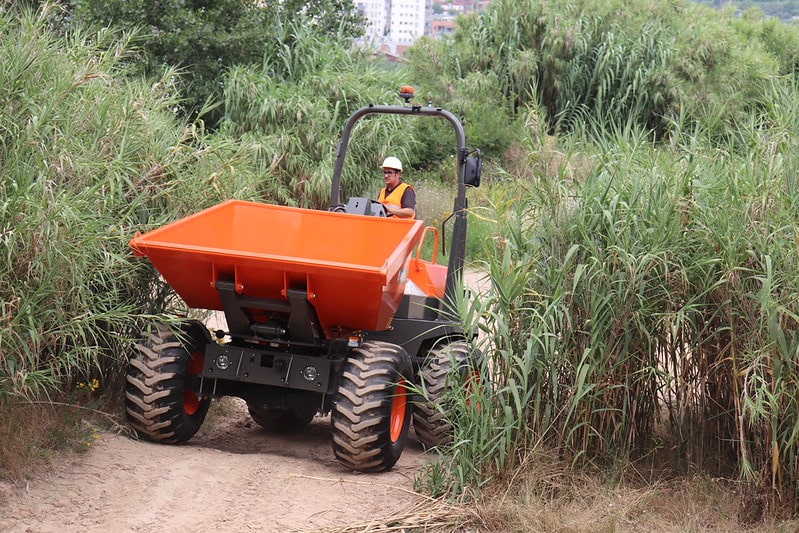

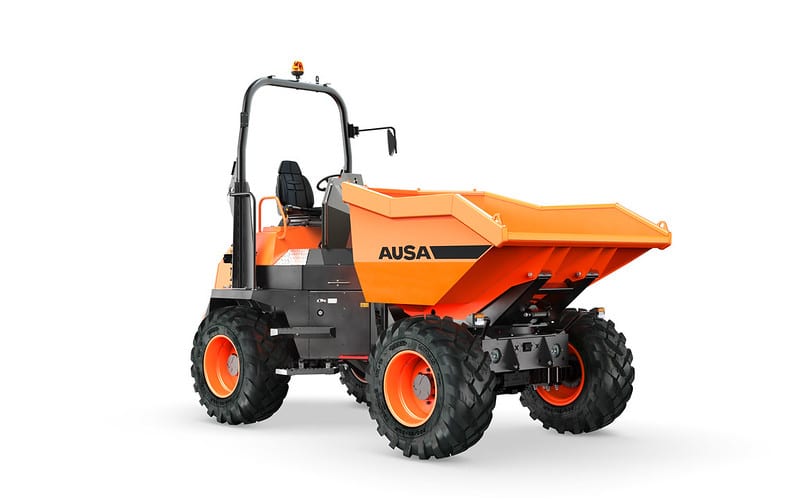

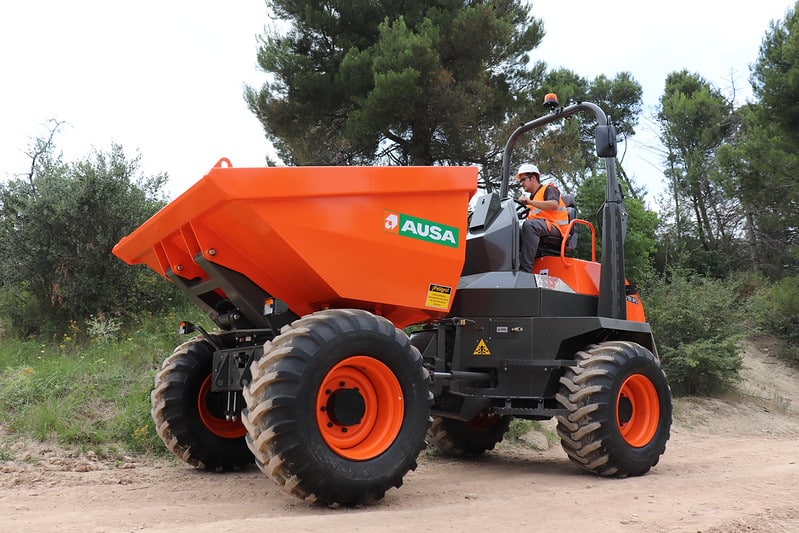

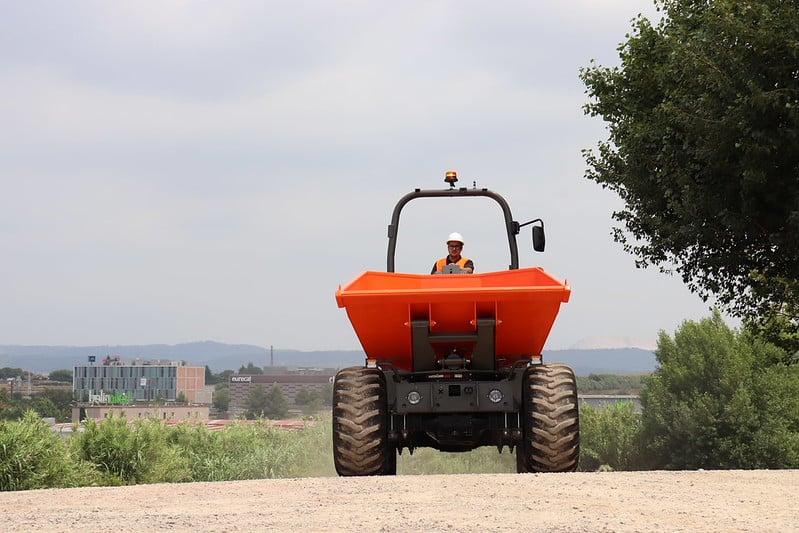

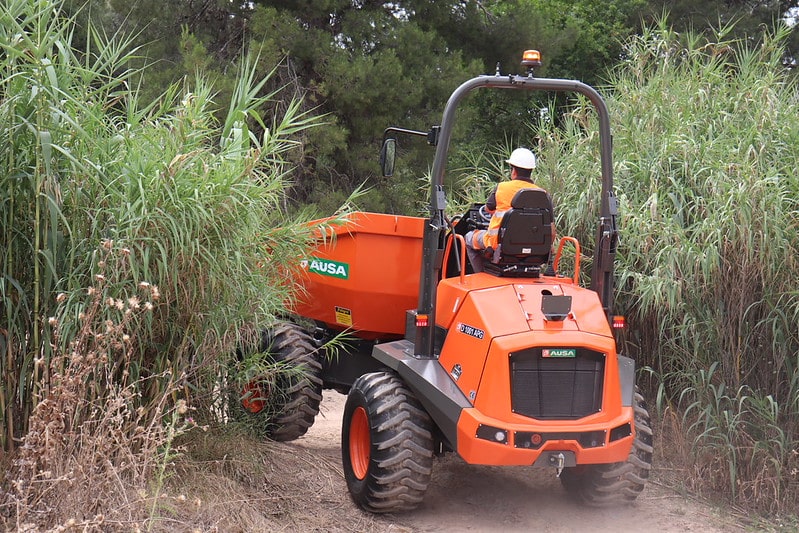

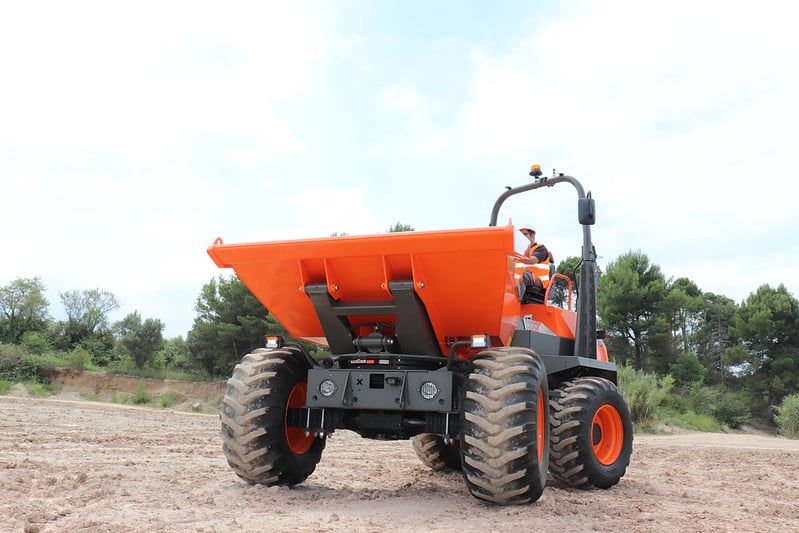

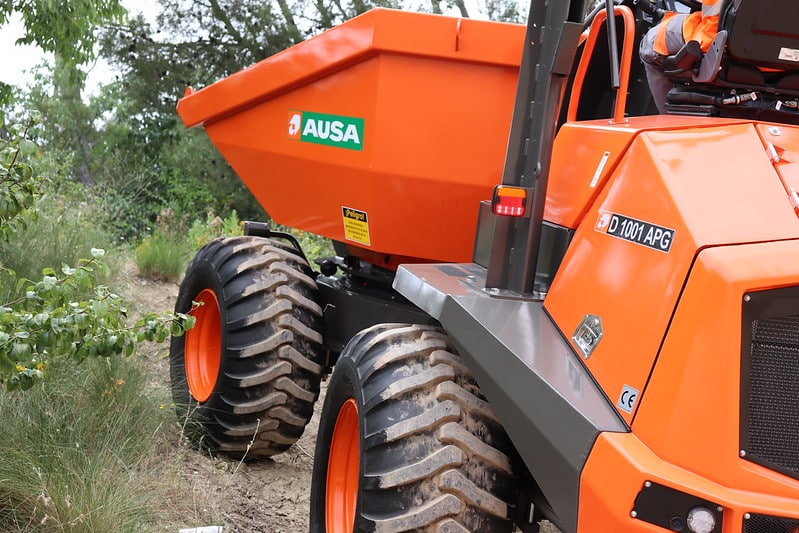

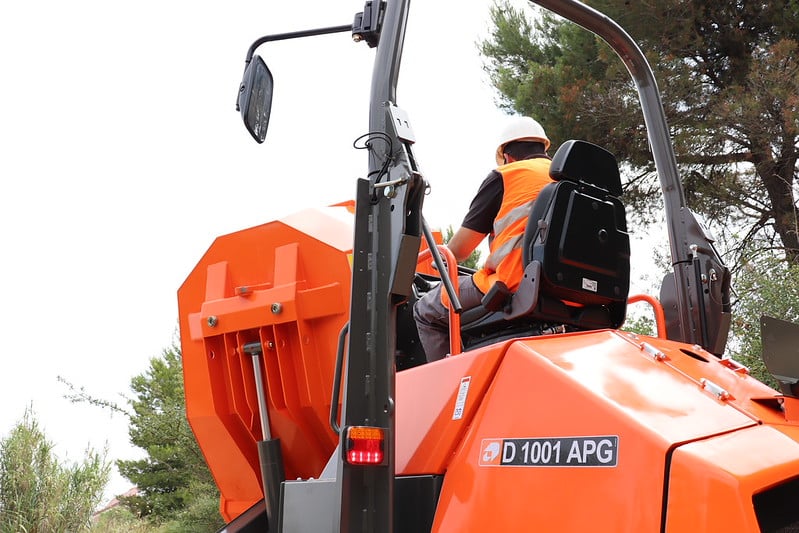

D1001APG

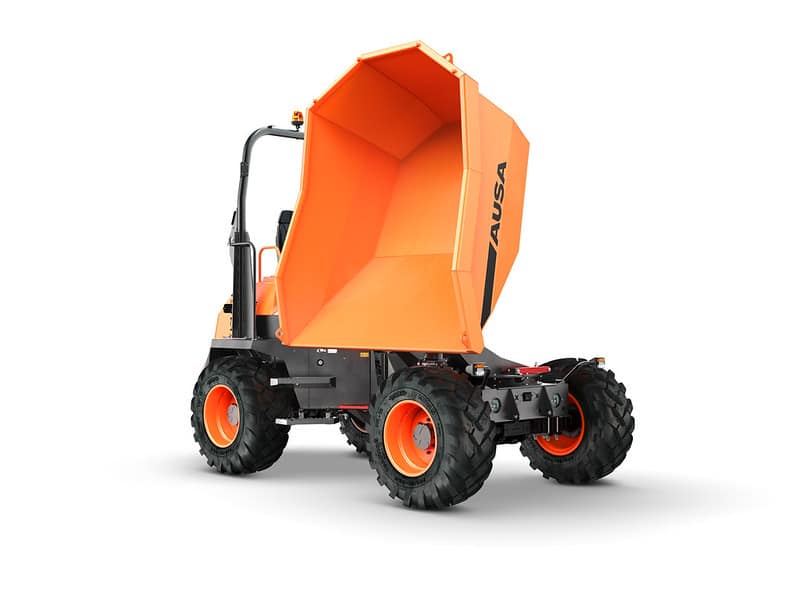

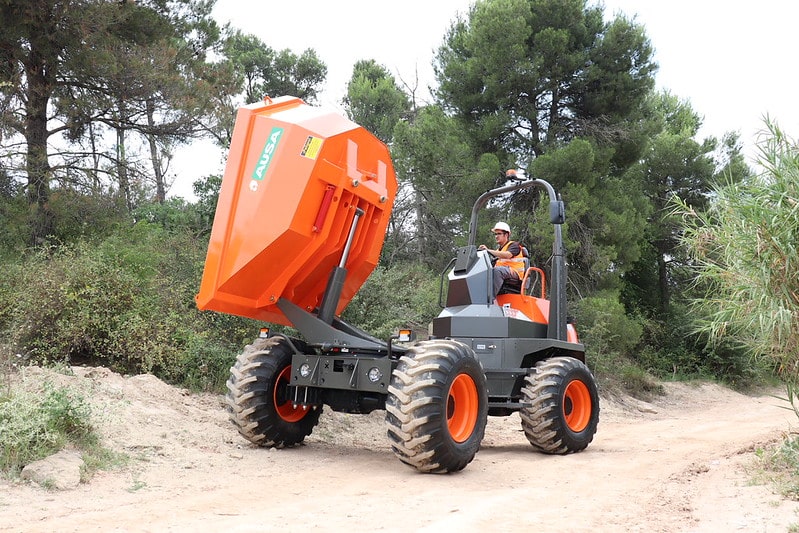

Cost-effective, safe and high-tech. It is equipped with a 180-degree swing skip and it has a 10-tonne (22,000 lb) payload, making it AUSA’s articulated dumper with the highest payload. Its transmission with a converter ensures the fast delivery of power and speed.
The D1001APG dumper is very easy to maintain because the arrangement of all of the components has been designed to keep the unit’s downtime to a minimum. It can optionally be equipped with Smart Stop, which turns off the engine when it is not in use. This will significantly reduce fuel consumption, maintaining low CO2 emissions.
Additionally, a digital display is built into the driver’s console, where you will find all of the real-time information about the machine, such as the speed, RPM, fluid levels and alarms.

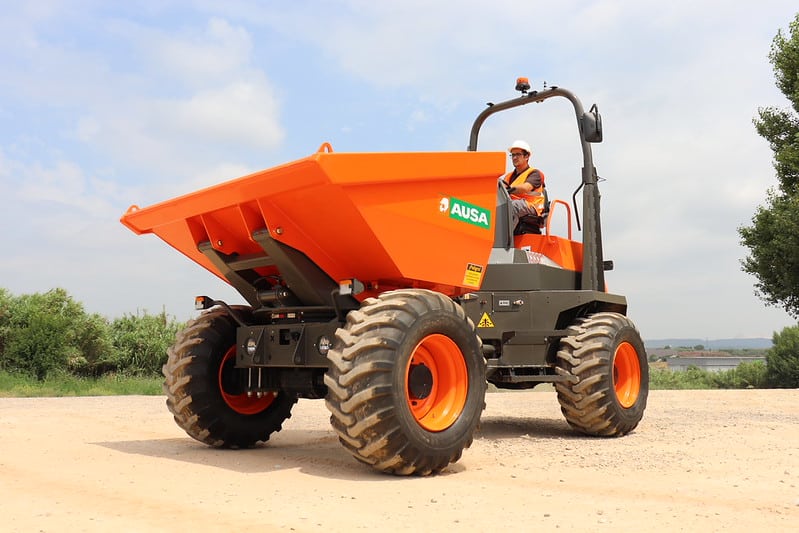

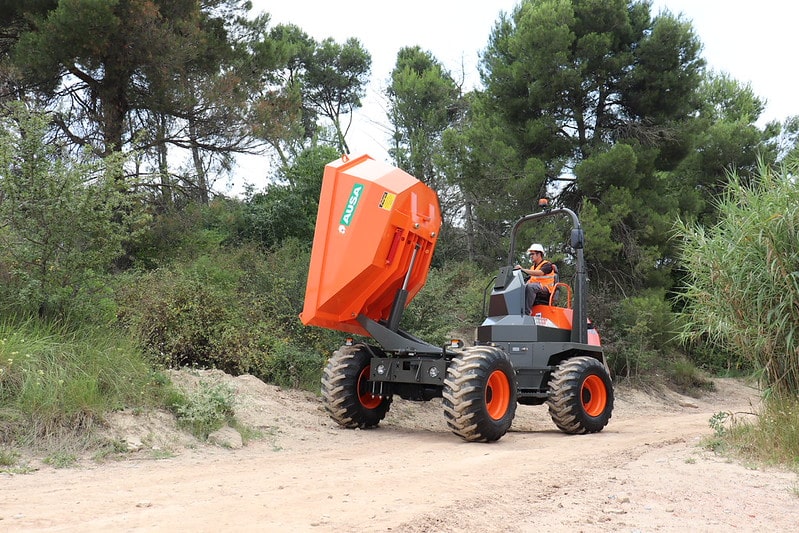

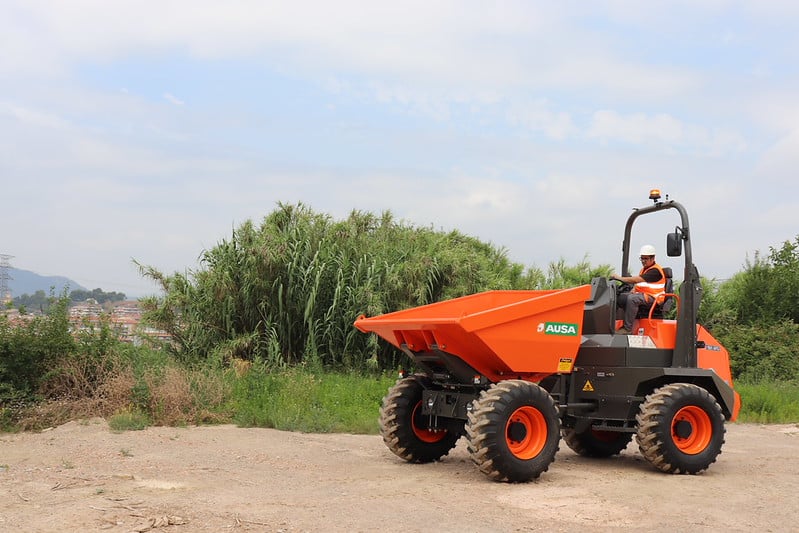

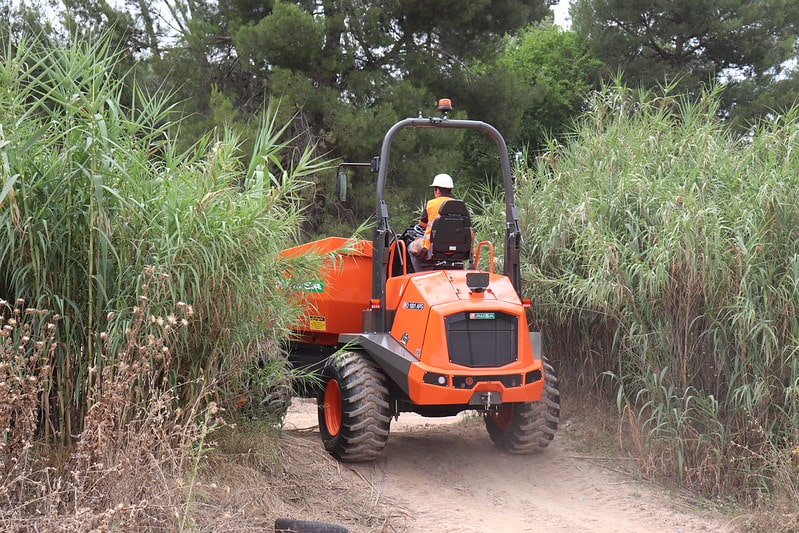

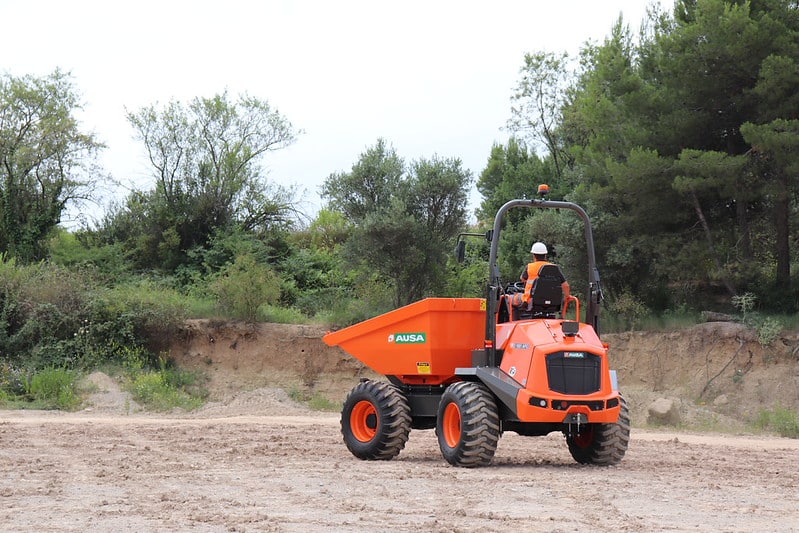

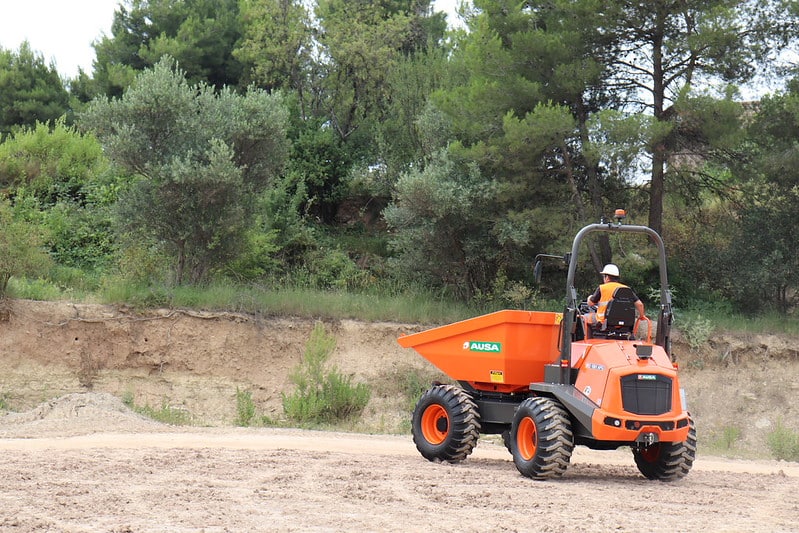

More Images & Videos
Technical Information
General
| Unloading system | Swivel tip |
| Load capacity | 10000 kg |
| Chassis | Articulated |
| Water skip capacity | 1850 l |
| Level skip capacity | 3300 l |
| Heaped skip capacity | 3900 l |
| Empty weight | 5153 kg |
| Transmission | Power shuttle |
| Reversibility | Non-reversible |
Engine
| Brand | Deutz |
| Model | TCD 3.6 L4 HT |
| Power | 55.4 kW |
| Torque | 405@1300 |
| No. of cylinders | 4 |
| Emissions | Stage V |
| Noise level (LwA) | 100.6 dB(A) |
Driving
| Max. speed | 25 km/h |
| Maximum gradient | 45 % |
| External turning radius | 6287 mm |
| Traction | 4×4 |
| Tyres | 500/60-22.5 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 46 l/min |
| Working pressure | 180 bar |
Tank capacity
| Fuel | 69 l |
| Hydraulic system | 60 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative |
Equipment
Driving Position
Closed ROPS/FOPS cab with heating
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Anti-vandal security system, Negative brake, Full visibility camera on the skip side
Lighting & Driving
Rear-view mirror
Comfort
Adjustable ergonomic seat, All-in-one joystick
Advanced equipment
Digital display, Limited-slip differential on both axles

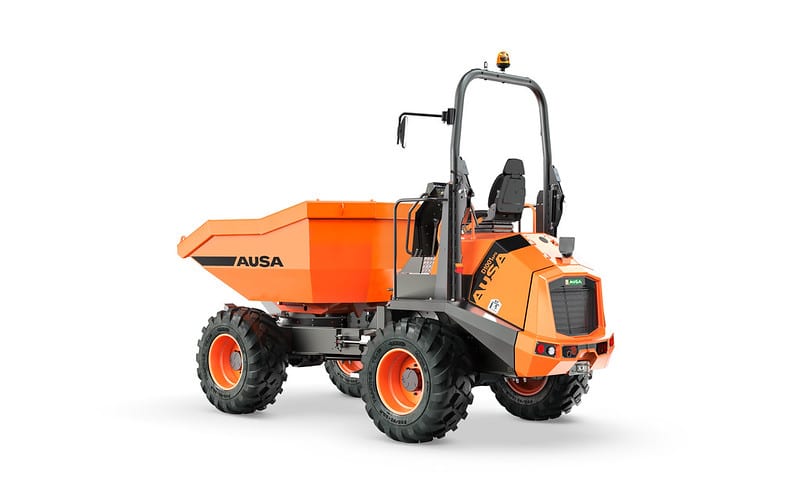

More Articulated Dumpers
