Collecting broom 1100

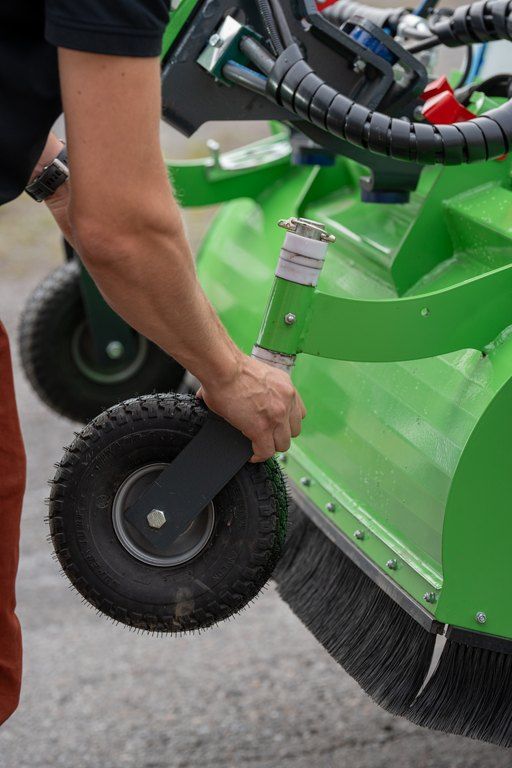

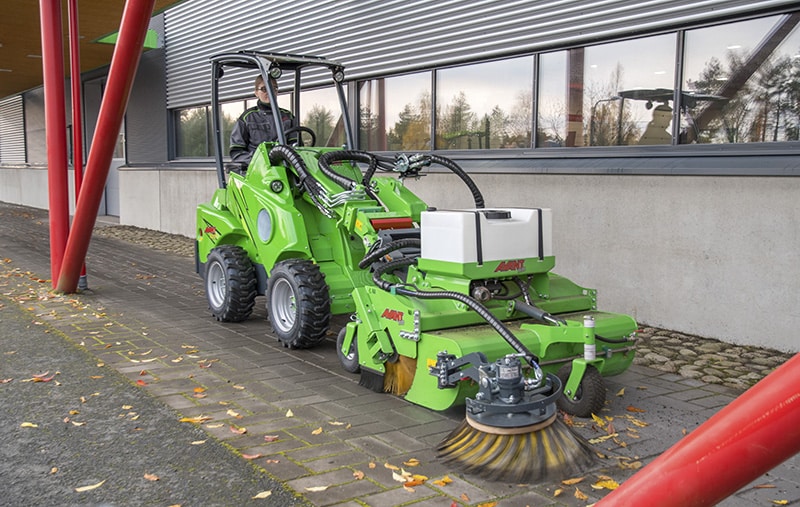

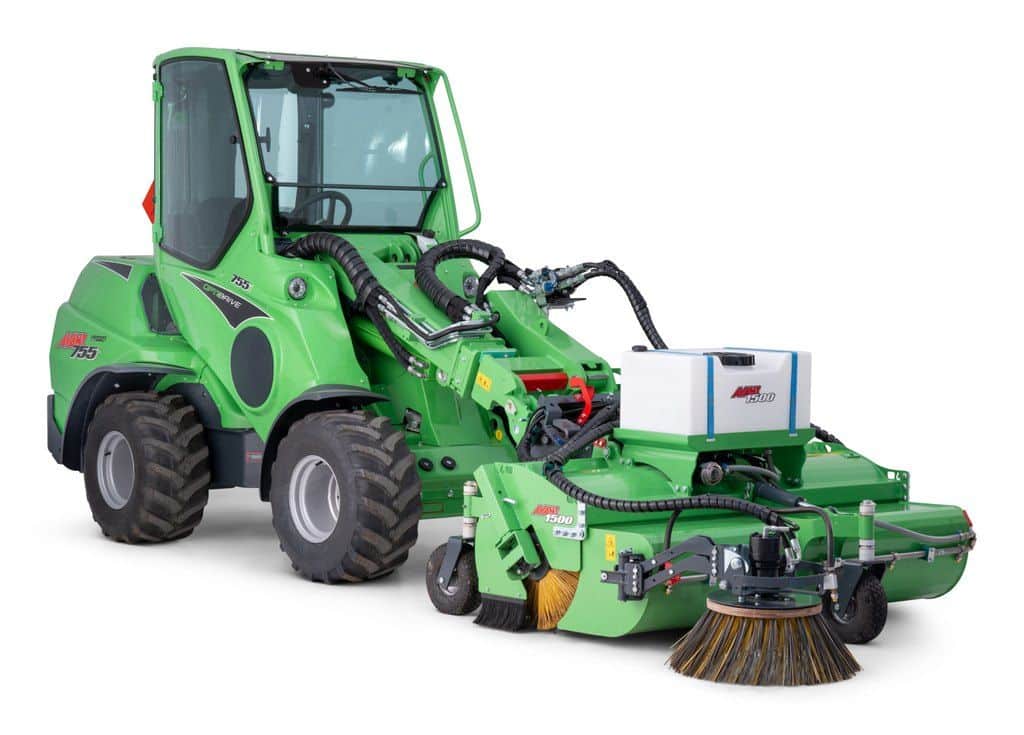

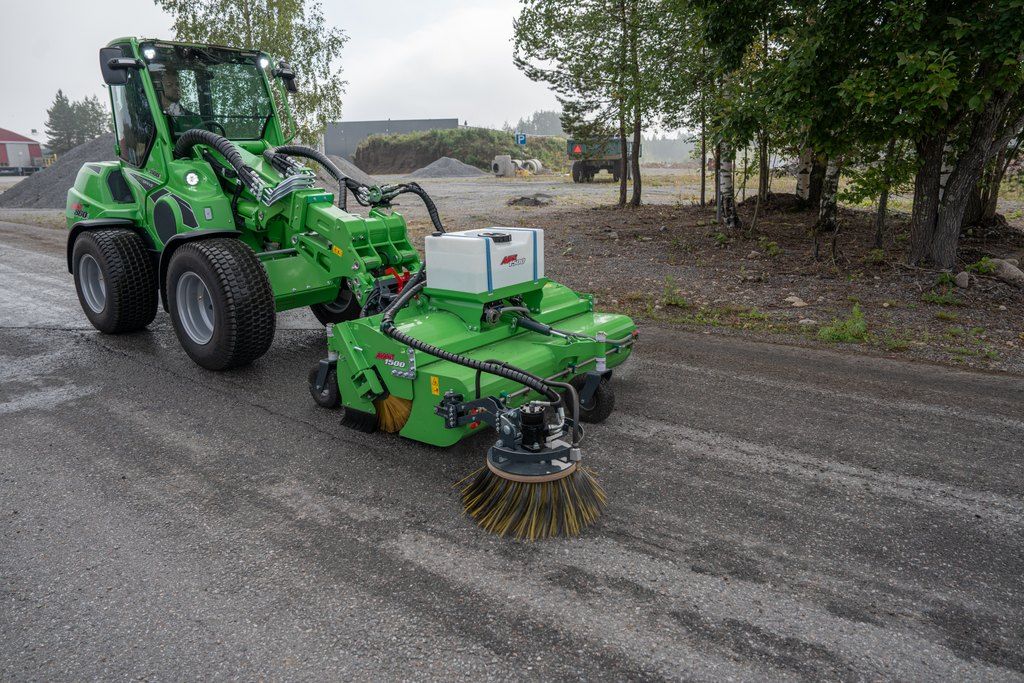

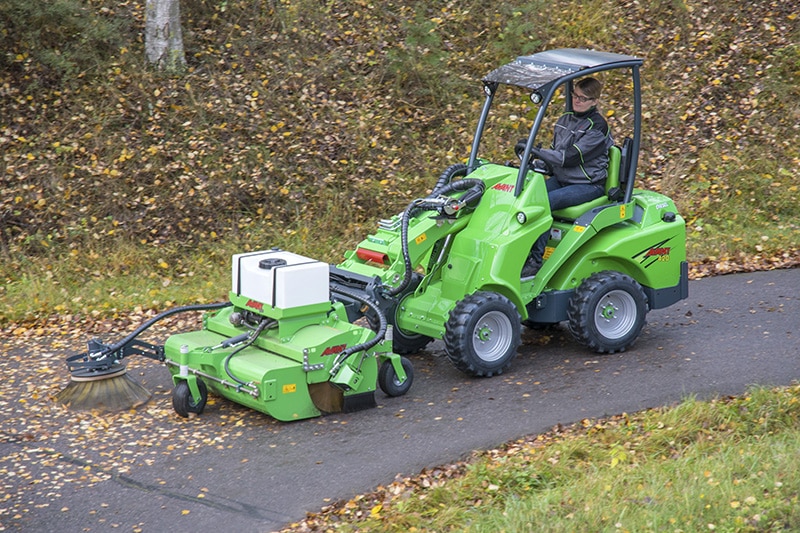

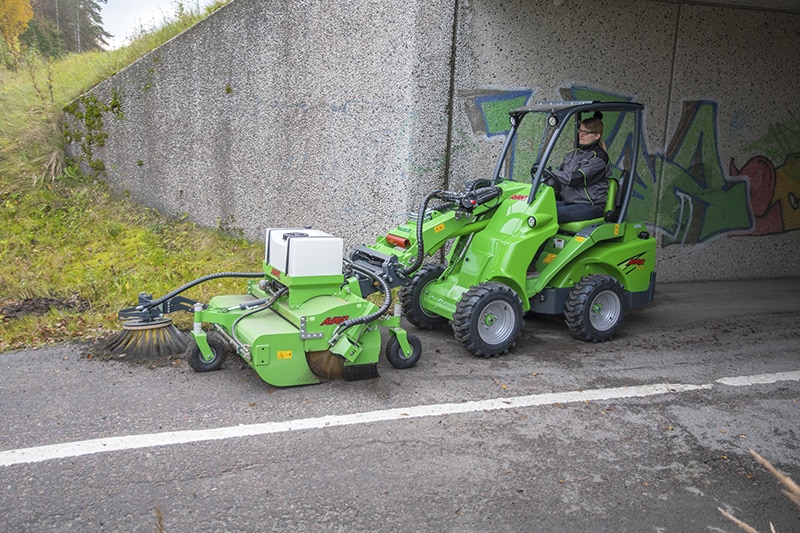

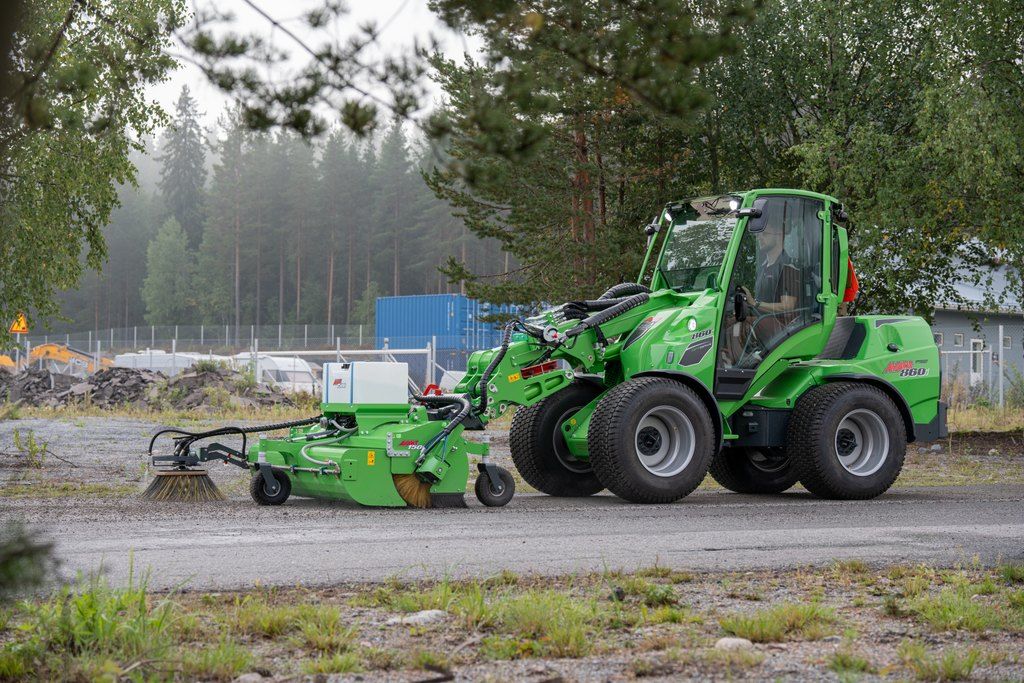

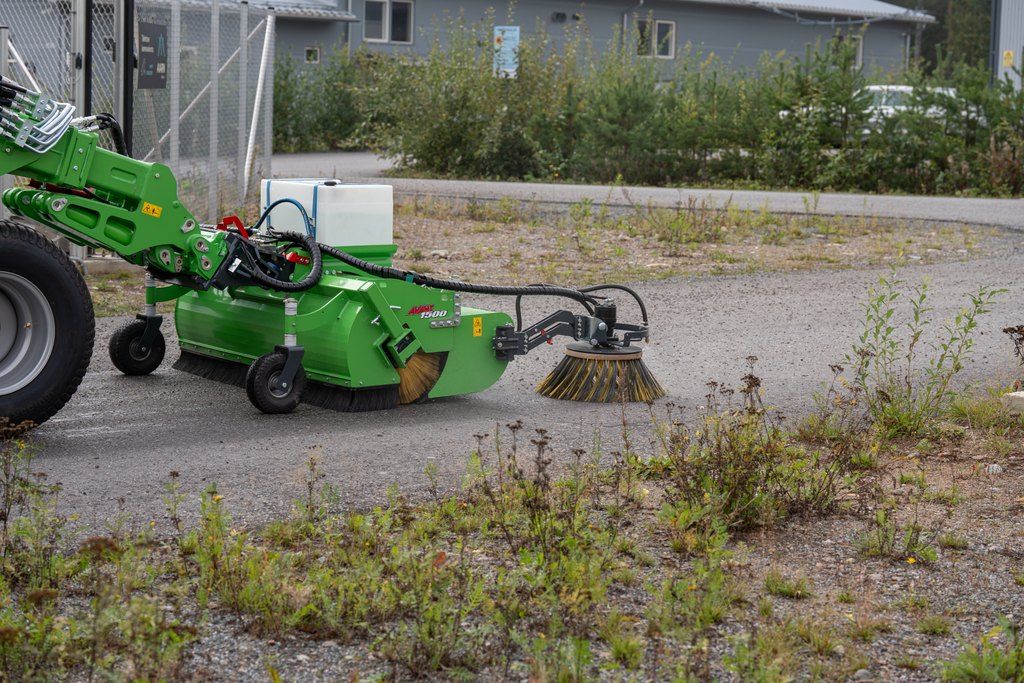

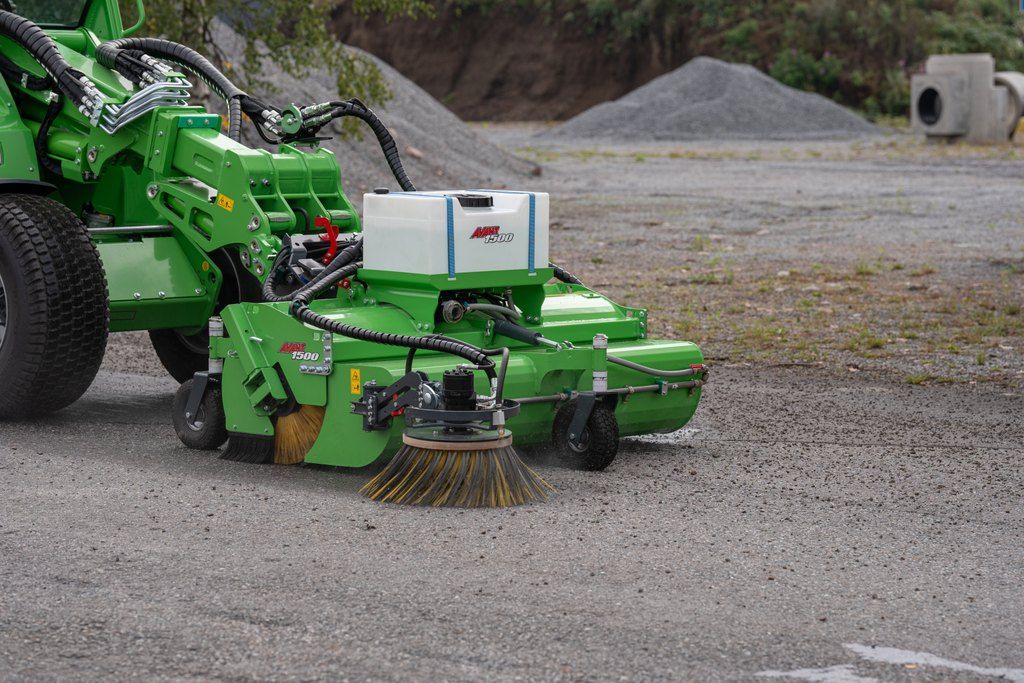

The collecting broom 1100 is mainly intended for Avant 200, 400 and 500 series. Broom diameter is 500 mm, it consists of 32 pcs brush segments which can be changed one by one. The broom is equipped with three support wheels and with Optifloatโ„ข quick attach system which allows both vertical and sideways floating of the broom and guarantees efficient sweeping also on uneven surfaces. Two indicator arrows on the Optifloatโ„ข quick attach bracket make adjustment of the floating very easy. Broom height can be adjusted manually, to compensate wear of the nylon bristles. Collector box with 80 l volume is mounted in front of the broom. Emptying of the box is hydraulic. Water spraying system for dust binding and one side brush are available as an option.

Intended mainly for 200, 400 and 500 series
Equipped with Optifloatโ„ข > works well on uneven surfaces as well
Broom height can be adjusted manually

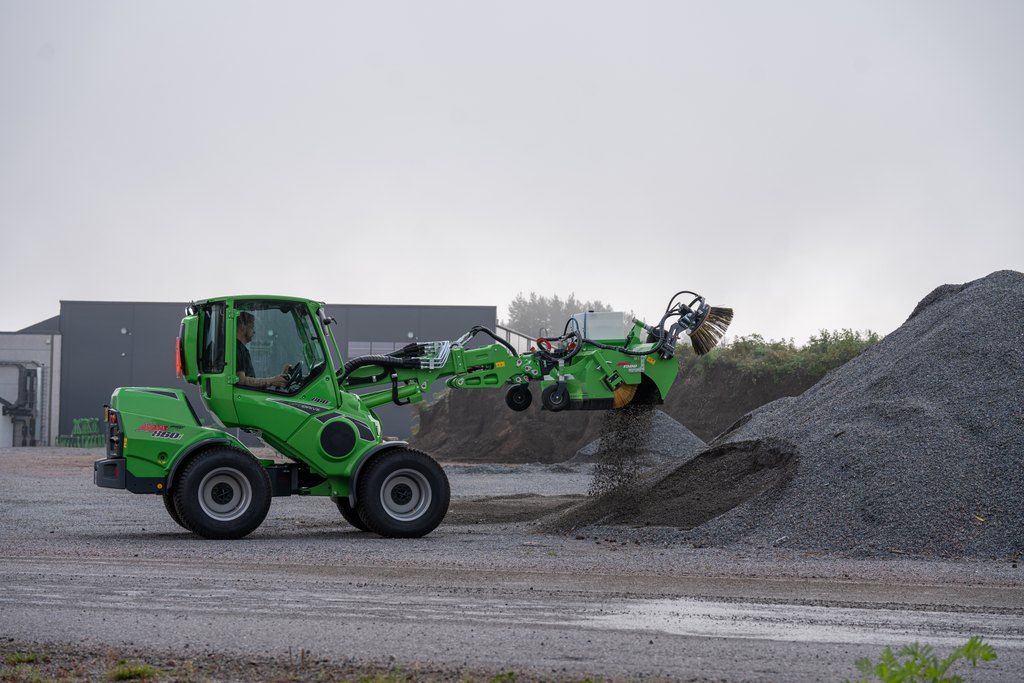

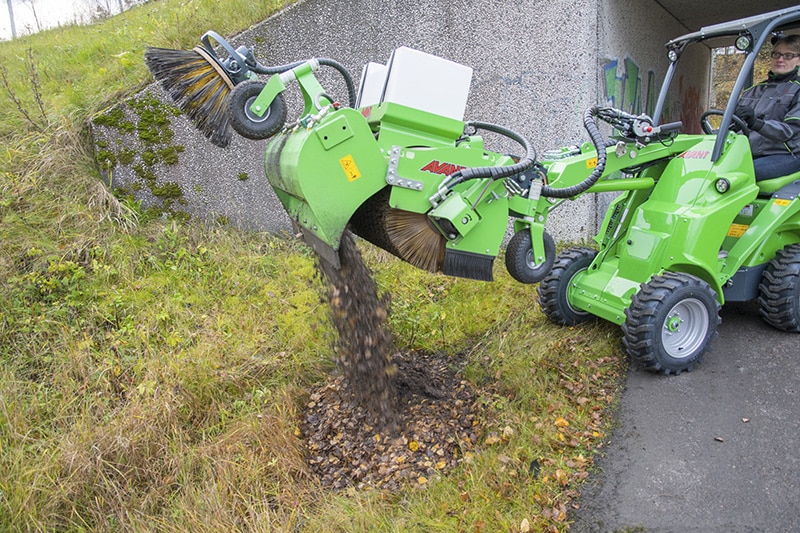

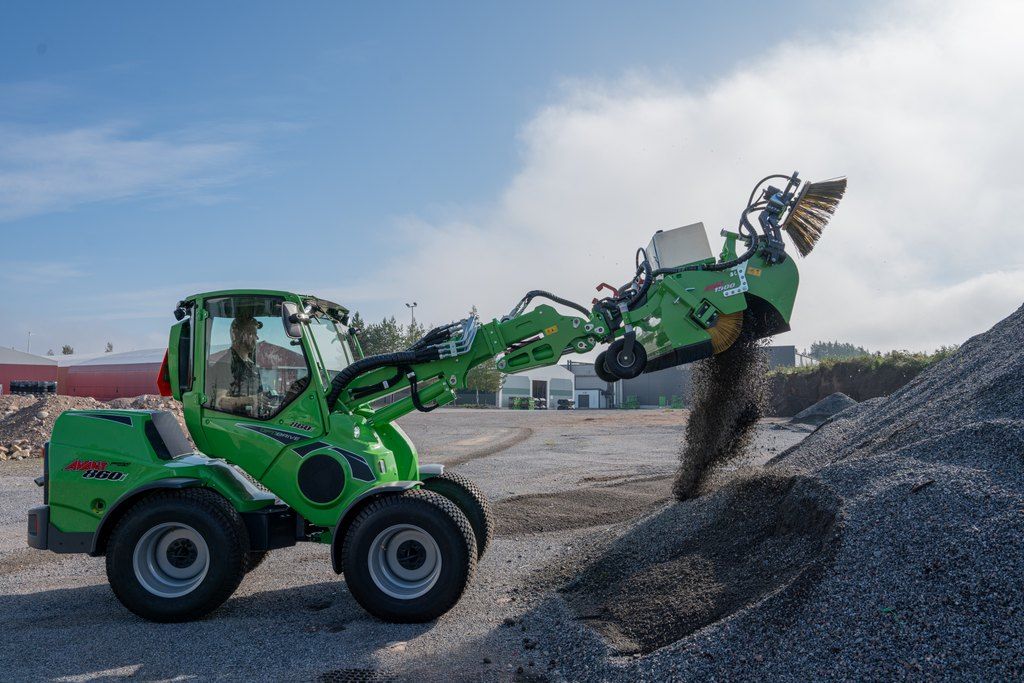

Collector box with hydraulic emptying in front of the broom, box volume 80 l

More Images & Videos

Technical Information

Broom width 1100 mm
Total width 1350 mm
Broom diameter 500 mm
Collector box volume 80 l
Water tank volume 60 l
Weight without side brush 315 kg*
Weight with 1 side brush 340 kg*

*) without water spraying system



Product no Side brush Water spraying system
A36883 no no
A426229 1 brush no
A426231 1 brush yes

Options

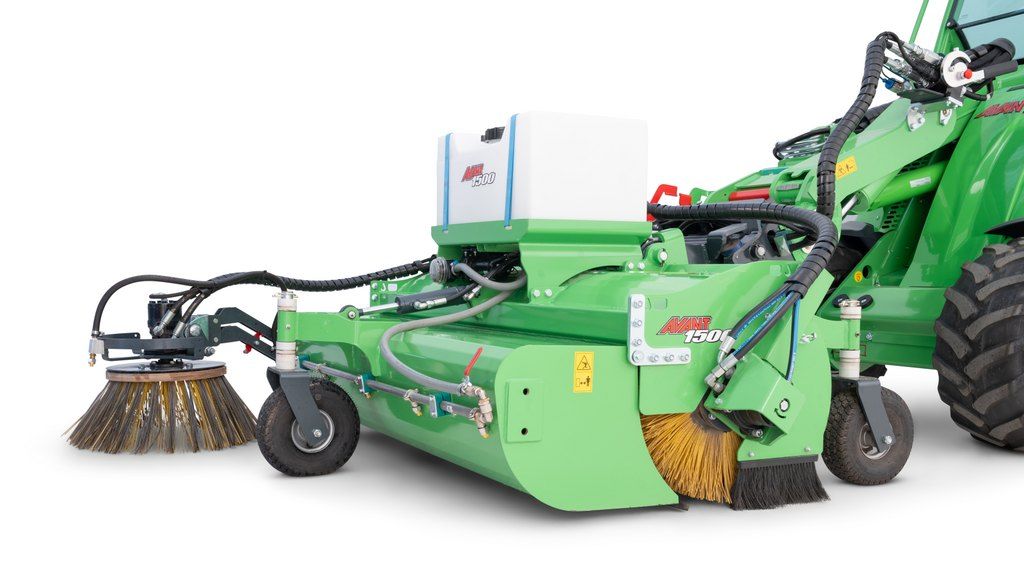

Water spraying system, with 60 l water tankย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  A37431

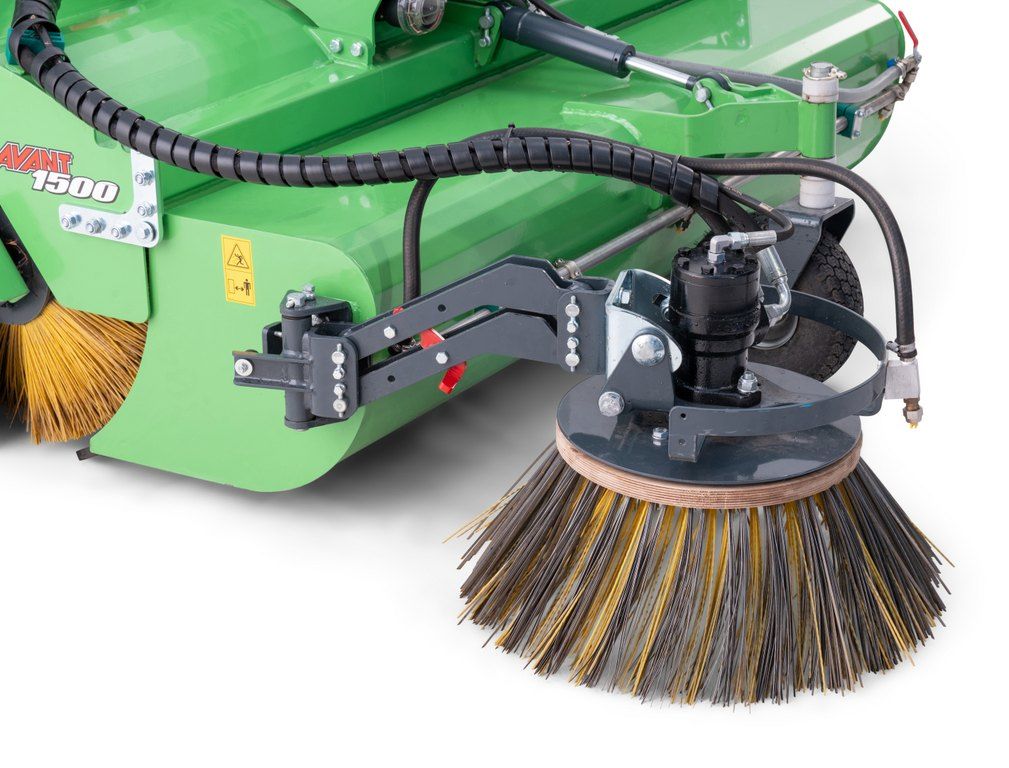

Side brushย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย  ย A35698

(Water spraying system and side brush not available for 200 series)

Compatible Models

very-compatible icon220
very-compatible icon225
very-compatible icon225LPG
incompatible icon313S
incompatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
compatible iconR35
compatible icon630
compatible icon635
compatible icon640
compatible icon735
compatible icon745
compatible icon750
compatible icon755i
compatible icon760i
compatible icon850
compatible icon860i
compatible icone513
compatible icone527
