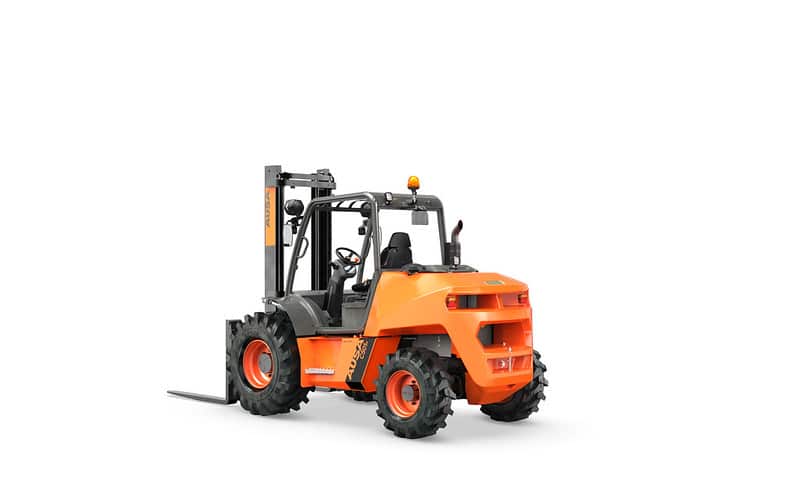

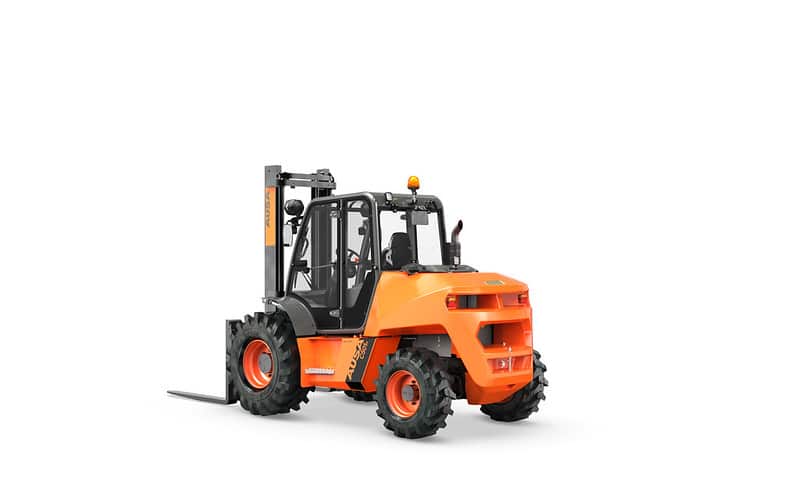

C501H

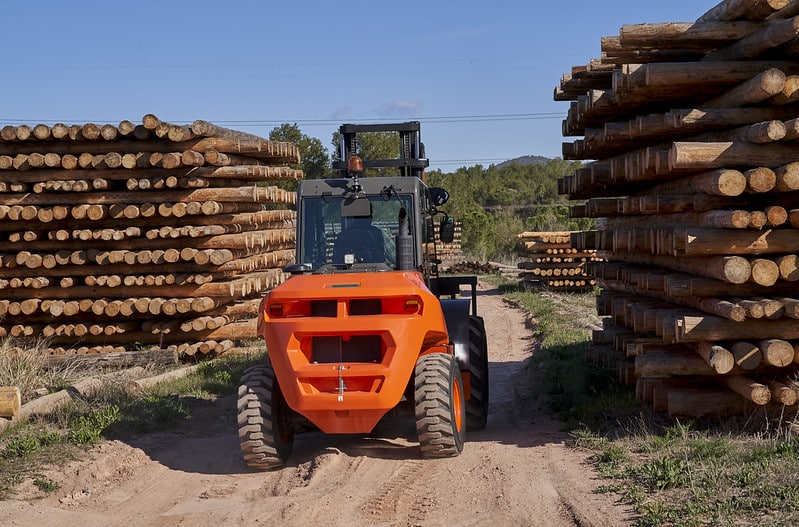

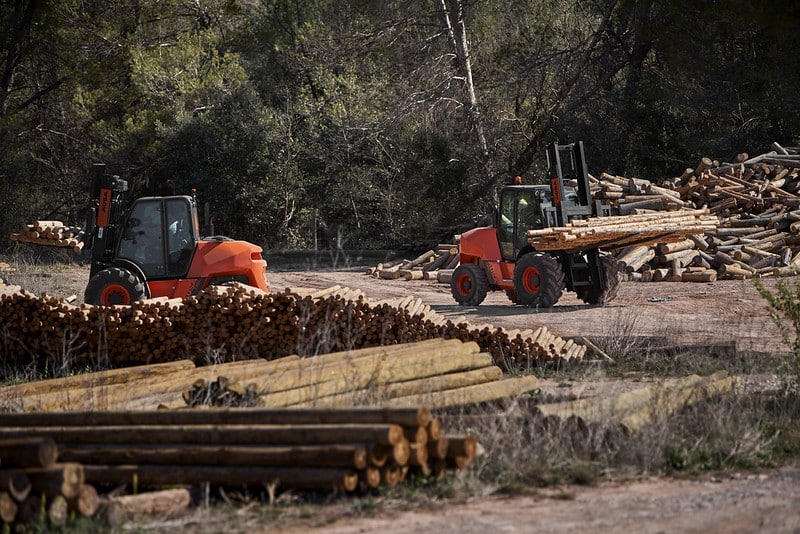

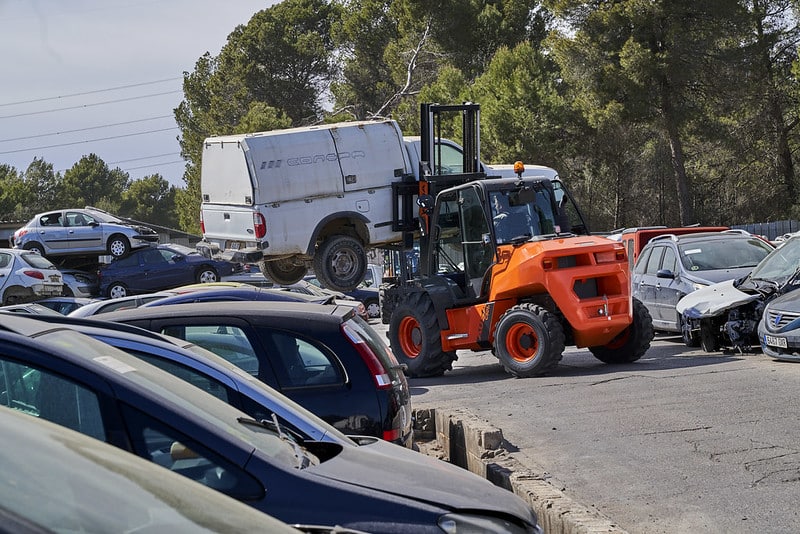

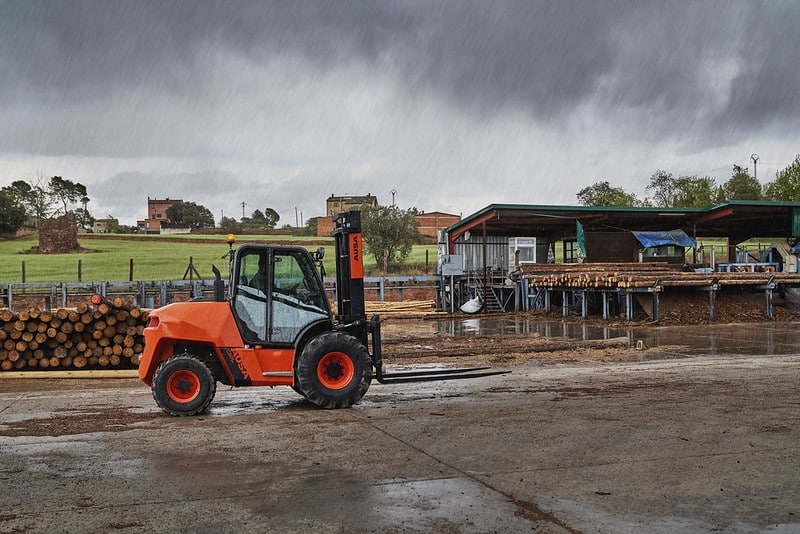

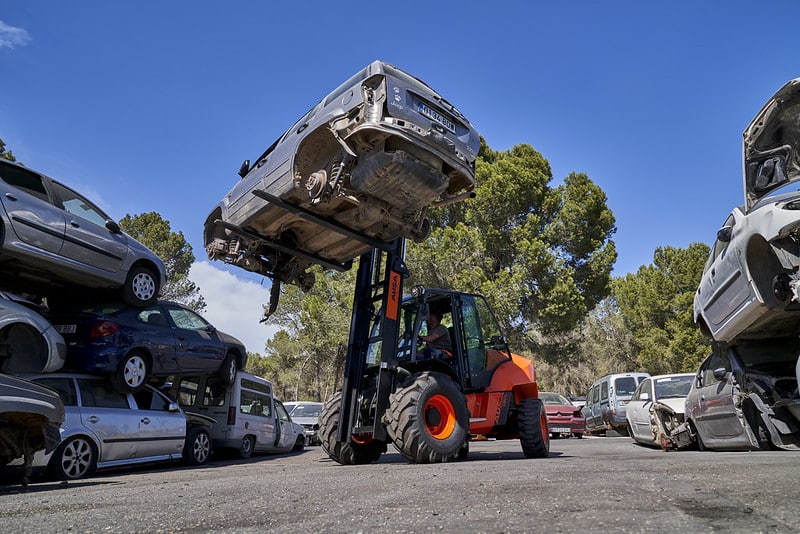

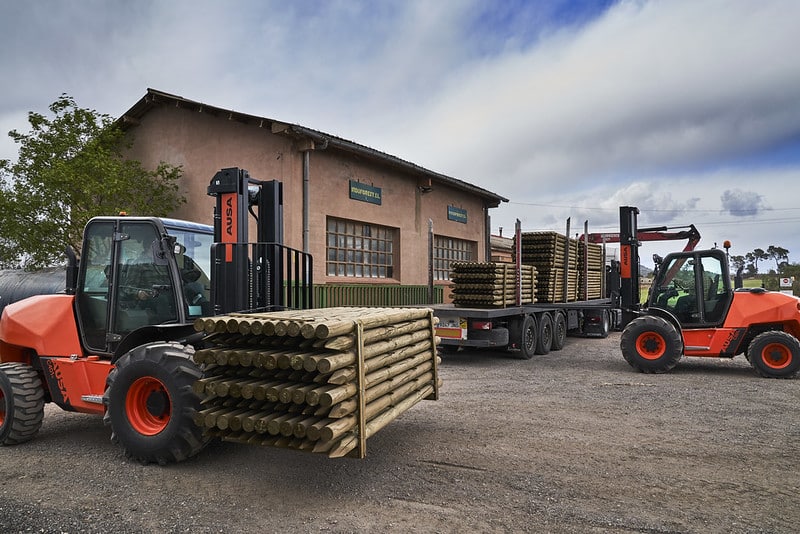

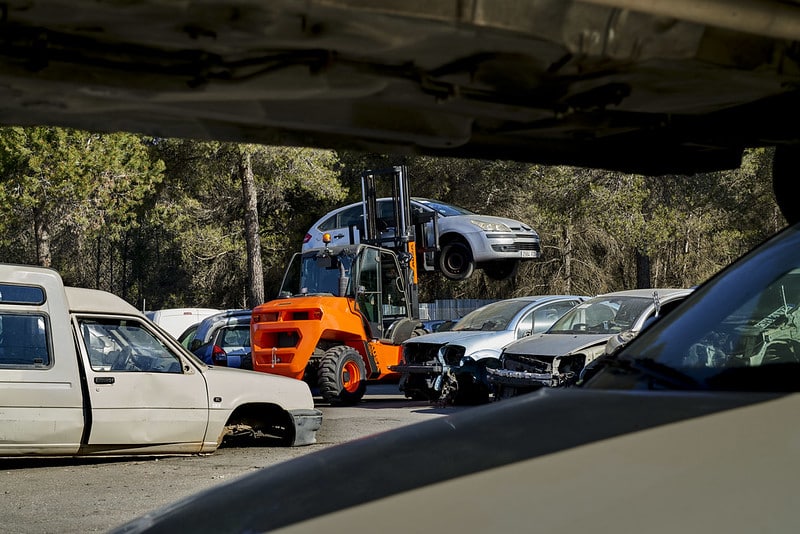

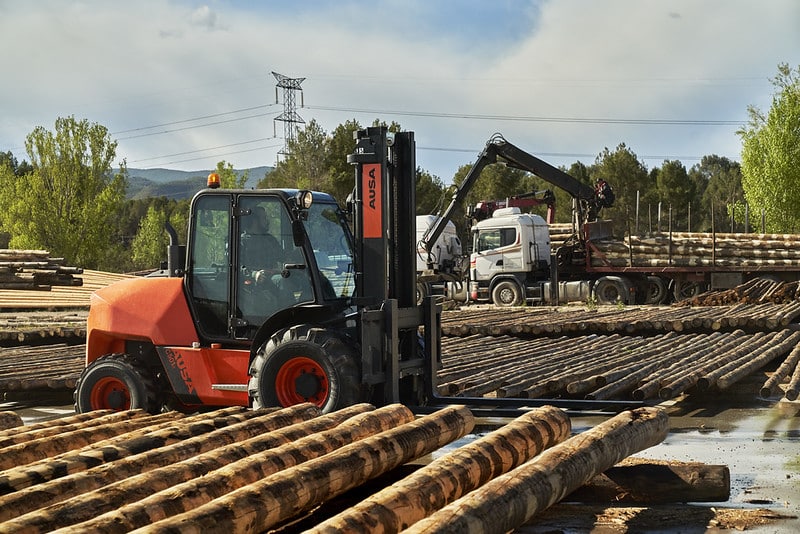

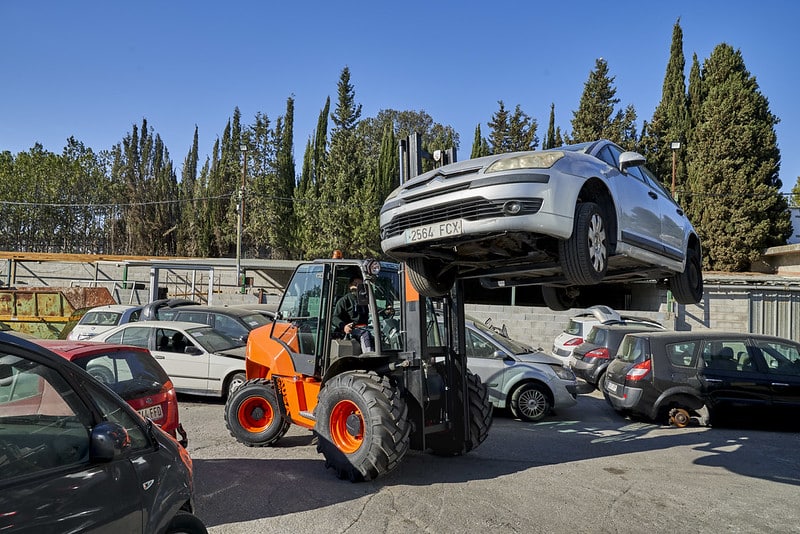

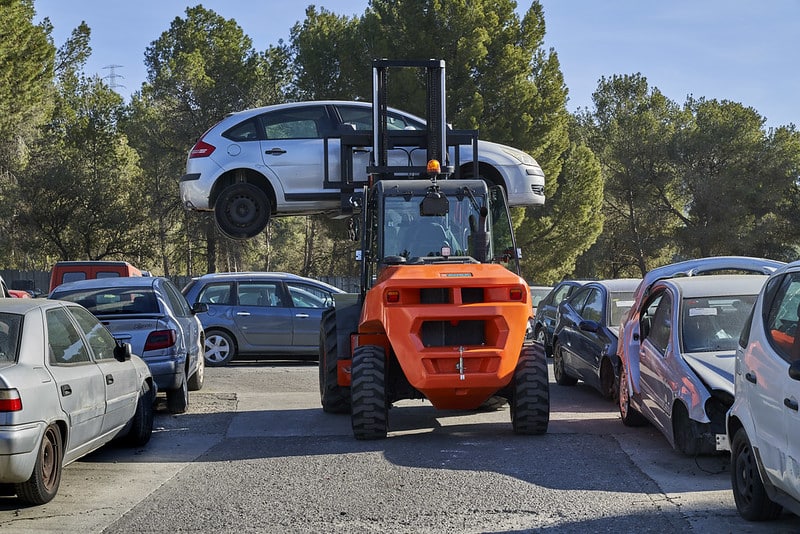

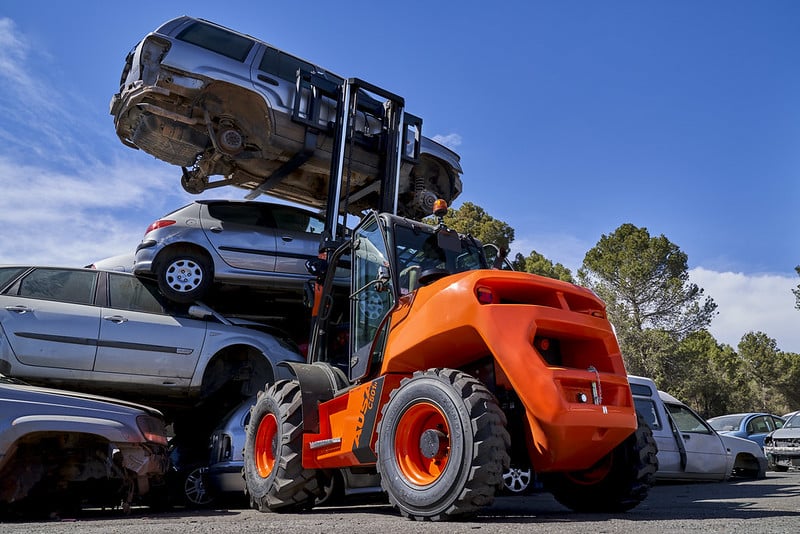

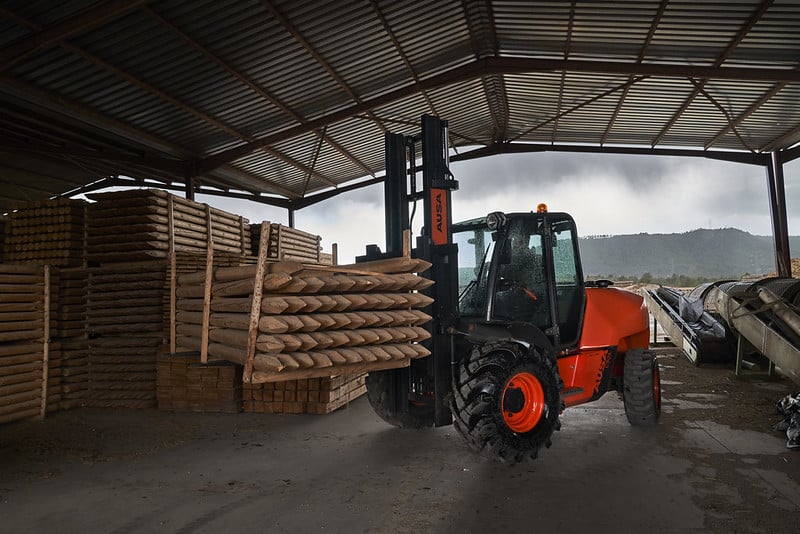

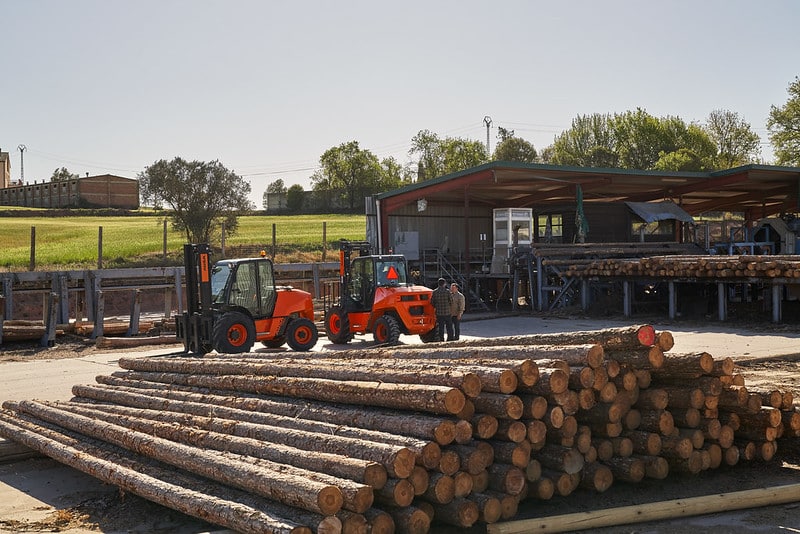

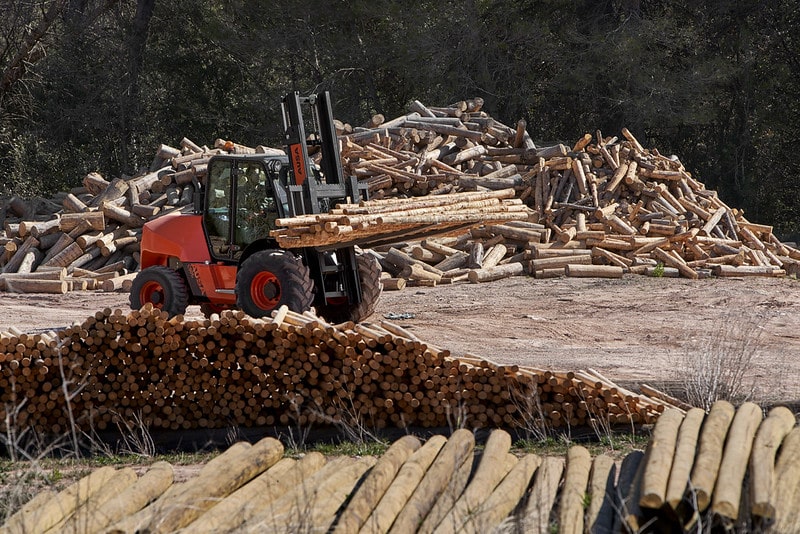

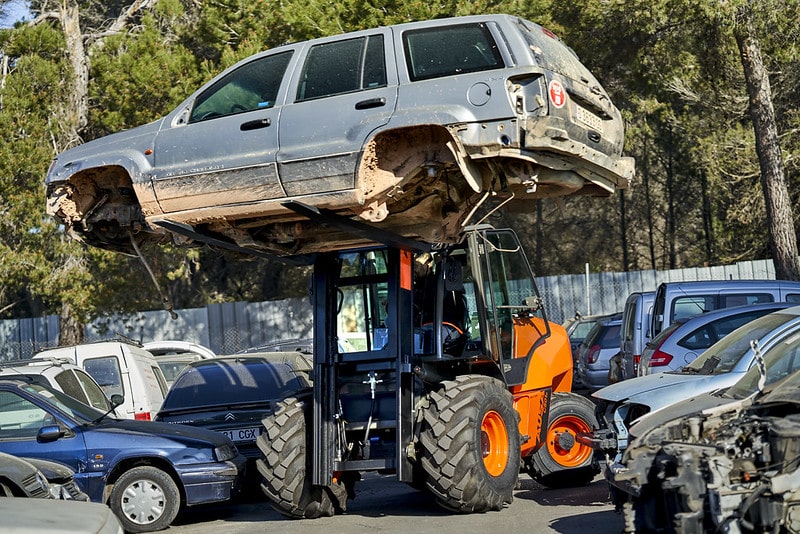

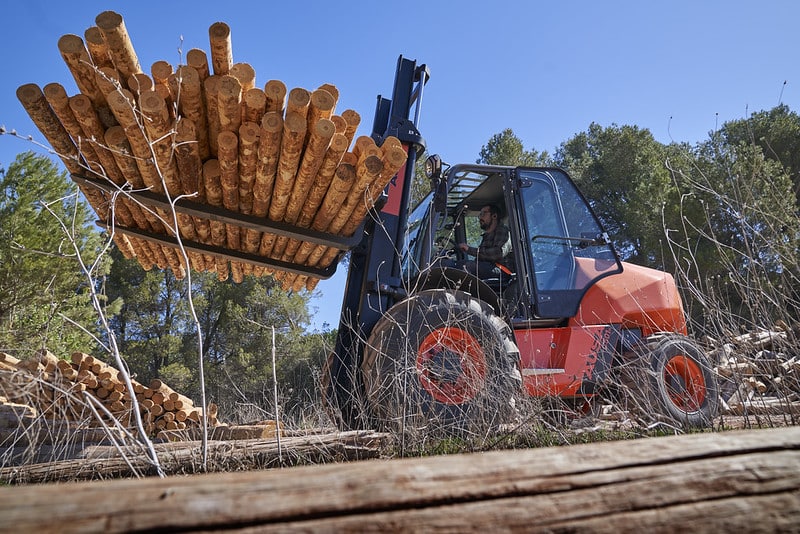

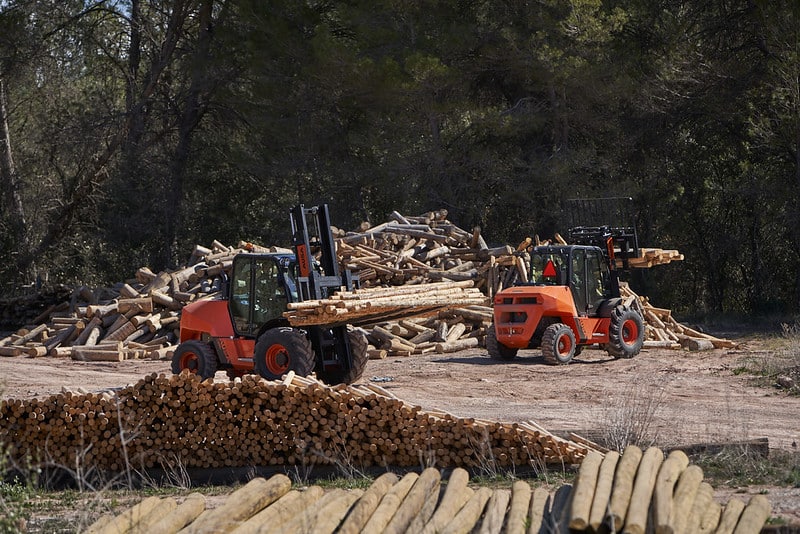

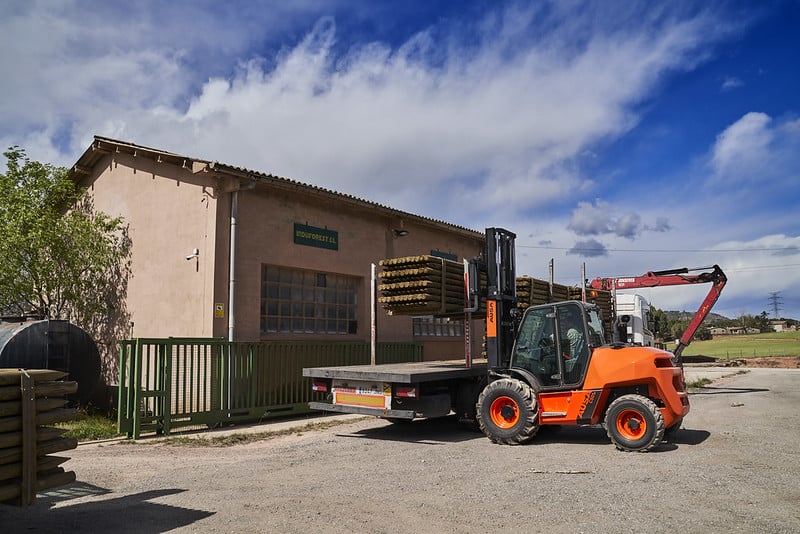

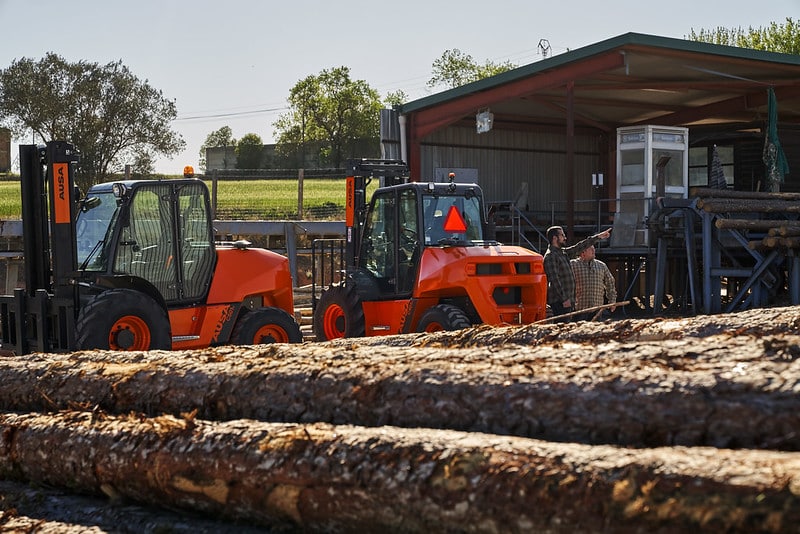

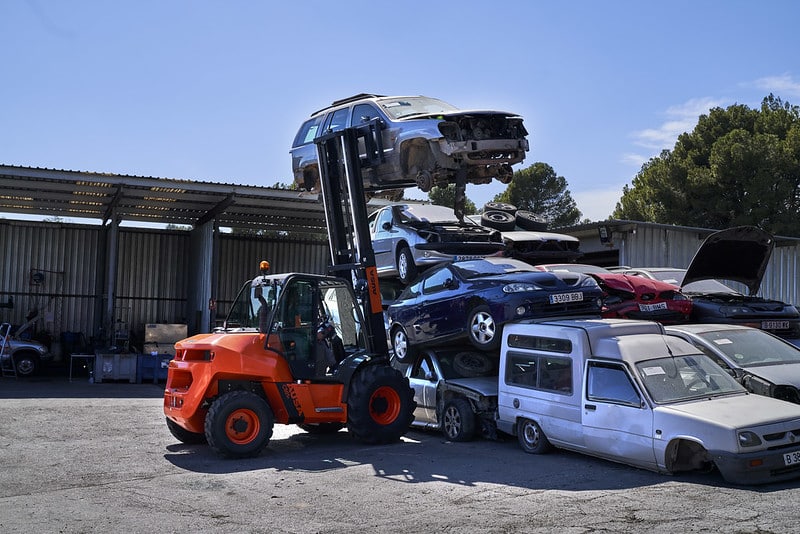

Suitable for handling loads on the toughest terrains. The C501H is the most advanced all-terrain forklift with a 5000 kg (11,000 lb) payload available on the market.
Access all of the information in real time from a digital screen next to the steering wheel: speed, temperature, alarms, sensors, etc. You can interact with it using the cab’s joystick and run self-diagnostics on the unit.
Make savings with Eco Mode, the system that automatically controls the engine’s speed to offer the greatest power with the lowest consumption and the lowest emissions.
Experience 360º visibility from the driver’s cab, with a 30% increase in outside visibility compared to the previous model.
Additionally, with the Hill Holder system, the forklift remains fully stationary on any slope when you take your foot off the accelerator.

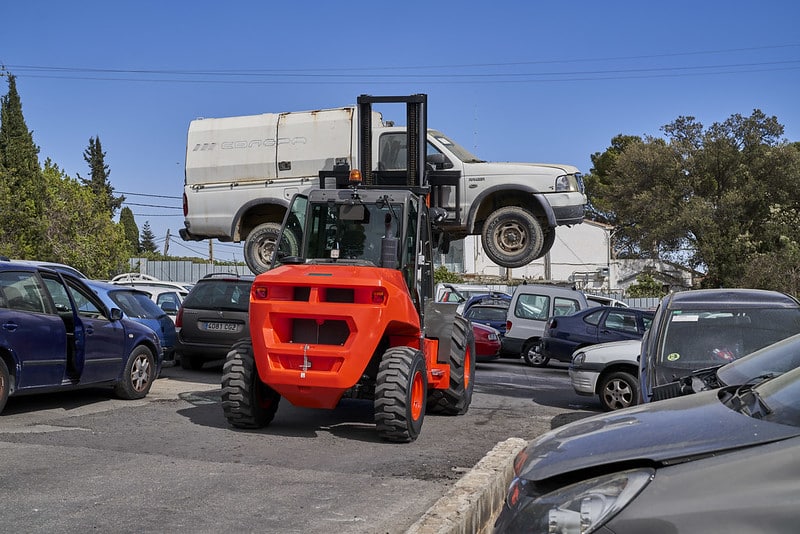

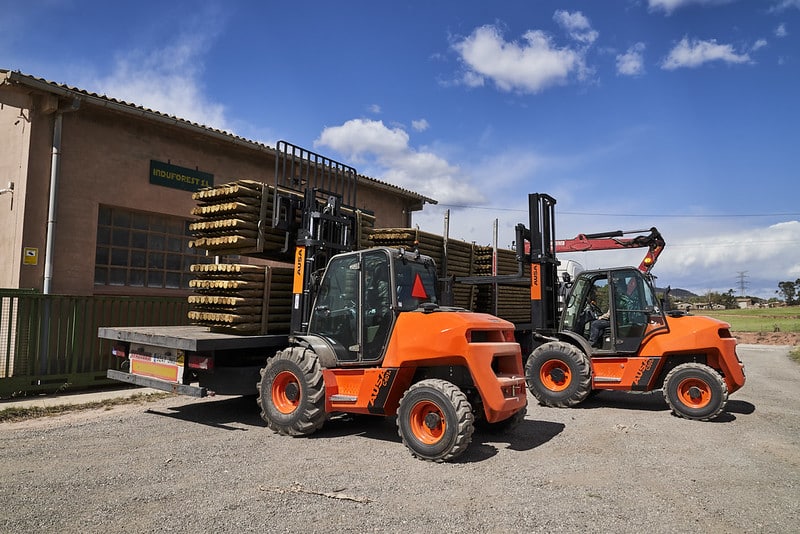

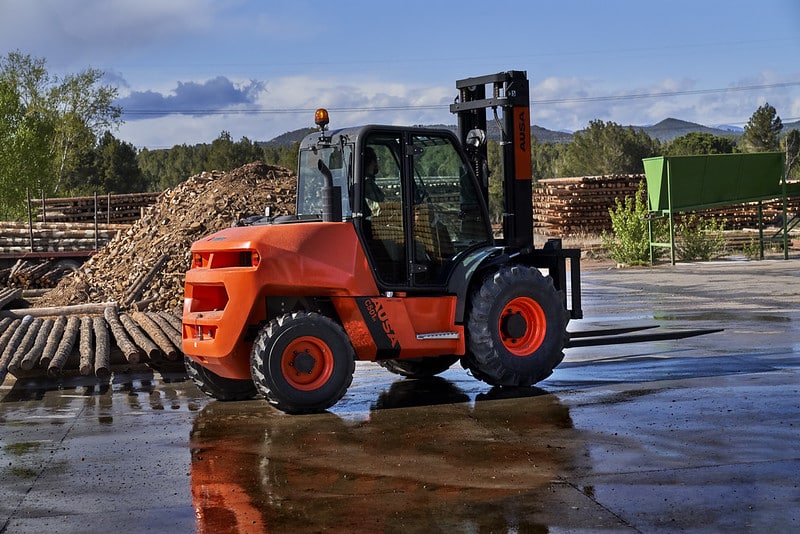

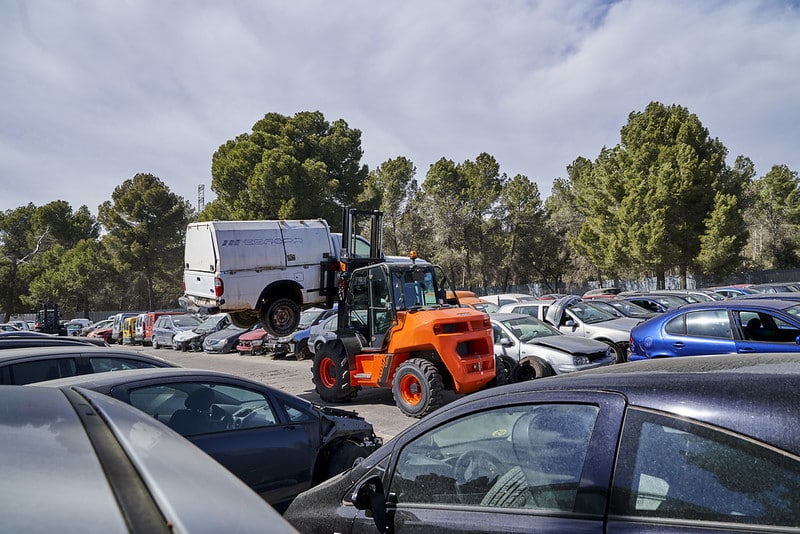

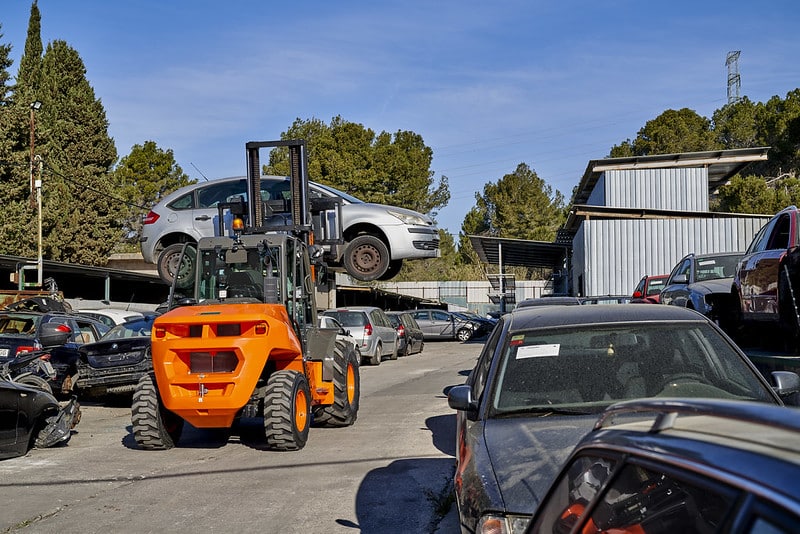

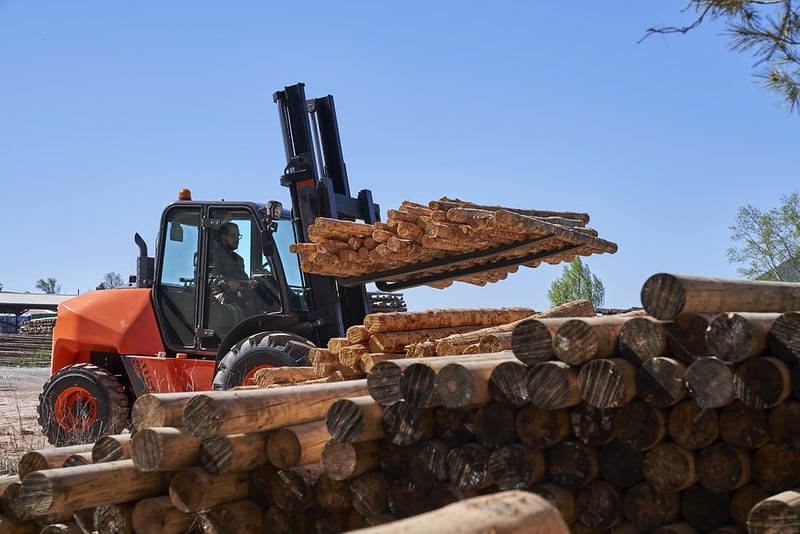

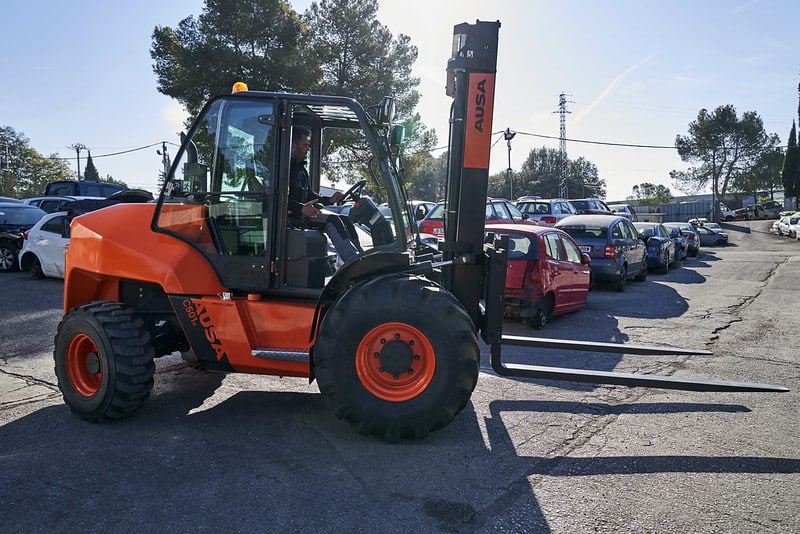

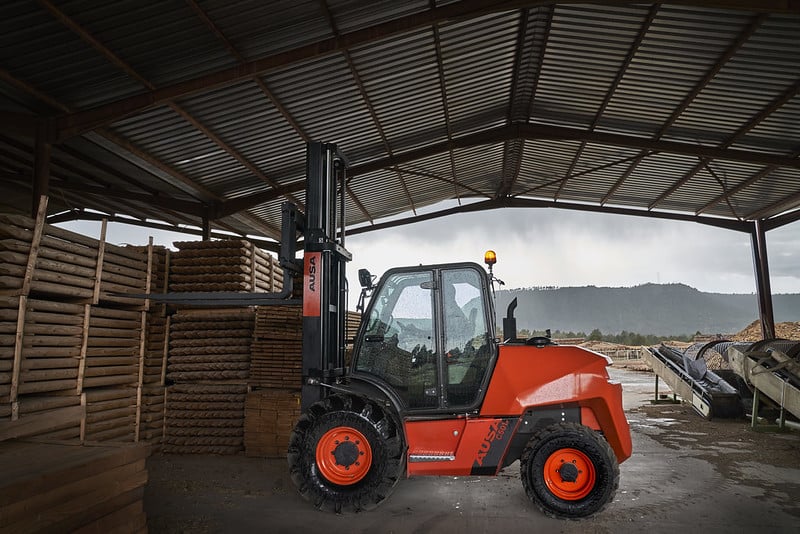

More Images & Videos
Technical Information
General
| Load capacity | 5000 kg |
| Load capacity to 500 mm (20 in) | 5000 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 7670 kg |
| Transmission | Hydrostatic |
| Maximum lift | 5450 mm |
Engine
| Brand | Deutz |
| Model | TD3.6 |
| Power | 55 kW |
| Torque | 340@1600 |
| No. of cylinders | 4 |
| Emissions | Stage V |
| Noise level (LwA) | 104 dB(A) |
Driving
| Max. speed | 20 km/h |
| Maximum gradient | 35 % |
| External turning radius | 4410 mm |
| Traction | 4×4 FullGrip |
| Tyres | 18-19.5 12-16.5 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 59 l/min |
| Working pressure | 235 bar |
Tank capacity
| Fuel | 117 l |
| Hydraulic system | 114 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative, sealed, multi-disc |
Mast
| Fork carriage | FEM 4 |
| Carriage width | 1660 mm |
Equipment
Driving Position

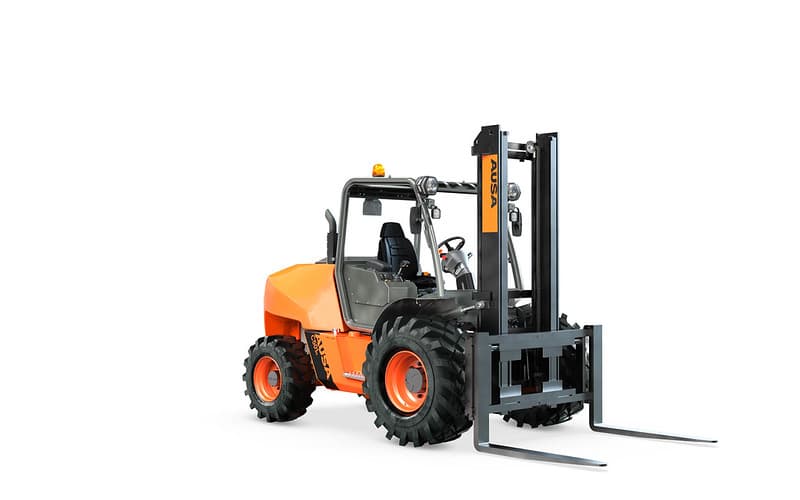

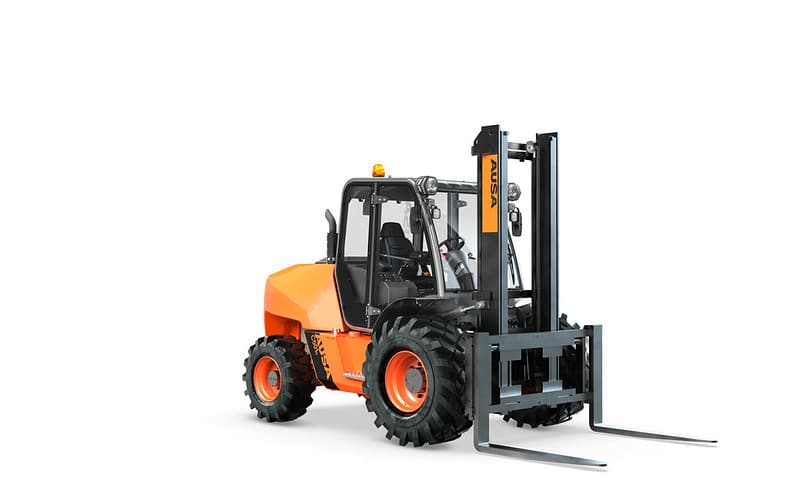

Open cab, Tilting cab with assisted lift
Masts
3.70 m triplex mast
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Hill Holder – hill-start assist, Negative brake
Lighting & Driving
Rear-view mirrors
Comfort

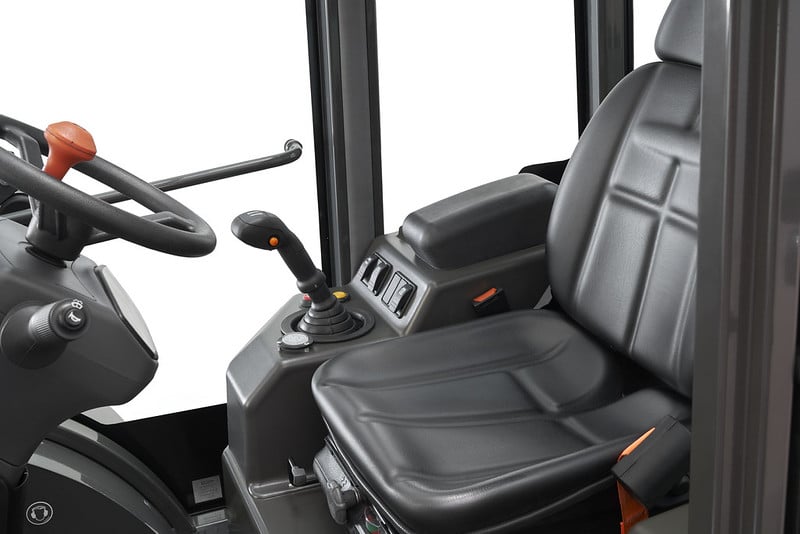

Adjustable ergonomic seat, All-in-one joystick, Extra comfort seat, fully adjustable, Steering wheel with adjustable tilt and reach
Advanced equipment
ECO Mode system, Digital display, Hydrostatic transmission, Limited-slip differential on both axles, Second-generation FullGrip® (4WD), Inching pedal
Accessories
Water separator diesel filter
Forks
1,200 mm forks, 1,660 mm type FEM IV fork carriage, Built-in side shifter
