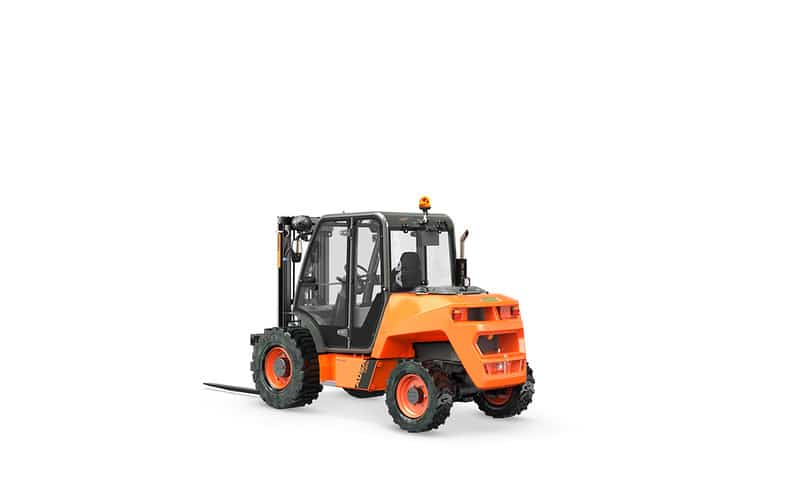

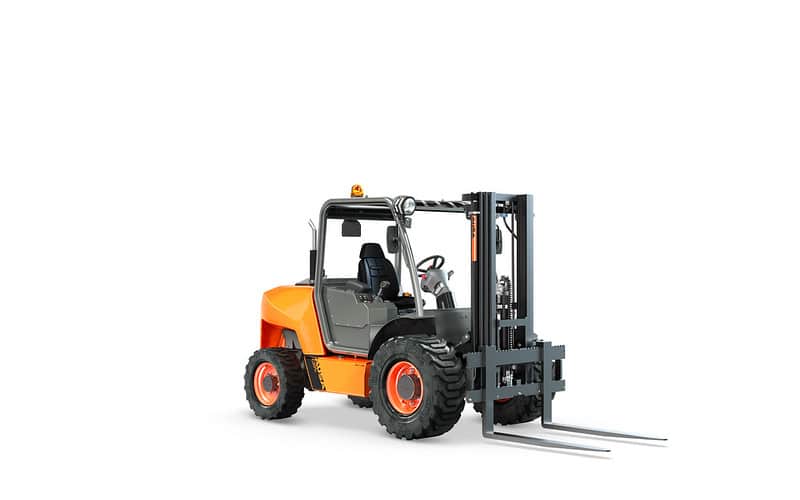

C201H

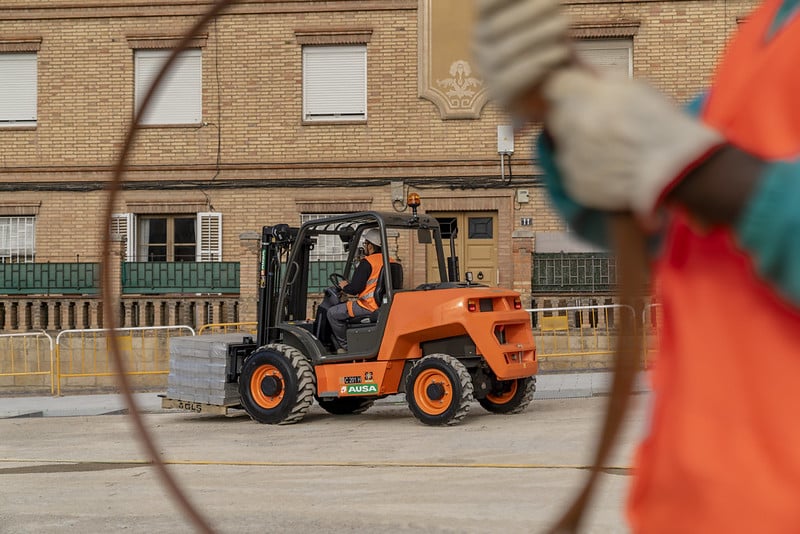

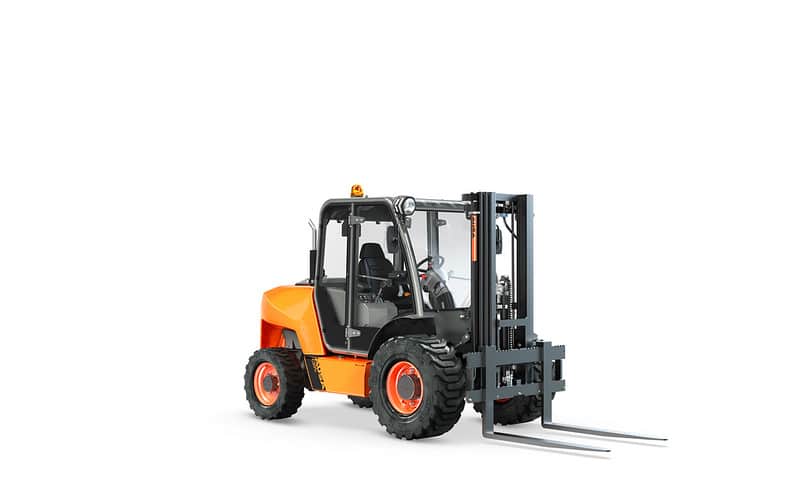

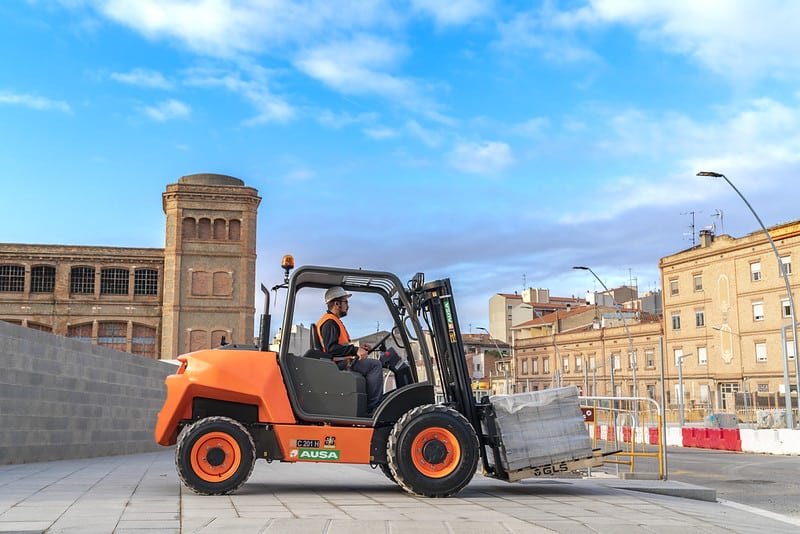

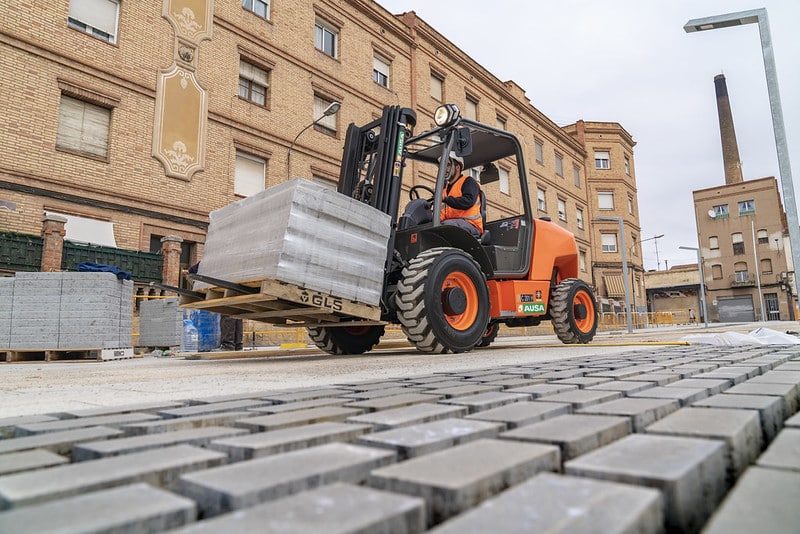

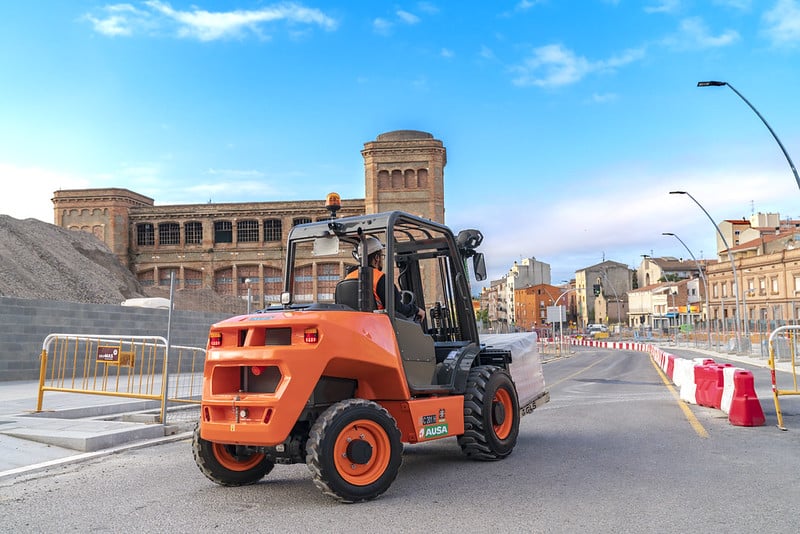

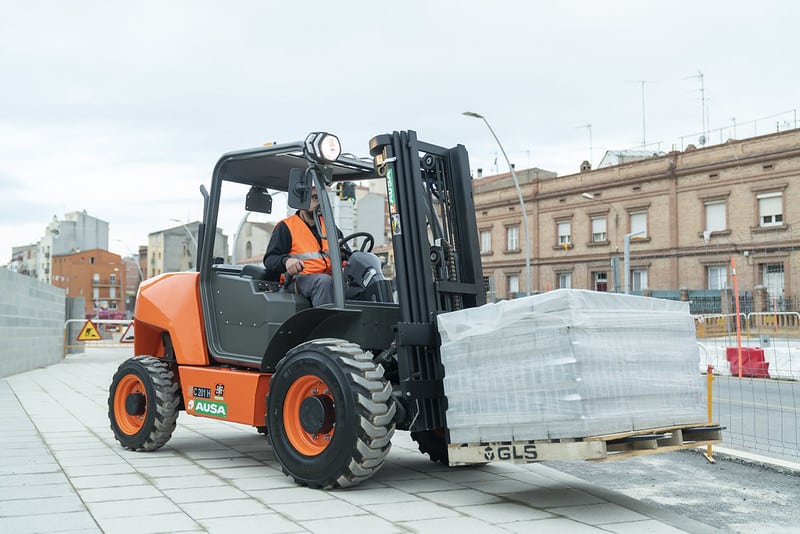

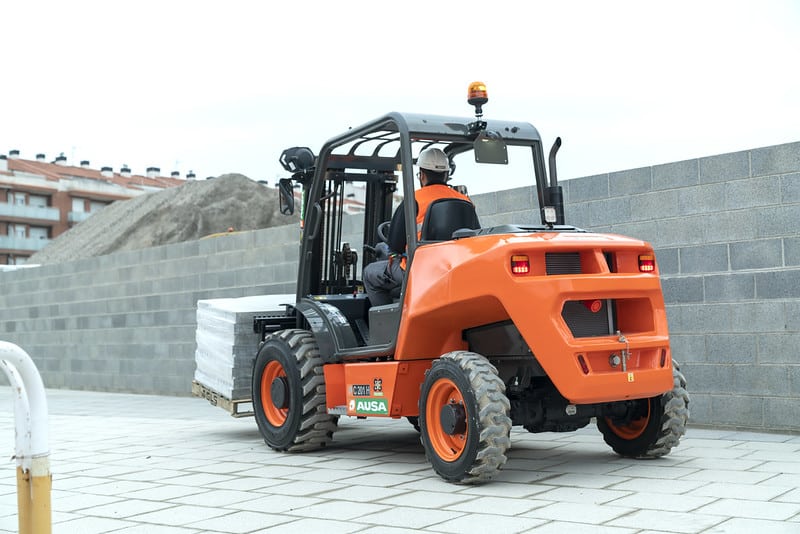

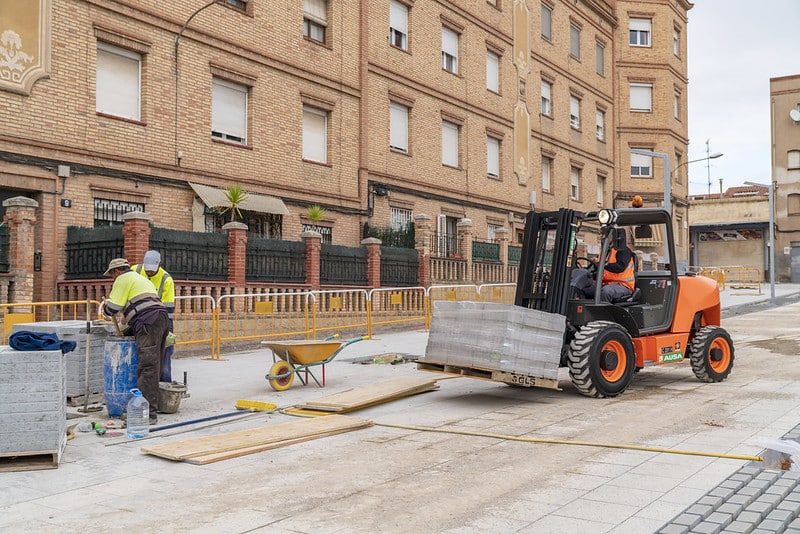

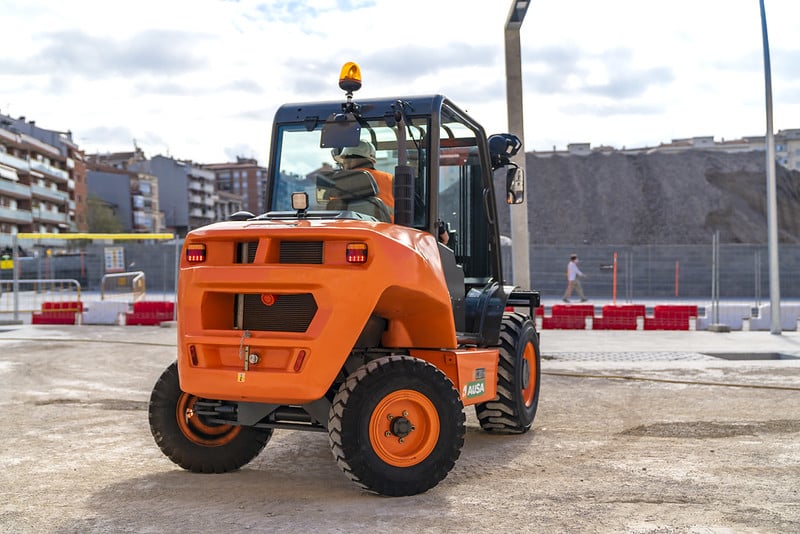

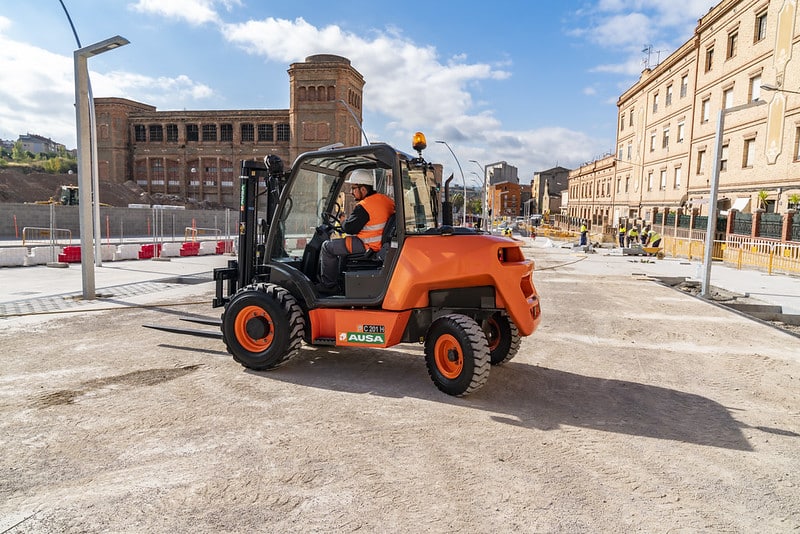

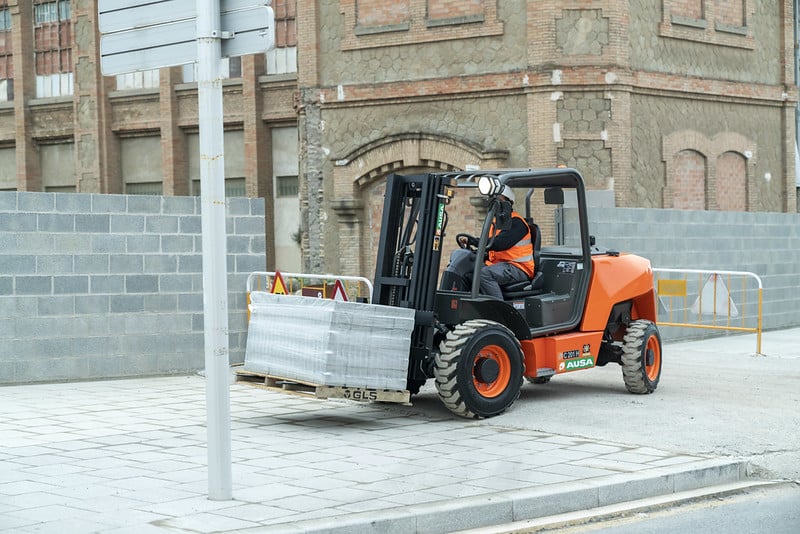

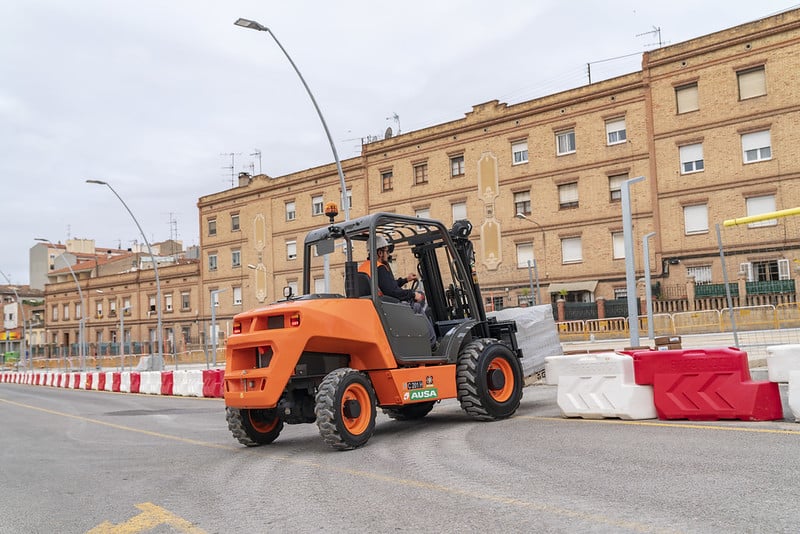

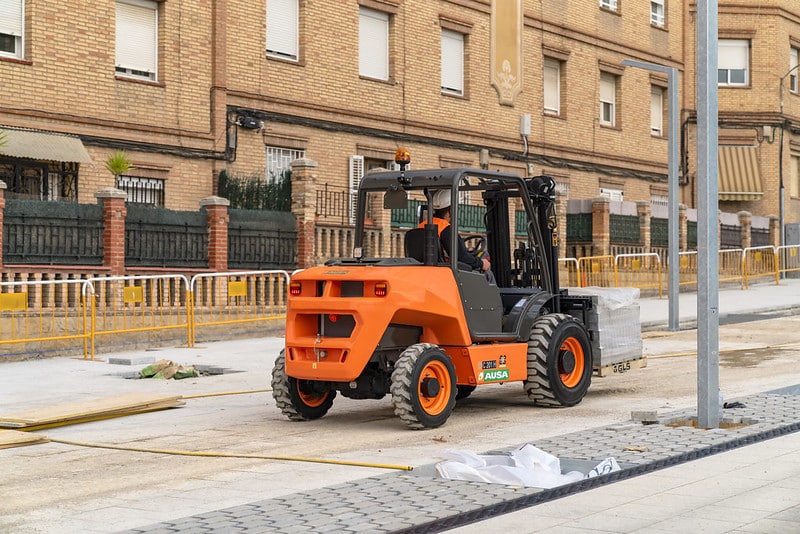

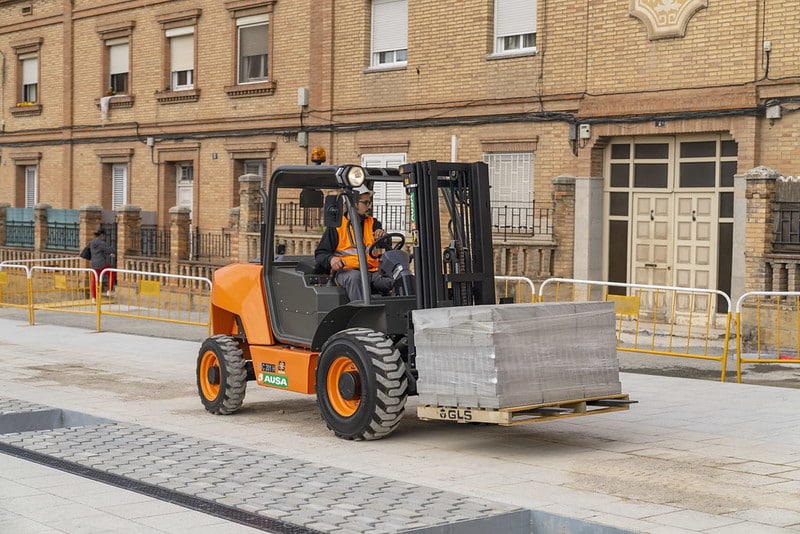

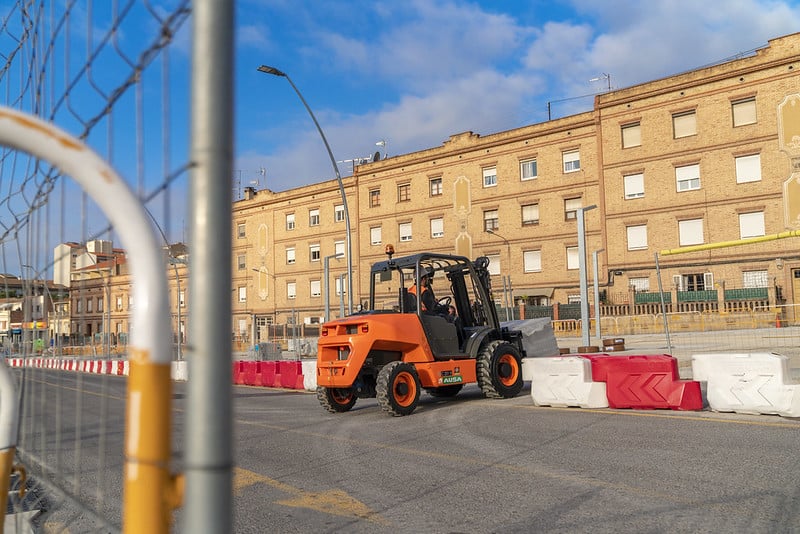

The C201H all-terrain forklift has a 2000 kg (4,000 lb) payload and it is designed entirely for urban use.

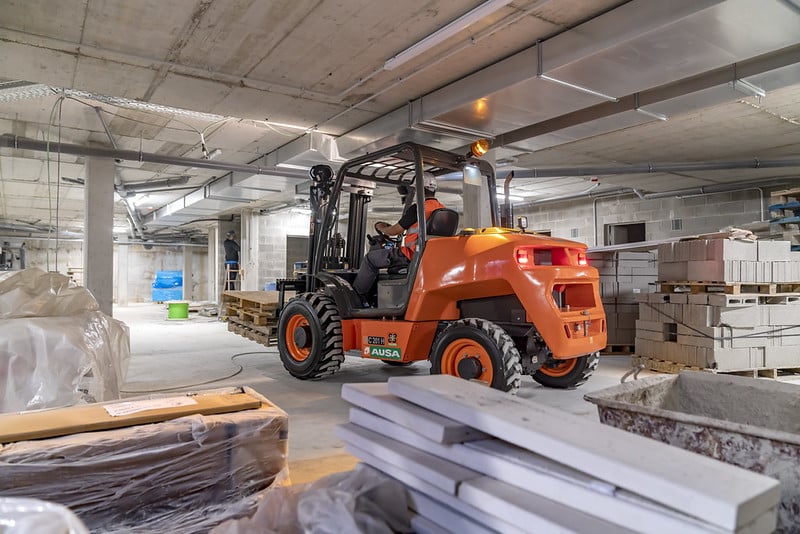

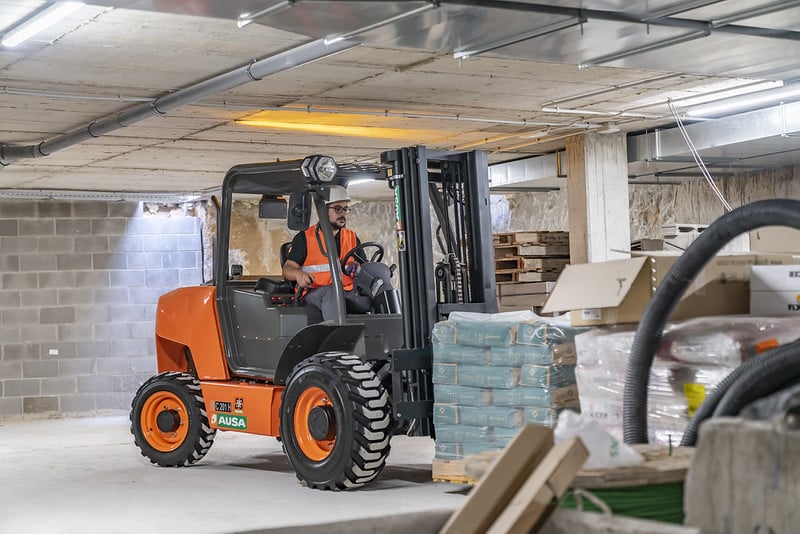

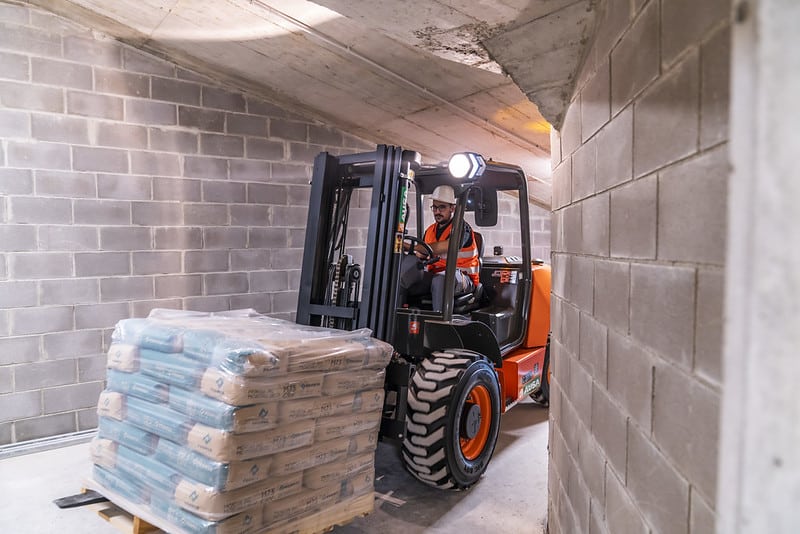

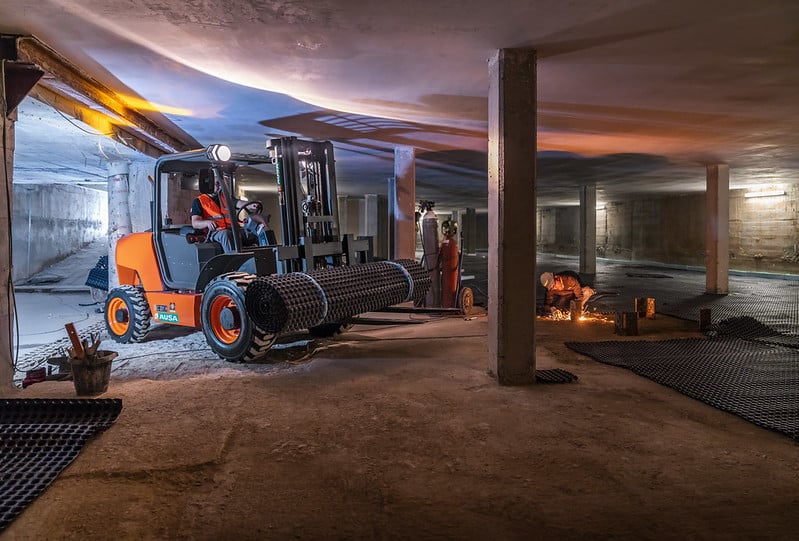

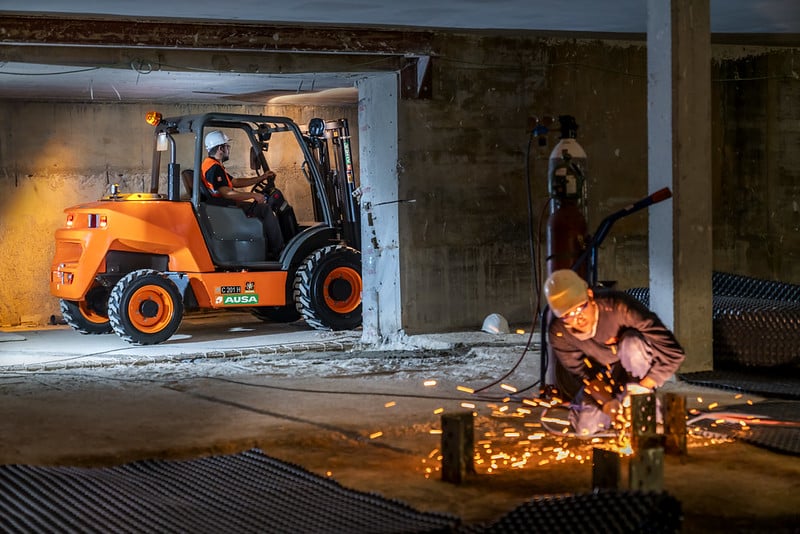

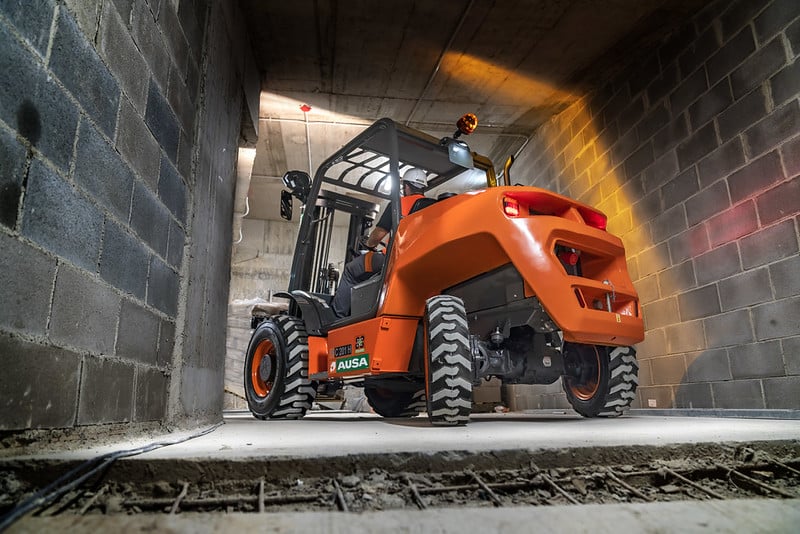

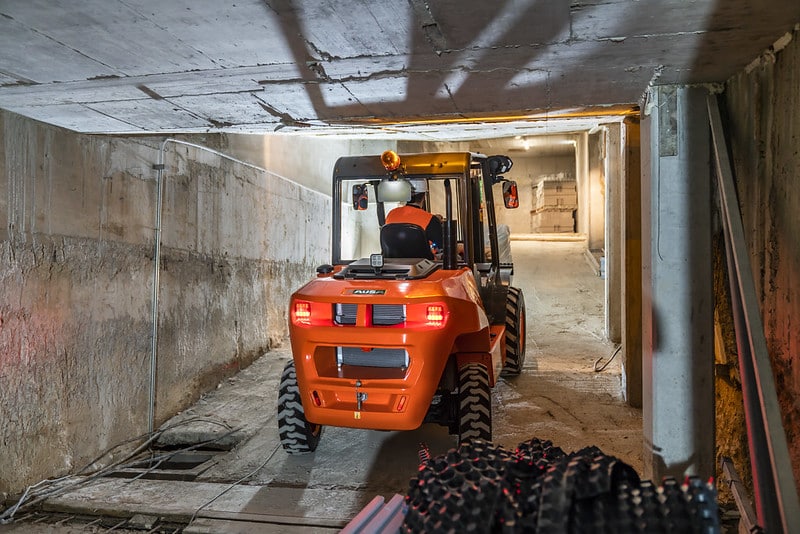

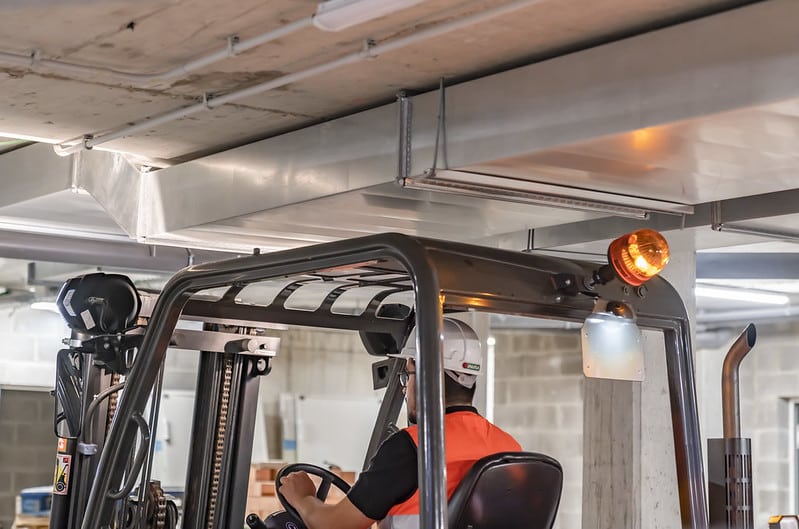

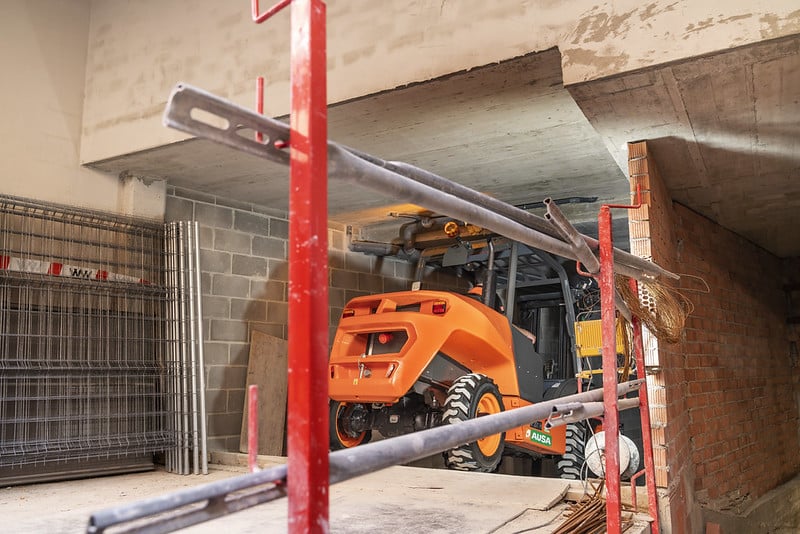

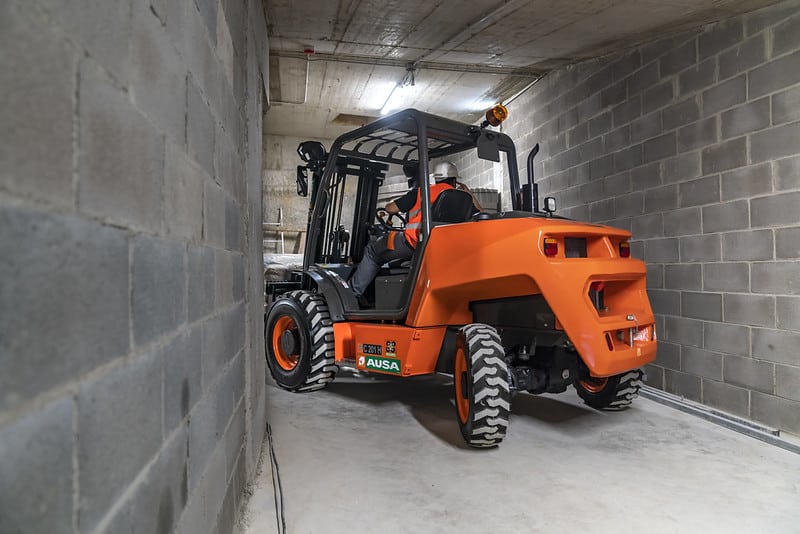

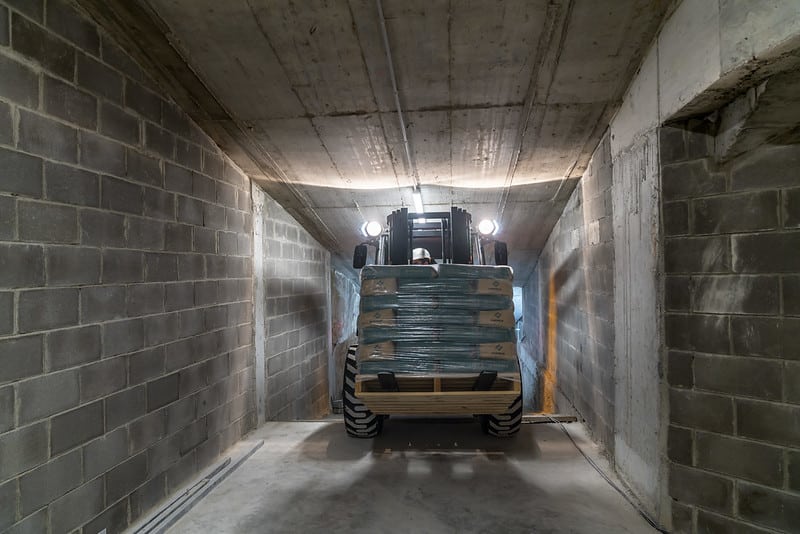

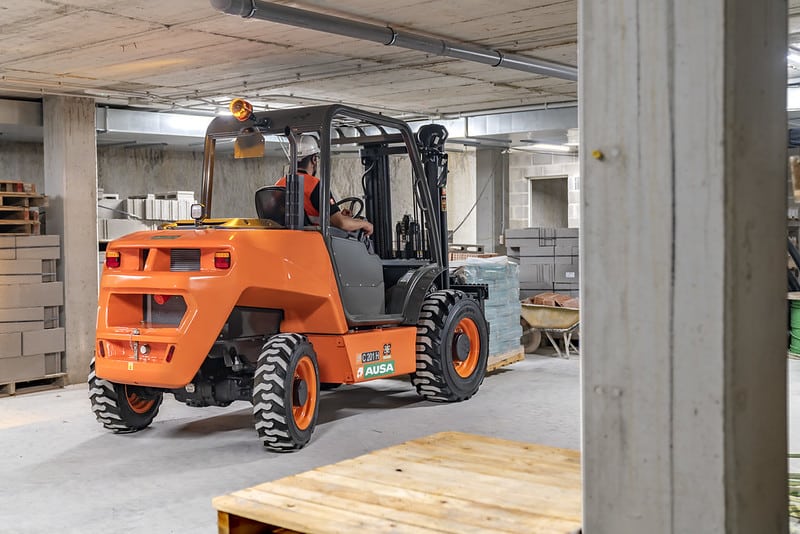

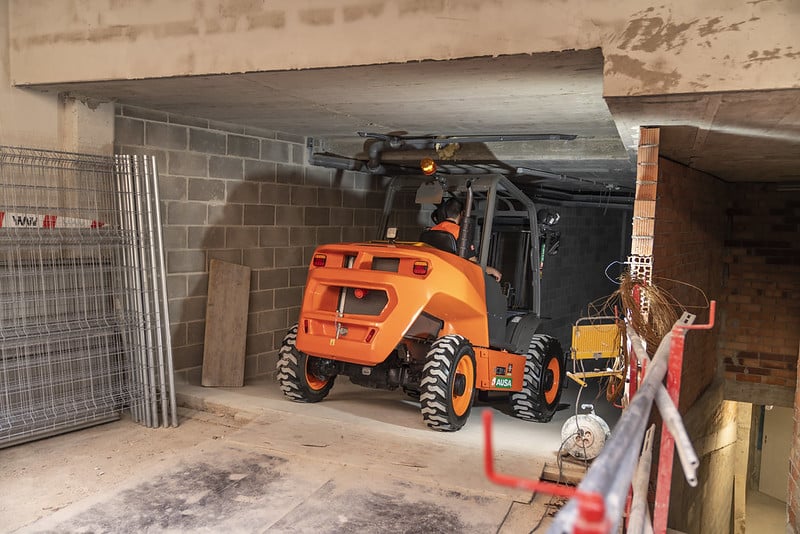

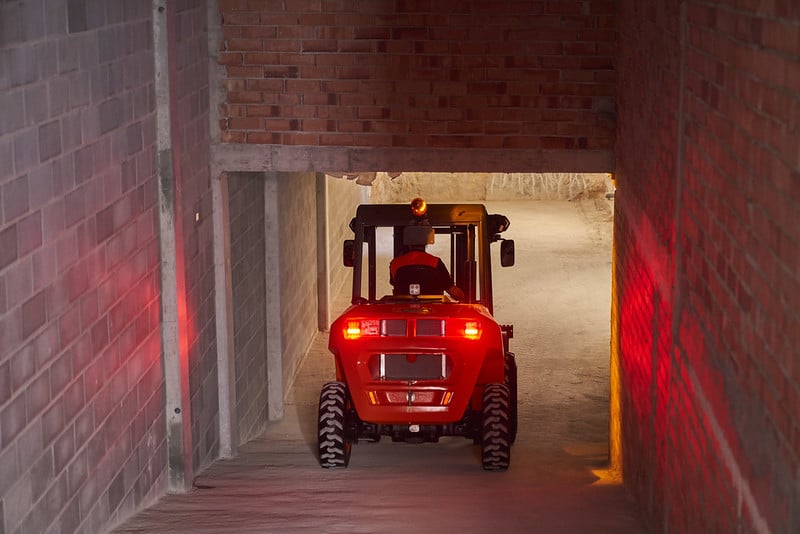

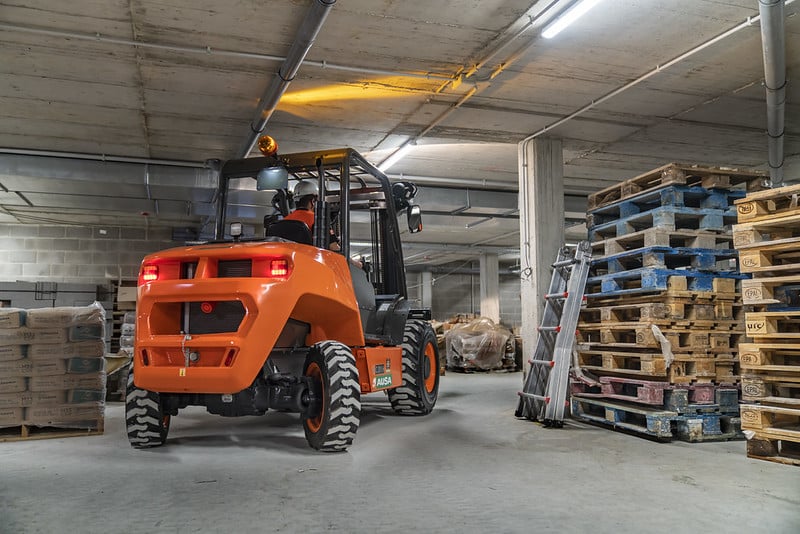

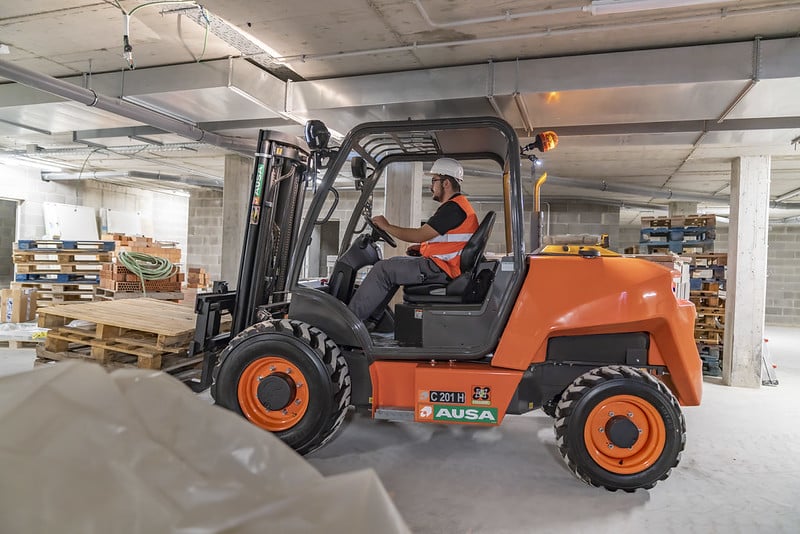

At just 2.09 m (82,28 in)ย high, it is perfect for entering and leaving car parks and enclosed spaces with low doors. Additionally, it is highly manoeuvrable, so it can move around nimbly in any space.
Thanks to its hydrostatic drive, maximum comfort and safety are assured. The transmission brake prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal.
Compactness

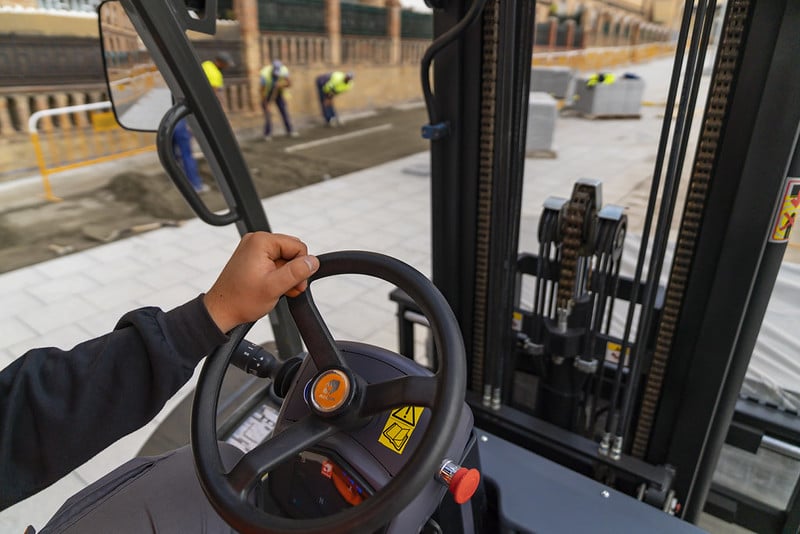

Joystick all in one hand
Easy to maneuver
High performance
Low maintenance costs

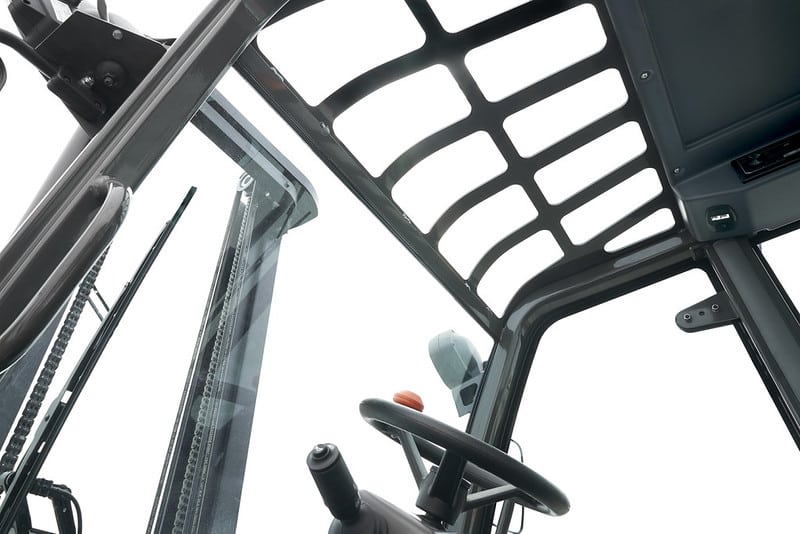

Tilting cab
More Images & Videos
Technical Information
General
| Load capacity | 2000 kg |
| Load capacity to 500 mm (20 in) | 2000 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 3635 kg |
| Transmission | Hydrostatic |
| Maximum lift | 5400 mm |
Engine
| Brand | Kubota |
| Model | D1703-M-DI-E4 |
| Power | 18.5 kW |
| Torque | 97,4@1500 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 104 dB(A) |
Driving
| Max. speed | 17 km/h |
| Maximum gradient | 40 % |
| External turning radius | 3020 mm |
| Traction | 4×4 FullGrip / 4×2 |
| Tyres | 12-16,5 27×8,5-15 / 7.00-12 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 37 l/min |
| Working pressure | 185 bar |
Tank capacity
| Fuel | 62 l |
| Hydraulic system | 51 l |
Brakes
| Service | Hydraulic, sealed, multi-disc |
| Parking | Negative, sealed, multi-disc |
Mast
| Fork carriage | FEM 2 |
| Carriage width | 1260 mm |
Equipment
Driving Position
Open cab, Tilting cab with assisted lift
Masts
3.30 duplex mast
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear, Emergency stop, Negative brake
Lighting & Driving
Rear-view mirror
Comfort

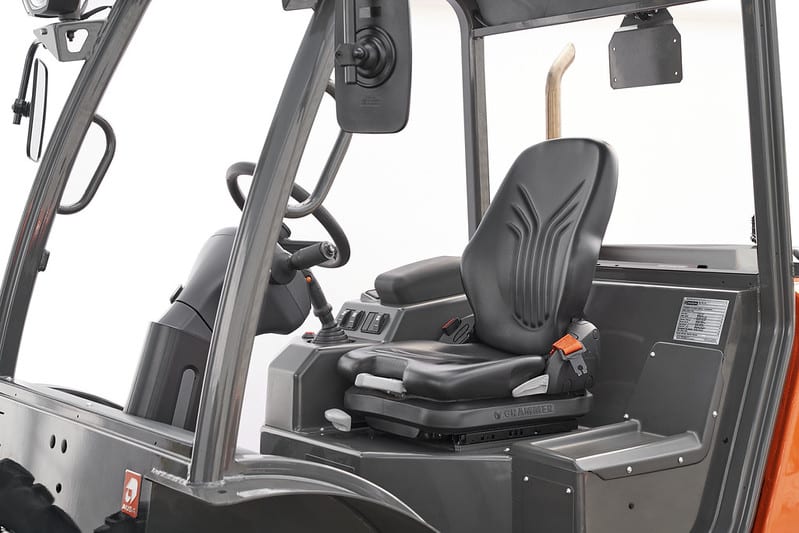

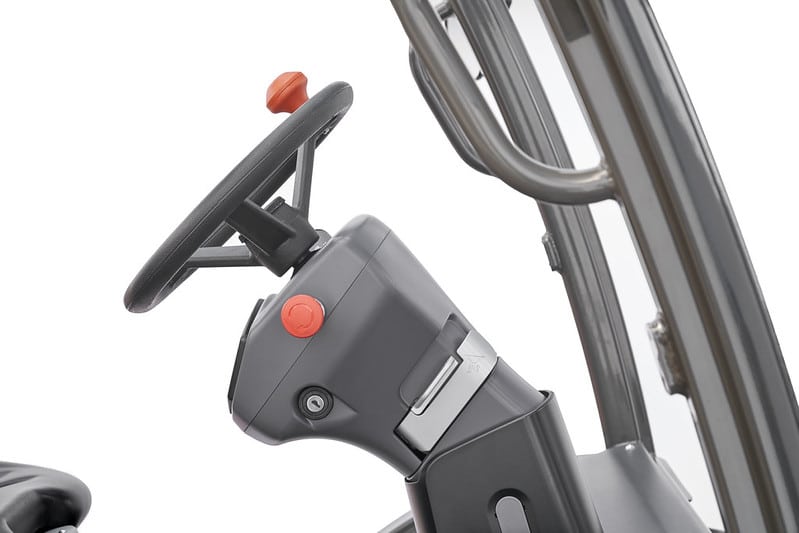

Adjustable ergonomic seat, All-in-one joystick, Armrest, Steering wheel with adjustable tilt and reach
Advanced equipment

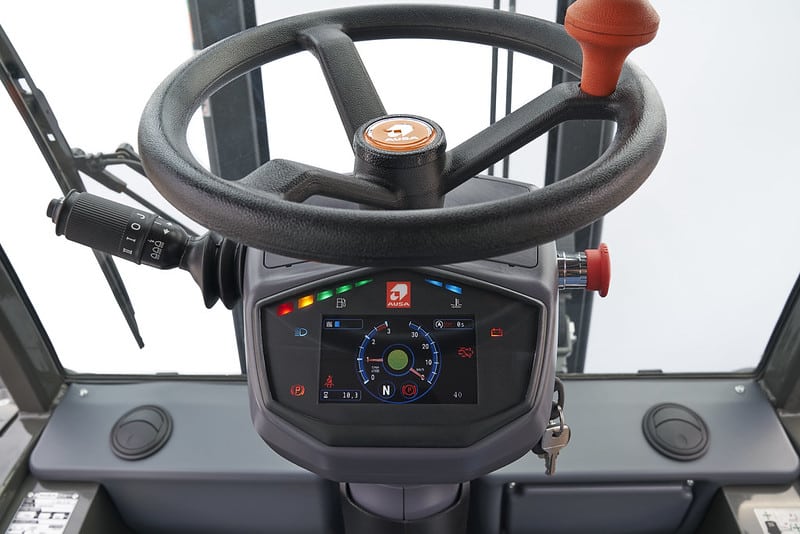

Digital display, Hydrostatic transmission, Limited-slip differential on both axles, Inching pedal
Forks
1,200 mm forks, 1,260 mm type FEM IIB fork carriage
