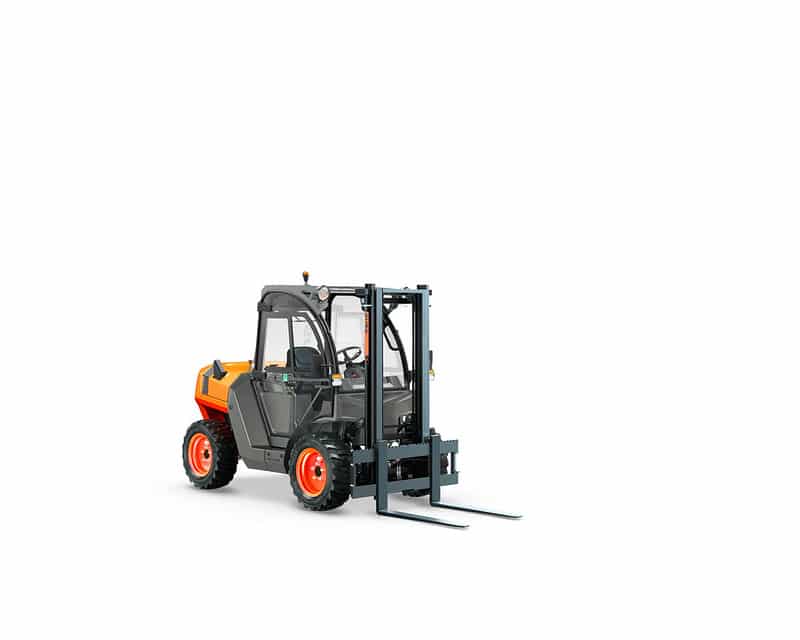

C151H

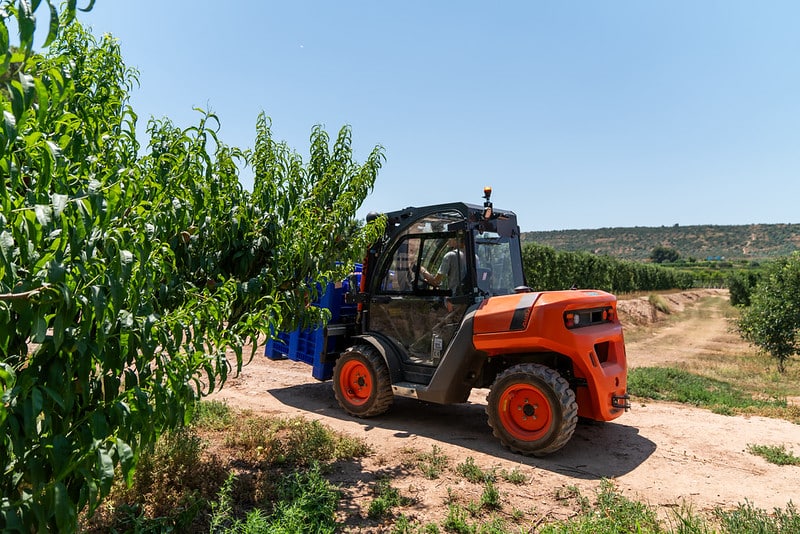

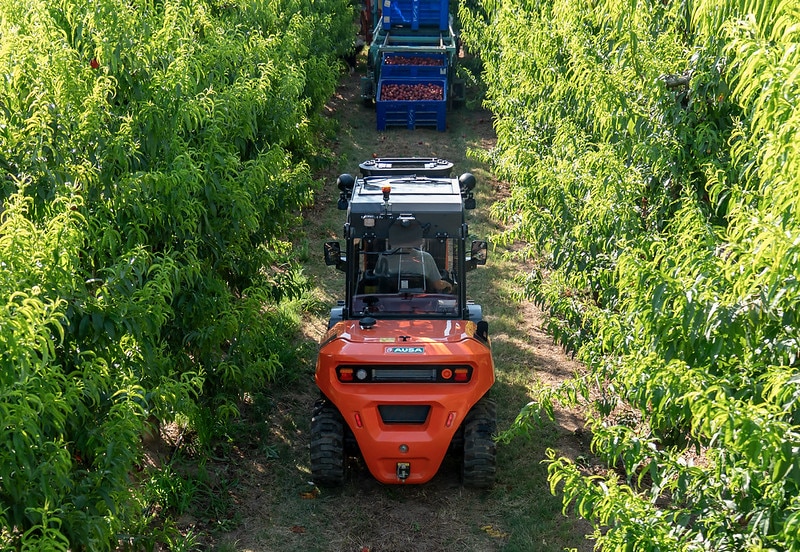

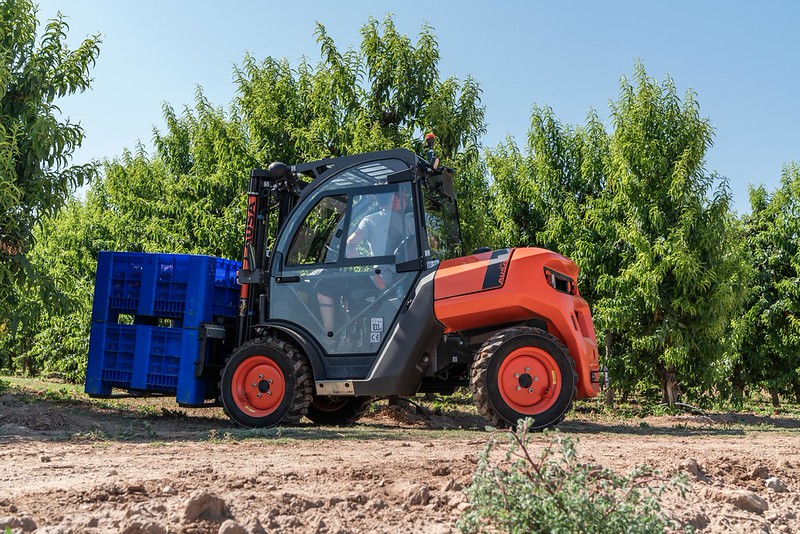

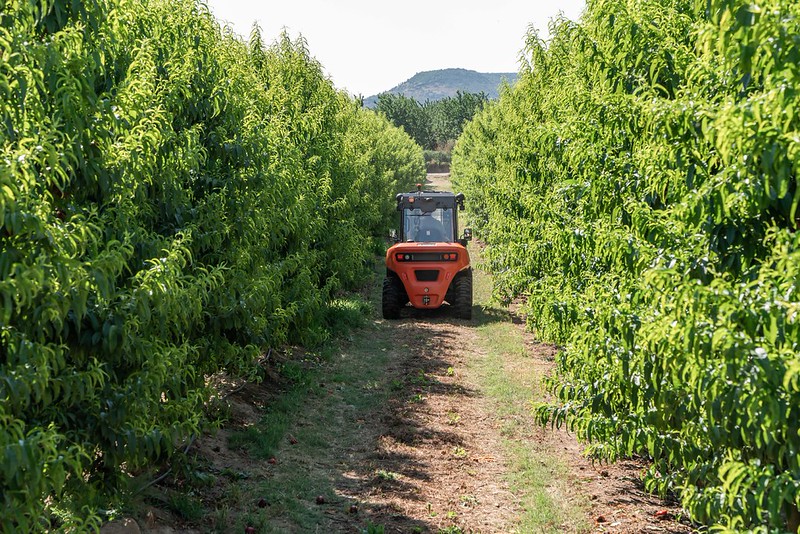

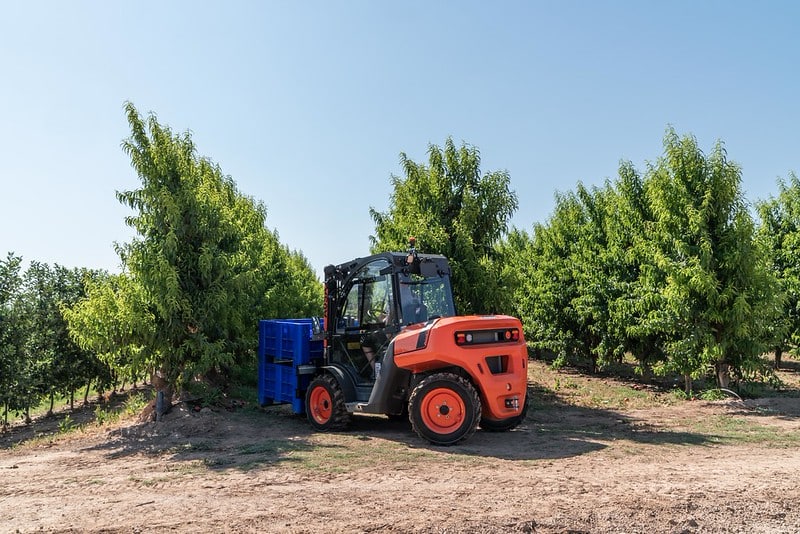

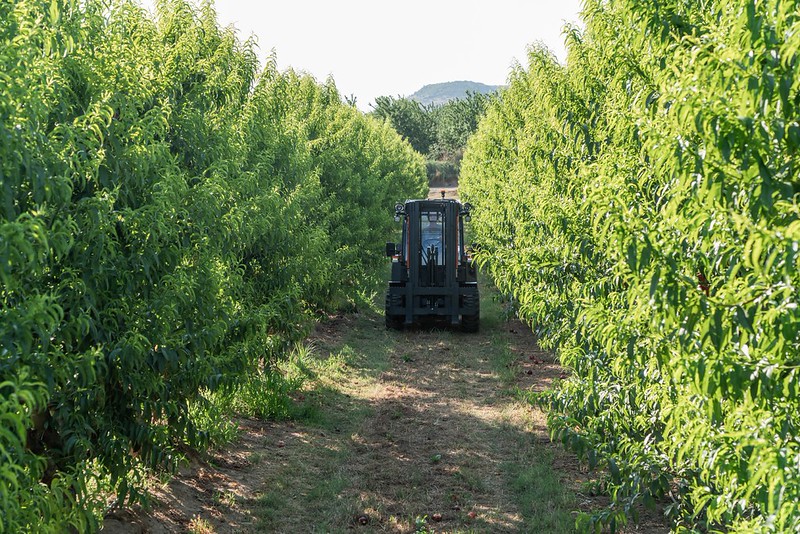

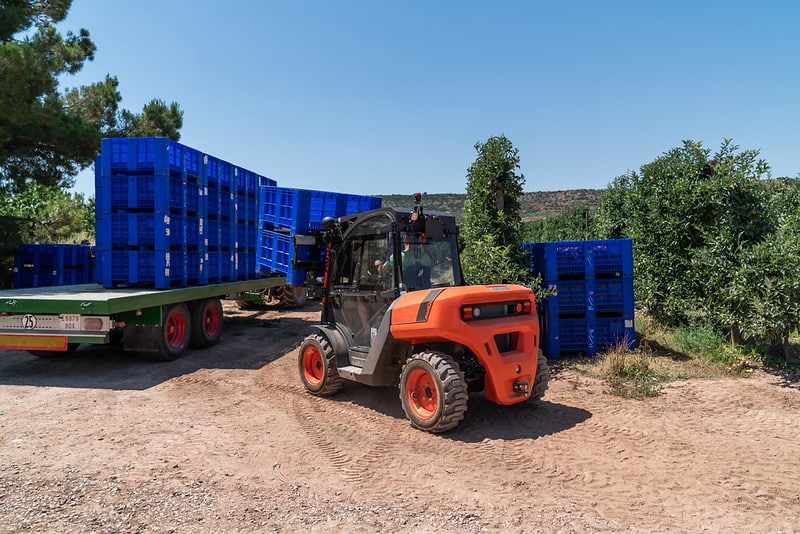

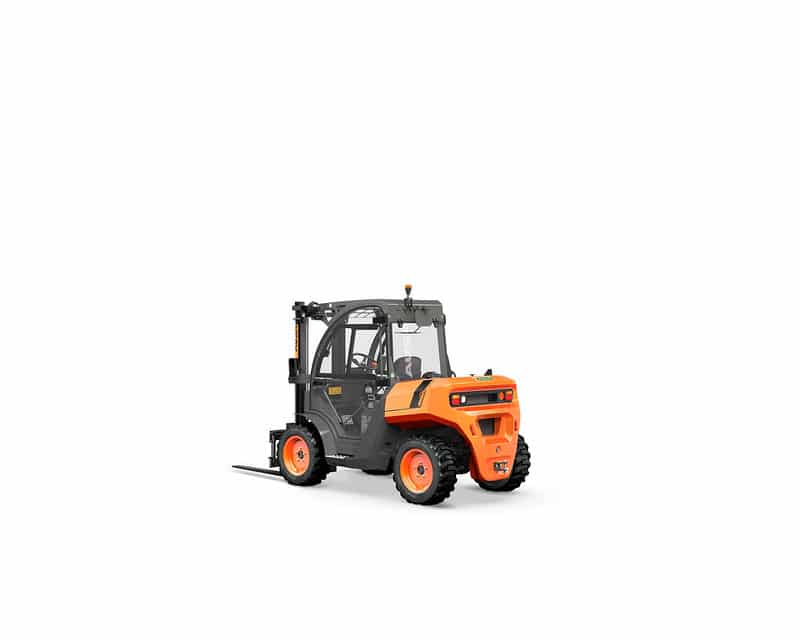

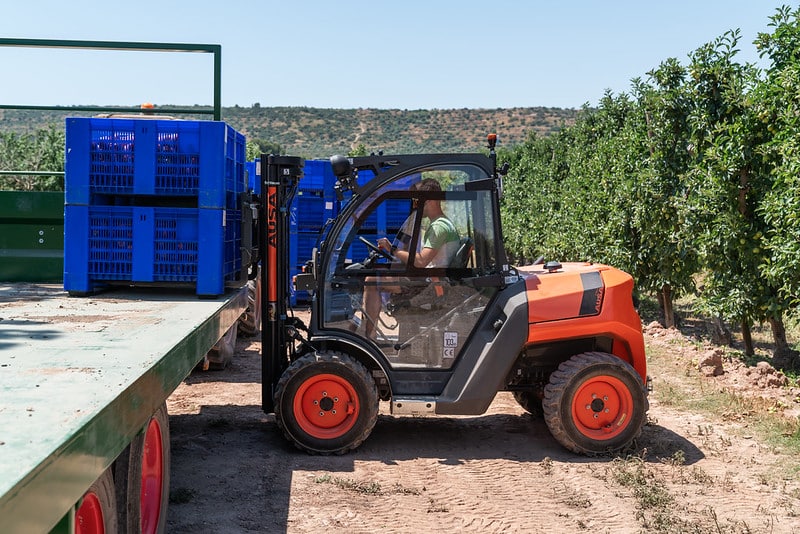

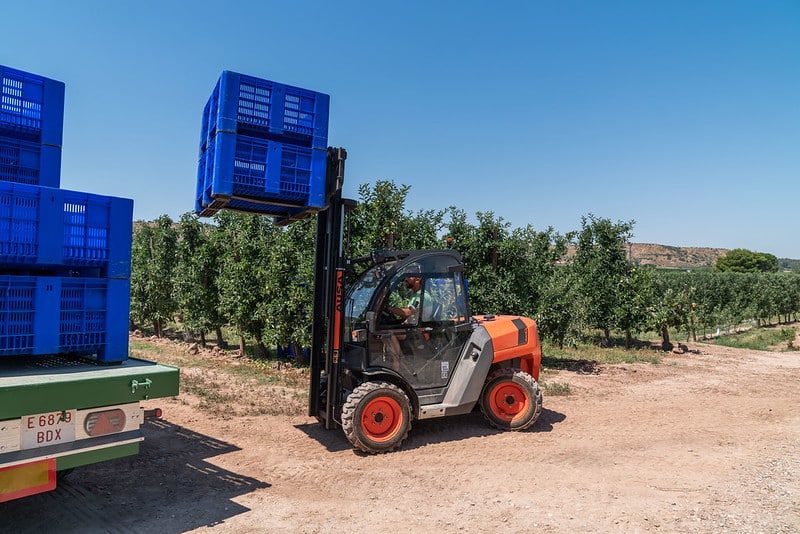

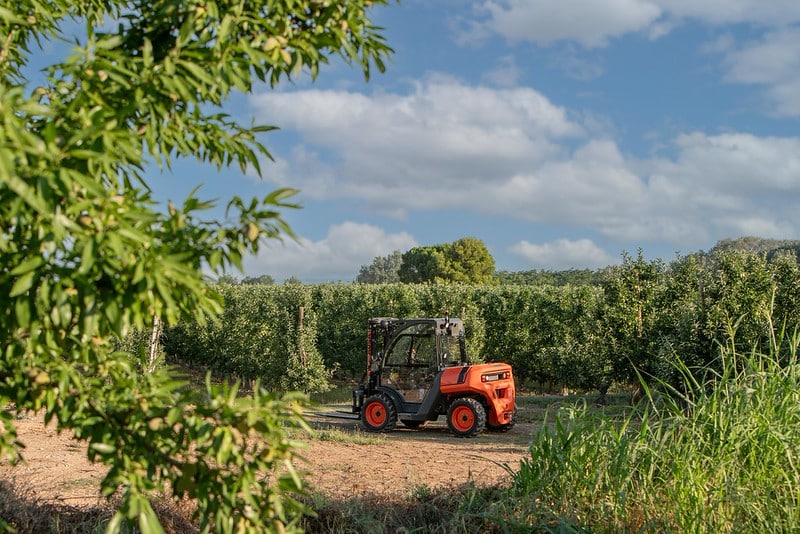

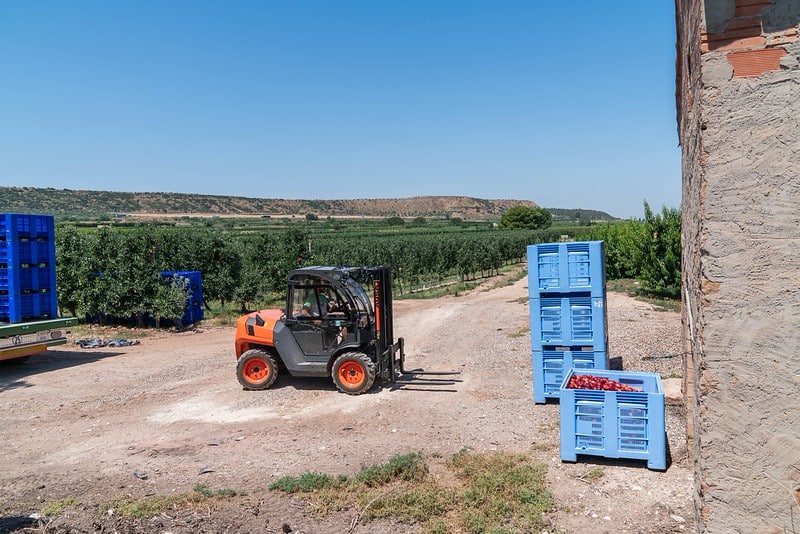

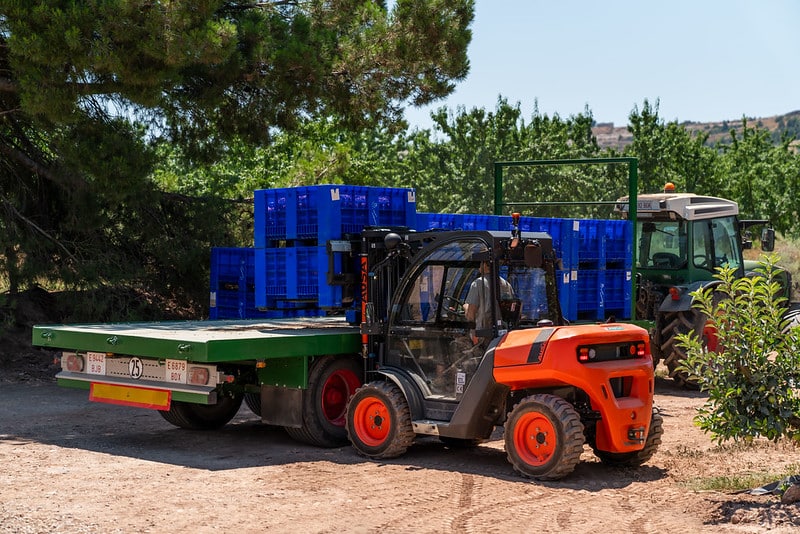

A super compact and maneuverable model that streamlines daily tasks. The front-wheel drive version offers a turning radius of only 2,690 mm (106 in), while the four-wheel drive has a radius of 3,380 mm (133 in). The 18.5 kW (24.8 hp) of power and on-demand 4WD FullGrip traction allow it to tackle slopes of up to 33%.
More Images & Videos
Technical Information
Engine 4×4
General
| Load capacity | 1500 kg |
| Load capacity to 500 mm (20 in) | 1500 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 2750 kg |
| Transmission | Hydrostatic |
| Maximum lift | 4000 mm |
Engine
| Brand | Kubota |
| Model | D1105 |
| Power | 18.5 kW |
| Torque | 71,5@2200 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 103 dB(A) |
Driving
| Max. speed | 18 km/h |
| Maximum gradient | 33 % |
| External turning radius | 3380 mm |
| Traction | 4×4 FullGrip® |
| Tyres | 27×10.50-15 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 34 l/min |
| Working pressure | 215 bar |
Tank capacity
| Fuel | 35 l |
| Hydraulic system | 40 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Mast
| Fork carriage | FEM 2B |
| Carriage width | 1260 mm |
Engine 4×2
General
| Load capacity | 1500 kg |
| Load capacity to 500 mm (20 in) | 1500 kg |
| Load capacity to 600 mm (24 in) | – |
| Empty weight | 2750 kg |
| Transmission | Hydrostatic |
| Maximum lift | 4000 mm |
Engine
| Brand | Kubota |
| Model | D1105 |
| Power | 18.5 kW |
| Torque | 71,5@2200 |
| No. of cylinders | 3 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level (LwA) | 103 dB(A) |
Driving
| Max. speed | 18 km/h |
| Maximum gradient | 32 % |
| External turning radius | 2690 mm |
| Traction | 4×2 |
| Tyres | 27×10.50-15 / 7.00-12 |
Hydraulic system
| Hydraulic circuit | Two gears pump |
| Flow rate | 34 l/min |
| Working pressure | 215 bar |
Tank capacity
| Fuel | 35 l |
| Hydraulic system | 40 l |
Brakes
| Service | Hydrostatic, retention |
| Parking | Negative |
Mast
| Fork carriage | FEM 2B |
| Carriage width | 1260 mm |
Equipment
Driving Position

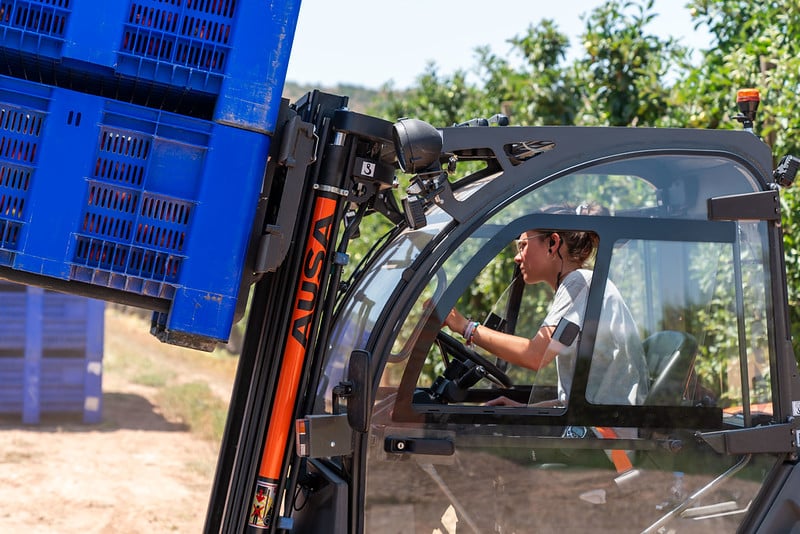

Open cab
Masts
2.66 m duplex mast
Safety
Seat belt with fasten sensor, Seat with operator’s presence sensor, LED rotating beacon, Acoustic warning for reverse gear
Lighting & Driving
Rear-view mirror, Fast reverse speed
Comfort

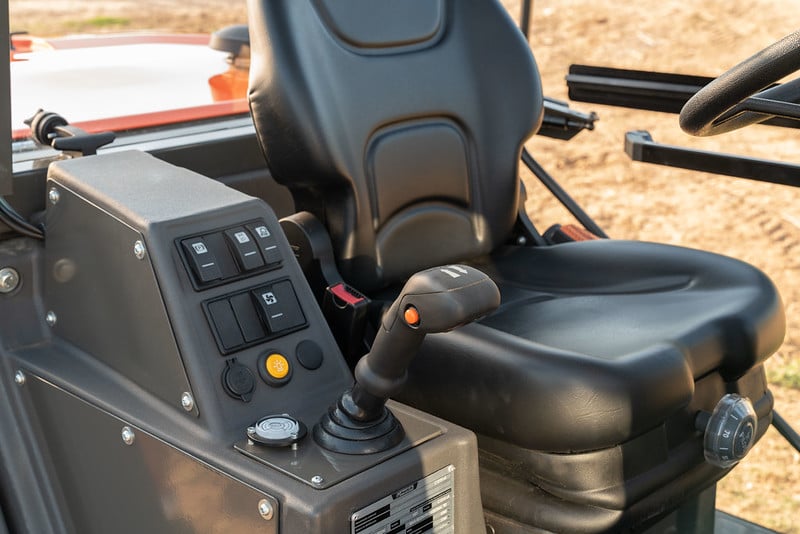

Adjustable ergonomic seat, All-in-one joystick, Armrest
Advanced equipment

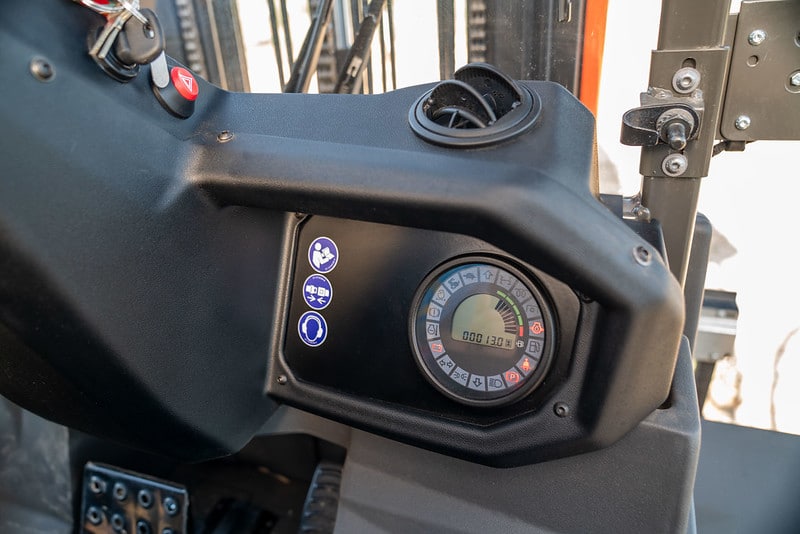

Digital display, Hydrostatic transmission, Second-generation FullGrip® (4WD)
Accessories
Fan protective grille
Forks
1,000 mm forks, 1,260 mm type FEM IIB fork carriage, Built-in side shifter
