Beehive mover

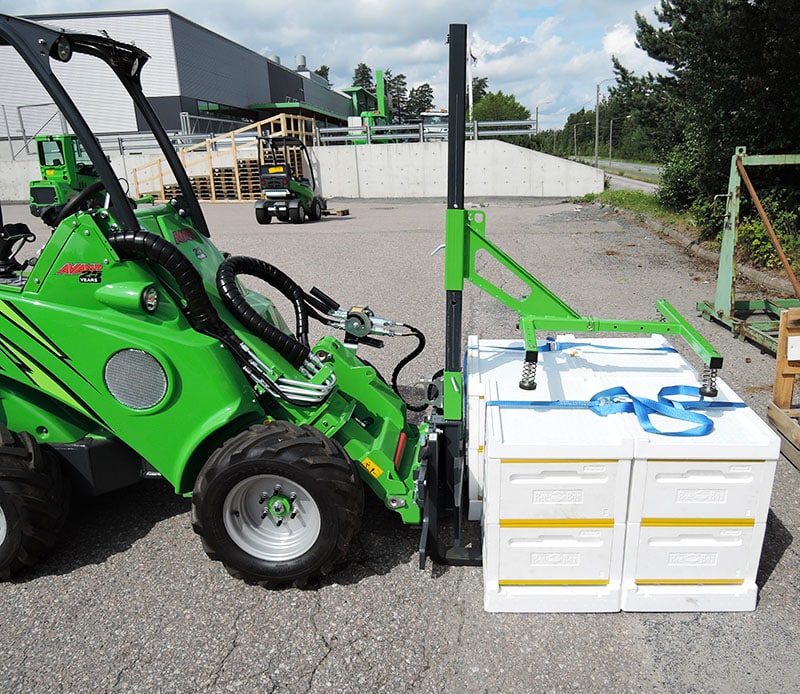

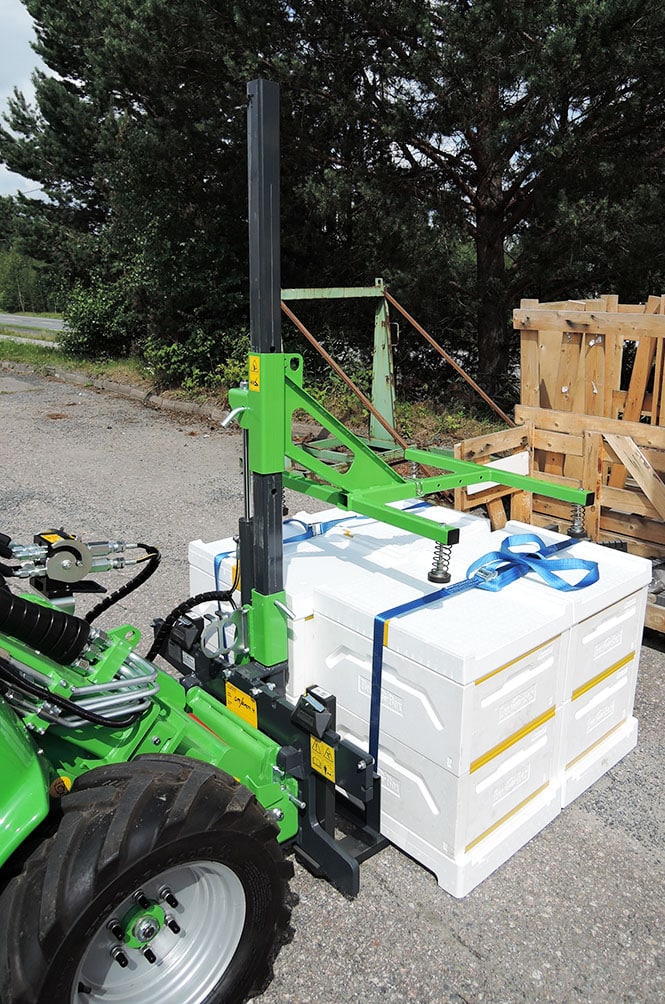

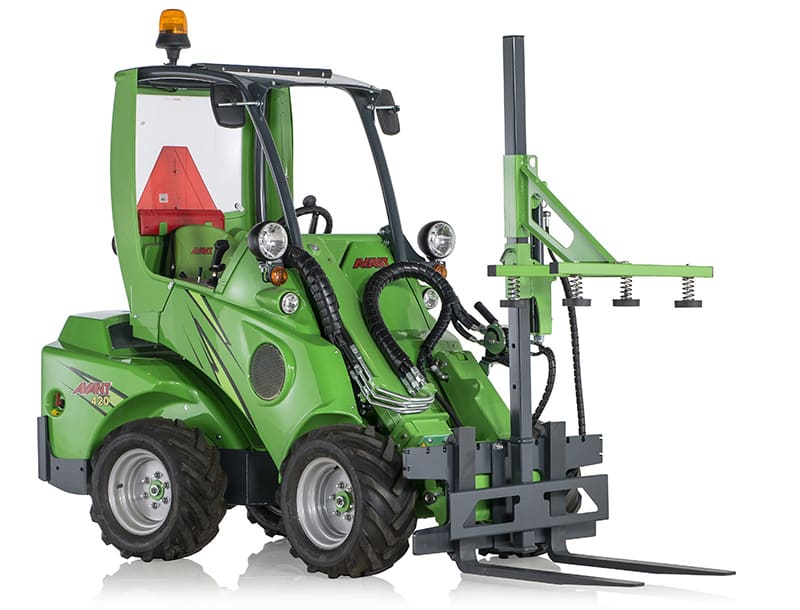

Avant beehive mover is intended basically for loading and transporting of beehive boxes, but it can handle other objects like cardboard boxes as well. The mover can carry as many as 12 beehives at a time. It consists of a mast, a pallet fork that is mounted on the lower end of the mast, and a hydraulic grapple at the upper end of the mast which presses the boxes against the pallet fork. The grapple is equipped with rubber pads which hold the beehives firmly but gently.

The beehive mover can be mounted on all Avant loaders, and if the beehives need to be transported longer distances by truck it is easy to take the Avant on the truck as well and unload and move the beehives at the destination.

The grapple can be set to five different heights between 425 โ€“ 1365 mm following the height of the load, and the vertical movement of the grapple is 340 mm. Distance between the rubber pads can be set manually to four different widths between 280 – 730 mm. Max. load on the beehive mover is 1000 kg and max. pressing force is 18 kN, which means it can handle other materials that are on pallet as well. Especially lighter boxes and similar objects which donโ€™t stay on the pallet without support are easy to hande with the beehive mover.

Fast and easy way to load and transport beehive boxes
Can handle also cardboard boxes and similar objects
Mounts on all Avant loaders
Equipped with Avant 850 mm pallet fork A21047

More Images & Videos

Technical Information

Max. load 1000 kg
Max. pressing force 18 kN
Pallet fork length 850 mm
Grabbing width 280โ€“730 mm (four widths can be set manually)
Grapple height 425โ€“1365 mm (five heights can be set manually)
Grapple cylinder stroke 340 mm
Height 1950 mm
Width 1000 mm
Length 960 mm
Weight 160 kg
Product number A36935

Options

Compatible Models

very-compatible icon220
very-compatible icon225
very-compatible icon225LPG
very-compatible icon313S
very-compatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
incompatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
very-compatible icone513
very-compatible icone527
