Auger

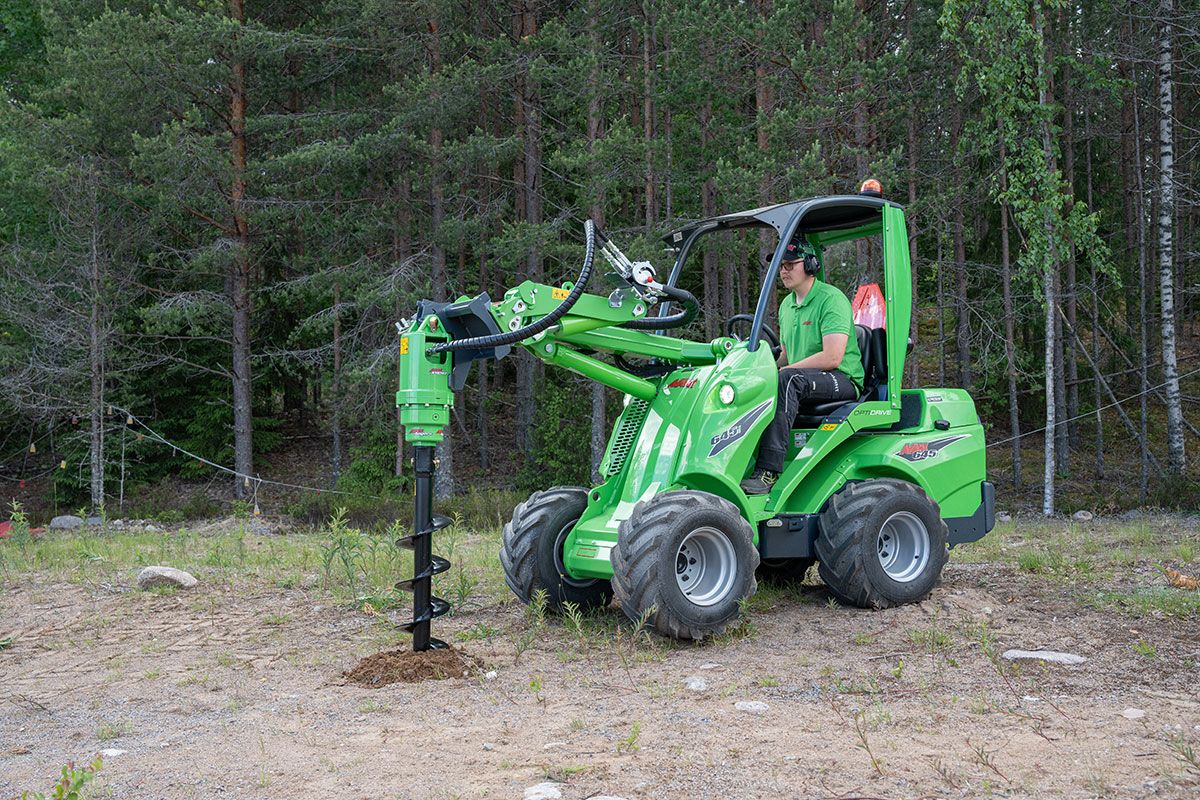

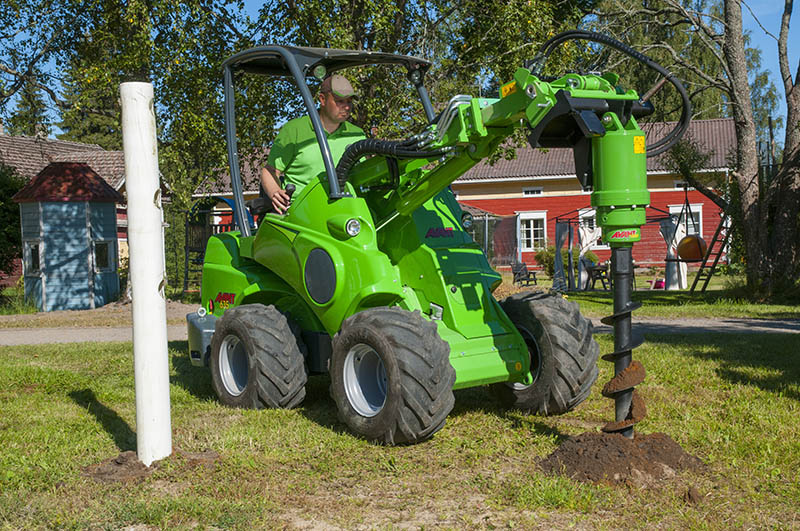

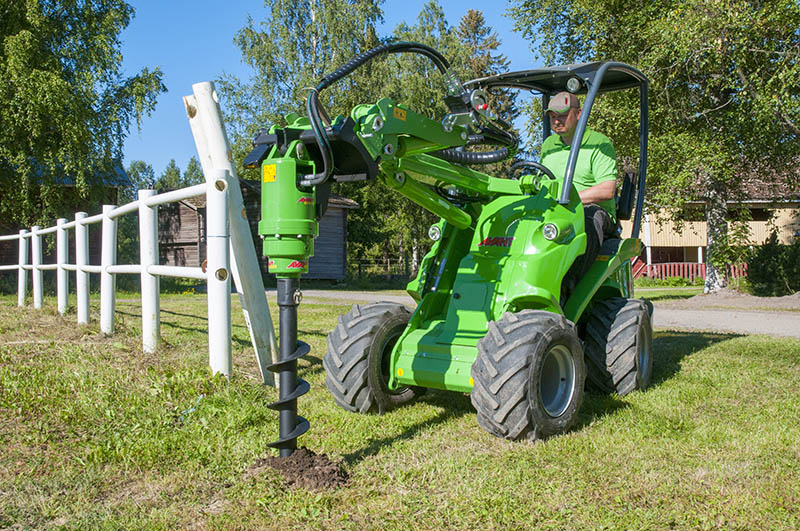

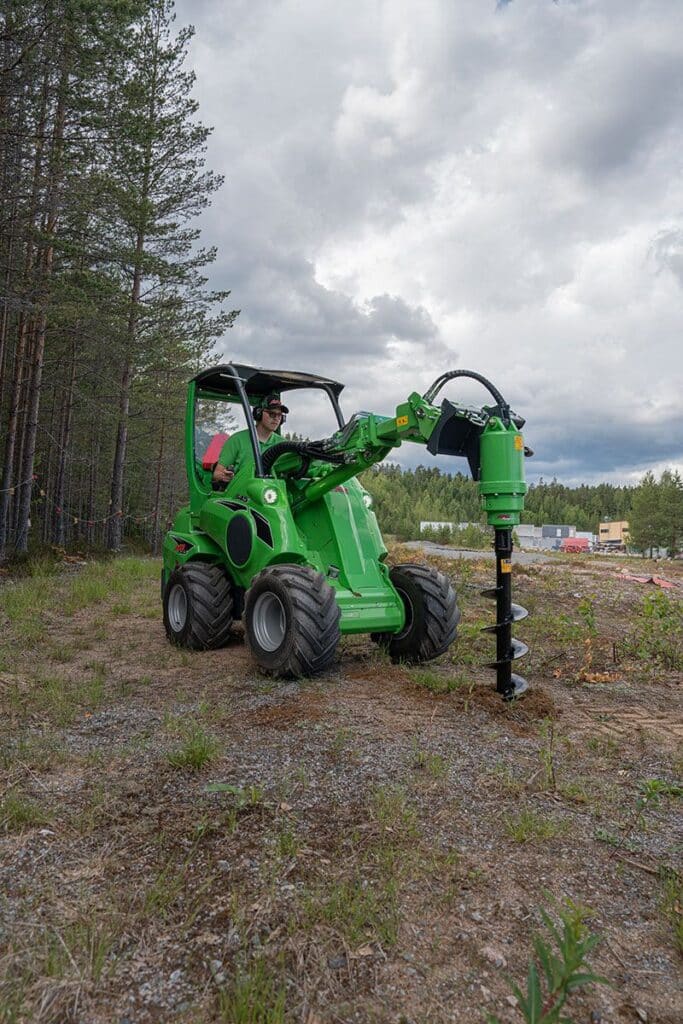

Powerful hydraulic auger with many different drill diameters to suit various tasks, be it post hole boring, tree transplanting, etc. The standard drive unit has a hydraulic motor and direct drive to the auger. The heavy-duty drive unit is equipped with the planetary drive to increase torque, needed especially in hard ground conditions or when using large-diameter augers.

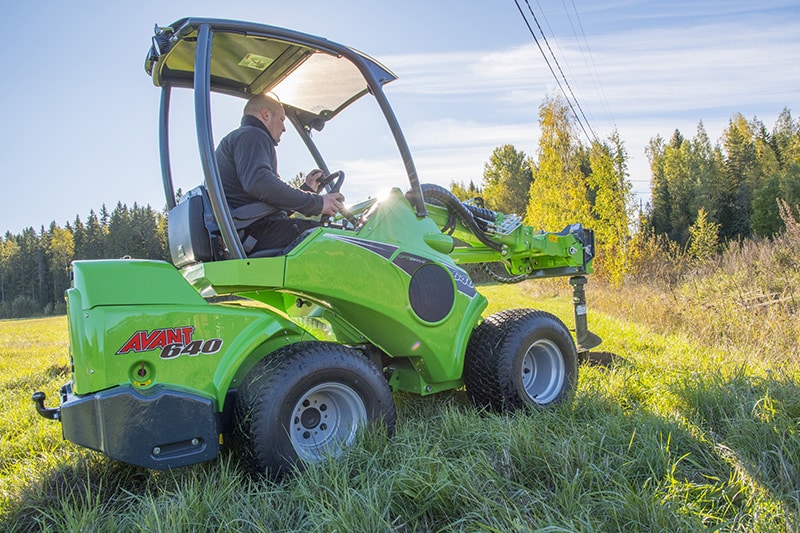

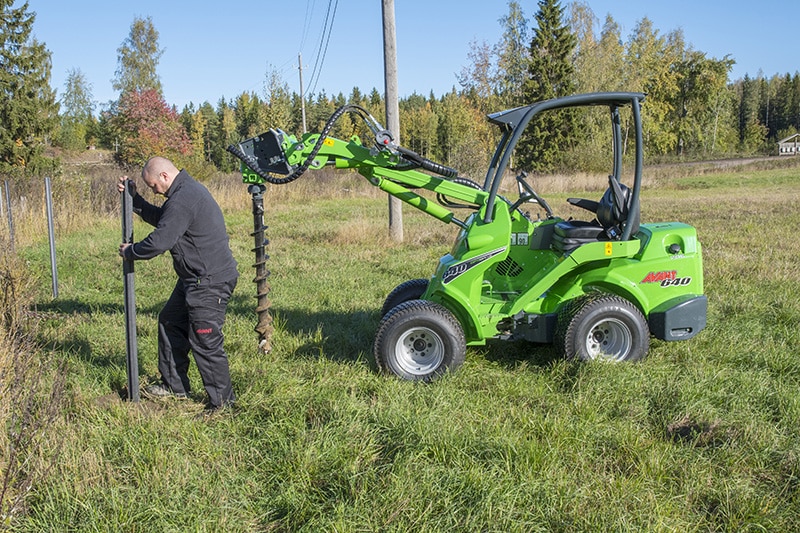

Replaceable tungsten teeth and center pilot are a standard feature in the auger drills. This enables drilling in hard ground, as well as in sandstone. Combination of an articulated Avant and auger offer excellent visibility and minimum ground damage.
Wide range of auger drive units with different torques enables efficient use of 75 mm to 900 mm auger drills
The right drive unit for your work depends on the maximum drill diameter needed. Choose the drive unit from the table below.
The replaceable tungsten teeth and center pilot on all auger drills ensure long lifespan also on professional day to day use

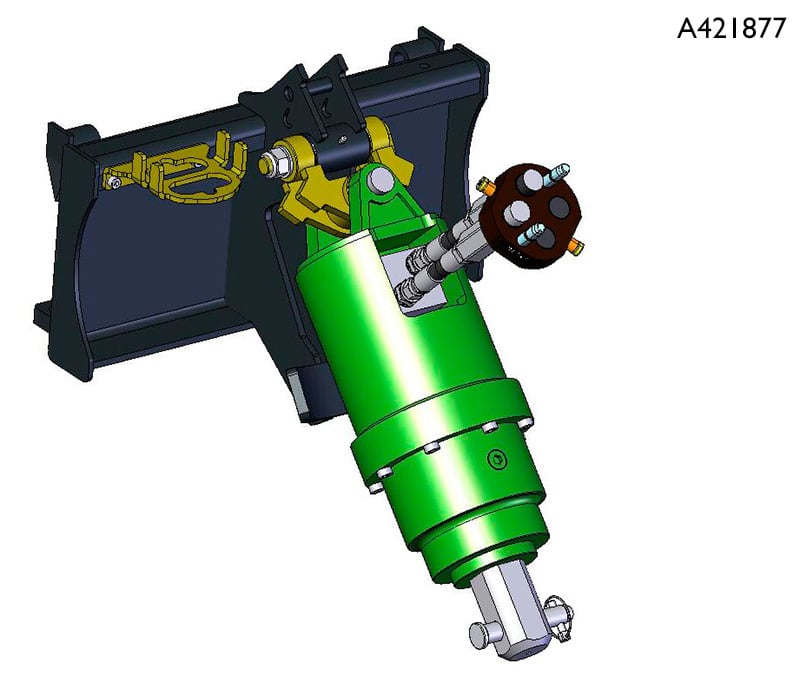

2 way swing adapter for HD auger drives. Allows the auger and auger drive to swing sideways also, which means that the hole can be drilled straight no matter how the machine is positioned.
More Images & Videos
Technical Information
| Model | Drills | Torque | Product no |

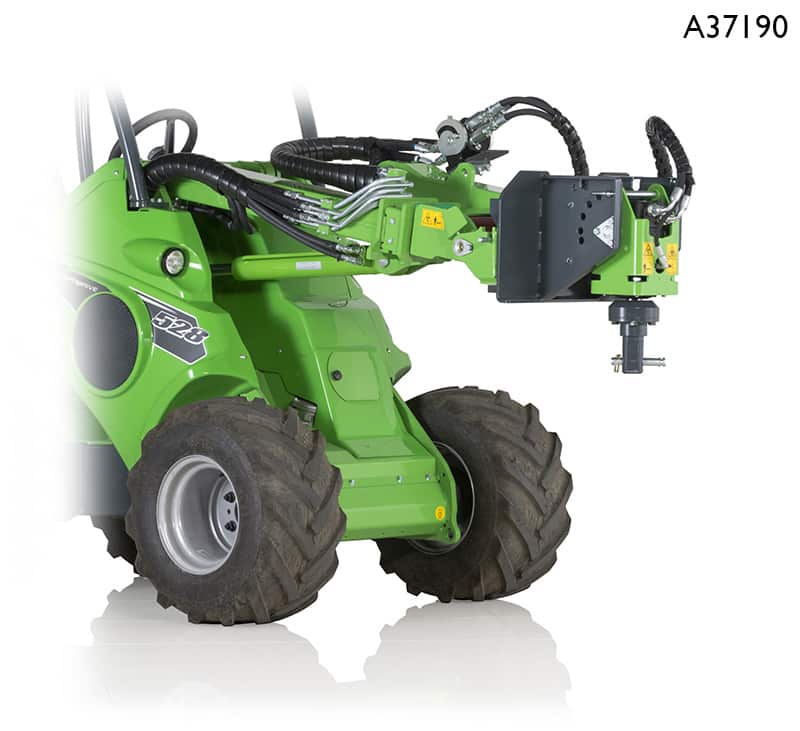

| Direct drive | 75–300 mm | 1355 Nm | A37190 |
| HD 45 | 75–600 mm | 2452 Nm | A33552 |
| HD 58 | 75–750 mm | 3017 Nm | A33551 |
| HD 72 | 75–900 mm | 3874 Nm | A34032 |

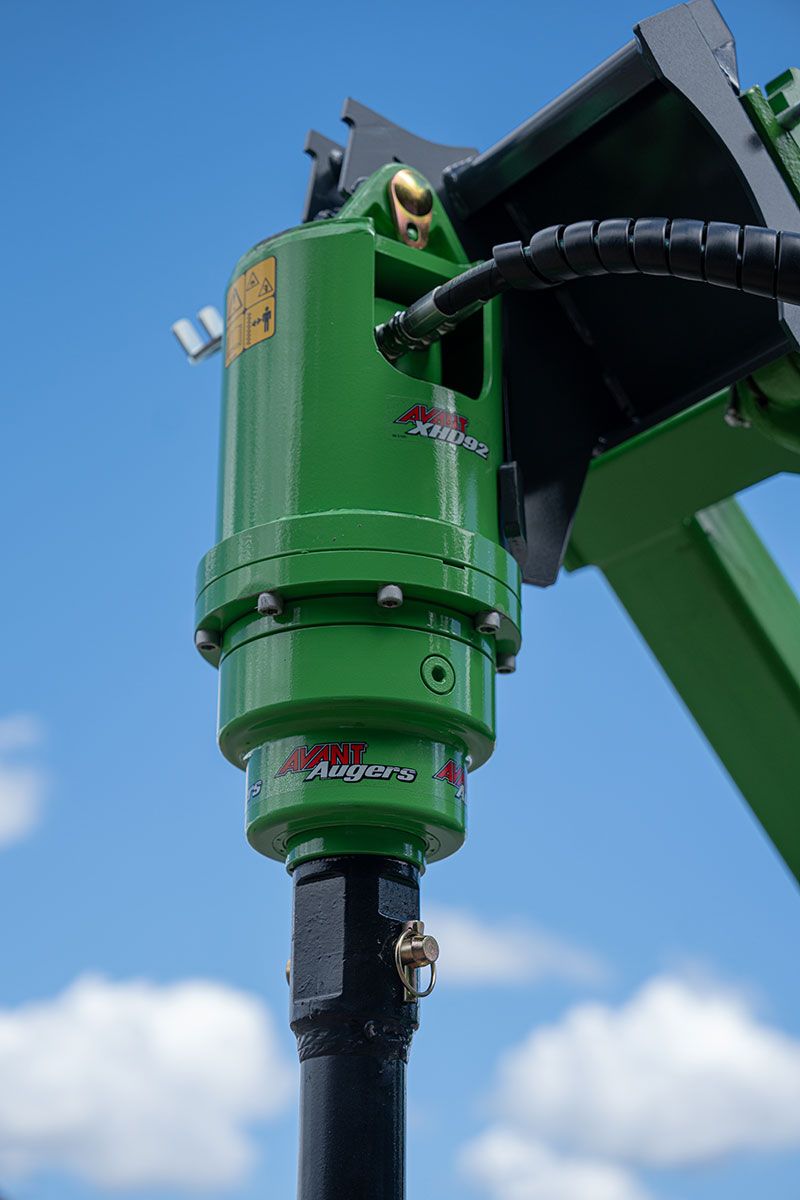

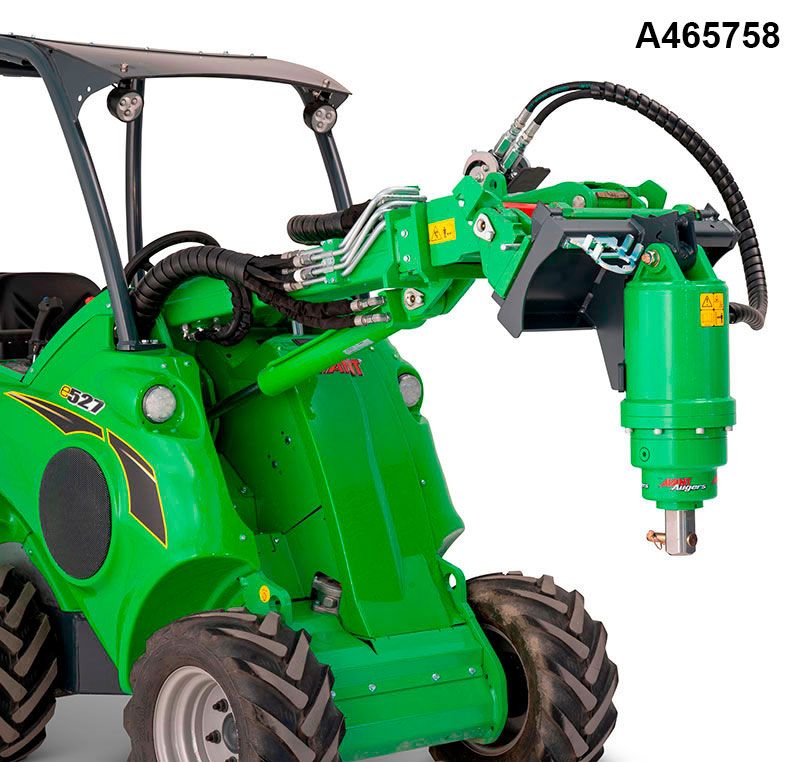

| XHD 92 | 75–900 mm | 5477 Nm | A465758 |
Options
| Product | Product no |
| Drill 75 mm | A34225 |
| Drill 100 mm | A33601 |
| Drill 150 mm | A33608 |
| Drill 200 mm | A33609 |
| Drill 225 mm | A33610 |
| Drill 250 mm | A33611 |
| Drill 300 mm | A33612 |
| Drill 350 mm | A33613 |
| Drill 400 mm | A33614 |
| Drill 450 mm | A33615 |
| Drill 500 mm | A33616 |
| Drill 600 mm | A33617 |
| Drill 750 mm | A33618 |
| Drill 900 mm | A33619 |
| Extension 500 mm | A33546 |
| Extension 800 mm | A32532 |
| Extension 1000 mm | A33554 |
| 2-way swing adapter to HD auger drives (allows the auger and auger drive to swing sideways as well) | A421877 |
Compatible Models
- Very compatible
- Compatible
- Incompatible
220 - model A37190225 - model A37190225LPG - model A37190313S - model A37190320S - model A37190420 & 423 - model A37190520 - model A37190523 - model A37190525LPG - model A37190528 - model A37190530 - model A37190R20 - model A37190R28 - model A37190R35 - model A37190630 - model HD 45-72635 - model HD 45-72640 - model HD 45-72735 - model A37190745 - model A37190750 - model A37190755i - model A37190760i - model A37190850 - model A37190860i - model A37190
e513 - model A37190e527 - model A37190
220 - model HD 45-72225 - model HD 45-72225LPG - model HD 45-72313S - model HD 45-72320S - model HD 45-72420 & 423 - model HD 45-72520 - model HD 45-72523 - model HD 45-72525LPG - model HD 45-72528 - model HD 45-72530 - model HD 45-72R20 - model HD 45-72R28 - model HD 45-72R35 - model HD 45-72630 - model HD 45-72635 - model HD 45-72640 - model HD 45-72735 - model HD 45-72745 - model HD 45-72750 - model HD 45-72755i - model HD 45-72760i - model HD 45-72850 - model HD 45-72860i - model HD 45-72e513 - model HD 45-72e527 - model HD 45-72220 - model XHD 92225 - model XHD 92225LPG - model XHD 92313S - model XHD 92320S - model XHD 92420 & 423 - model XHD 92520 - model XHD 92523 - model XHD 92525LPG - model XHD 92528 - model XHD 92530 - model XHD 92R20 - model XHD 92R28 - model XHD 92R35 - model XHD 92630 - model XHD 92635 - model XHD 92640 - model XHD 92735 - model XHD 92745 - model XHD 92750 - model XHD 92755i - model XHD 92760i - model XHD 92850 - model XHD 92860i - model XHD 92e513 - model XHD 92e527 - model XHD 92
