Attachment rotator

The attachment rotator makes it possible to rotate the attachment 360ยฐ continuously (endlessly) in both directions. This is useful in many jobs, for instance when emptying boxes that need to be turned upside down.



Like the tilt adapters, the rotator mounts between the attachment and the loaderโ€™s attachment coupling plate. It is equipped with a hydraulic motor and a slewing ring that allow the 360ยฐ rotation. Load capacity is 1.200 kg, and when mounted on the rotator the attachment is 195 mm further away from the loaderโ€™s attachment coupling plate.

The attachment rotator is basically intended to be used with non-hydraulic attachments like pallet fork and it is equipped with the multi-connector as standard, but also a hydraulically driven attachment (4 in 1 bucket, grabbing tool, etc.) can be mounted. In this case, the loader must be equipped with the optional second auxiliary hydraulics front outlet. Hydraulic hoses of the attachments are mounted on the standard multi-connector and the rotator hoses on the extra front outlet.

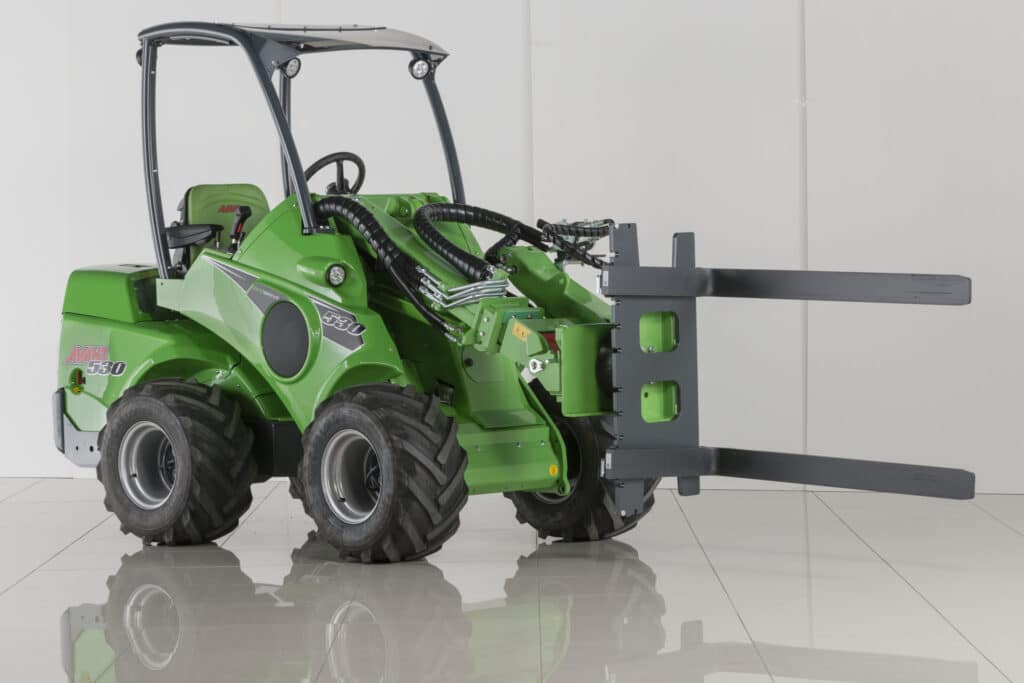

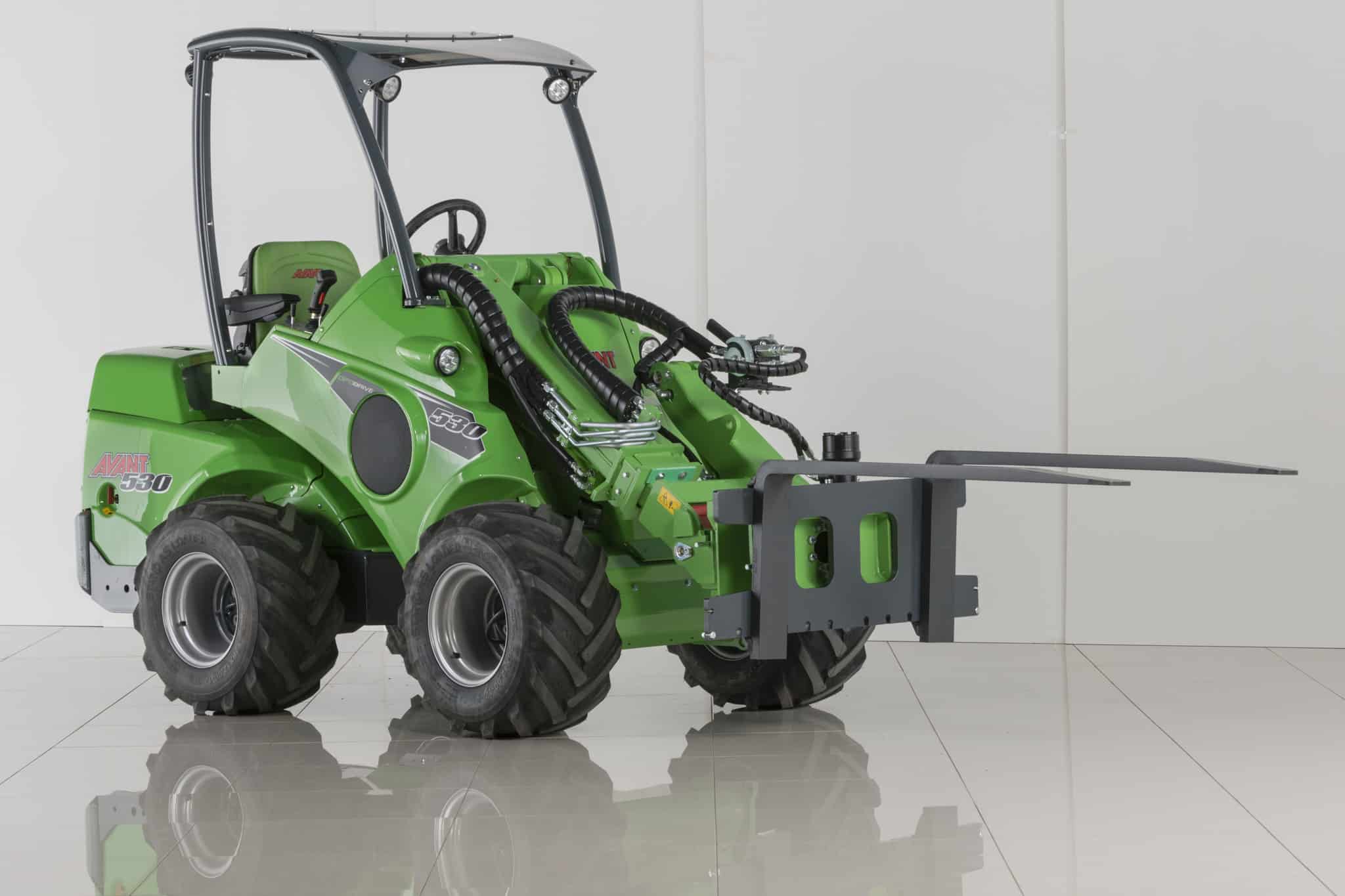

Hydraulic rotator makes it possible to empty boxes by turning them upside down, lifting of pallets on uneven ground, turning the attachment 360ยฐ, etc.

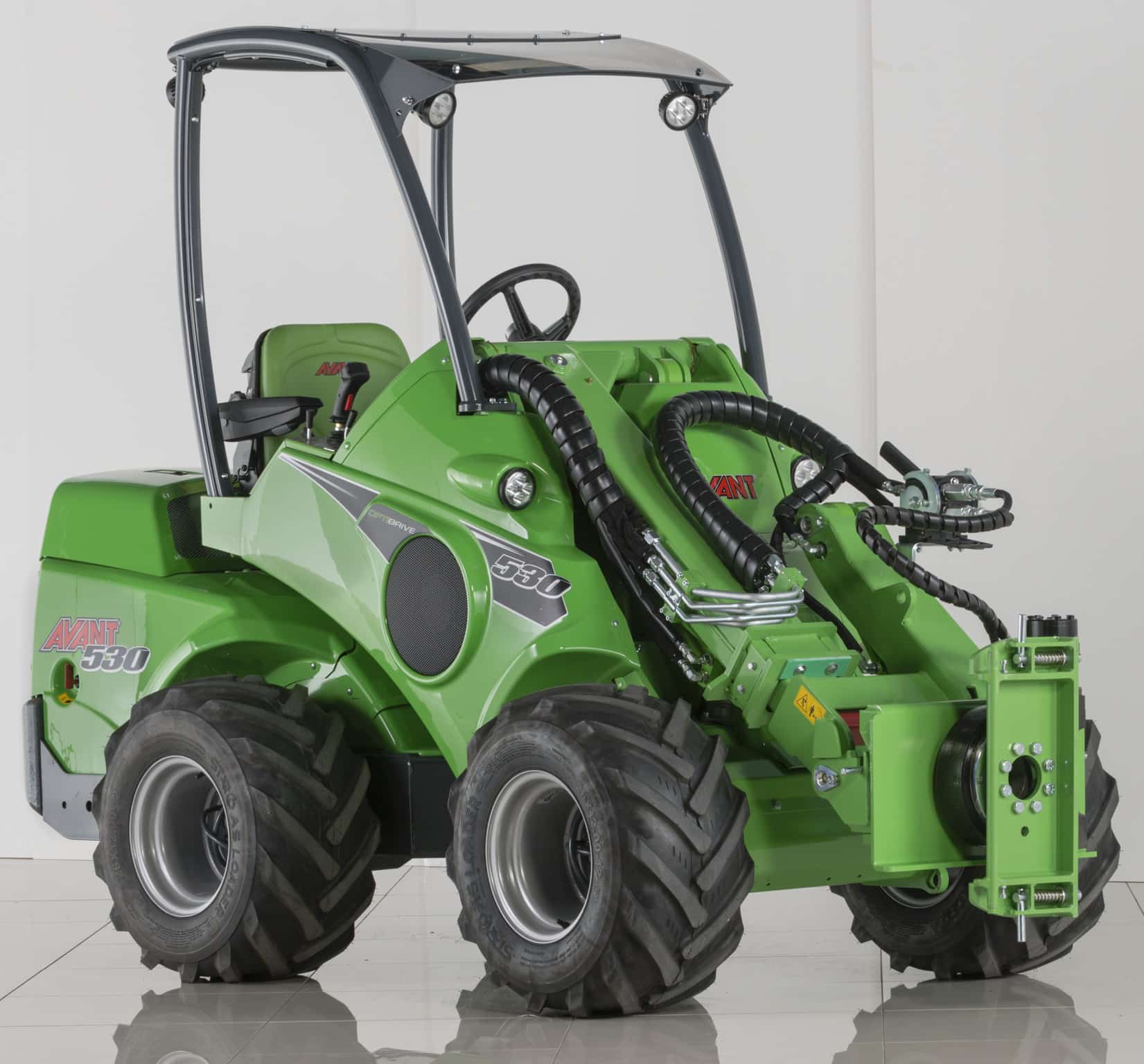

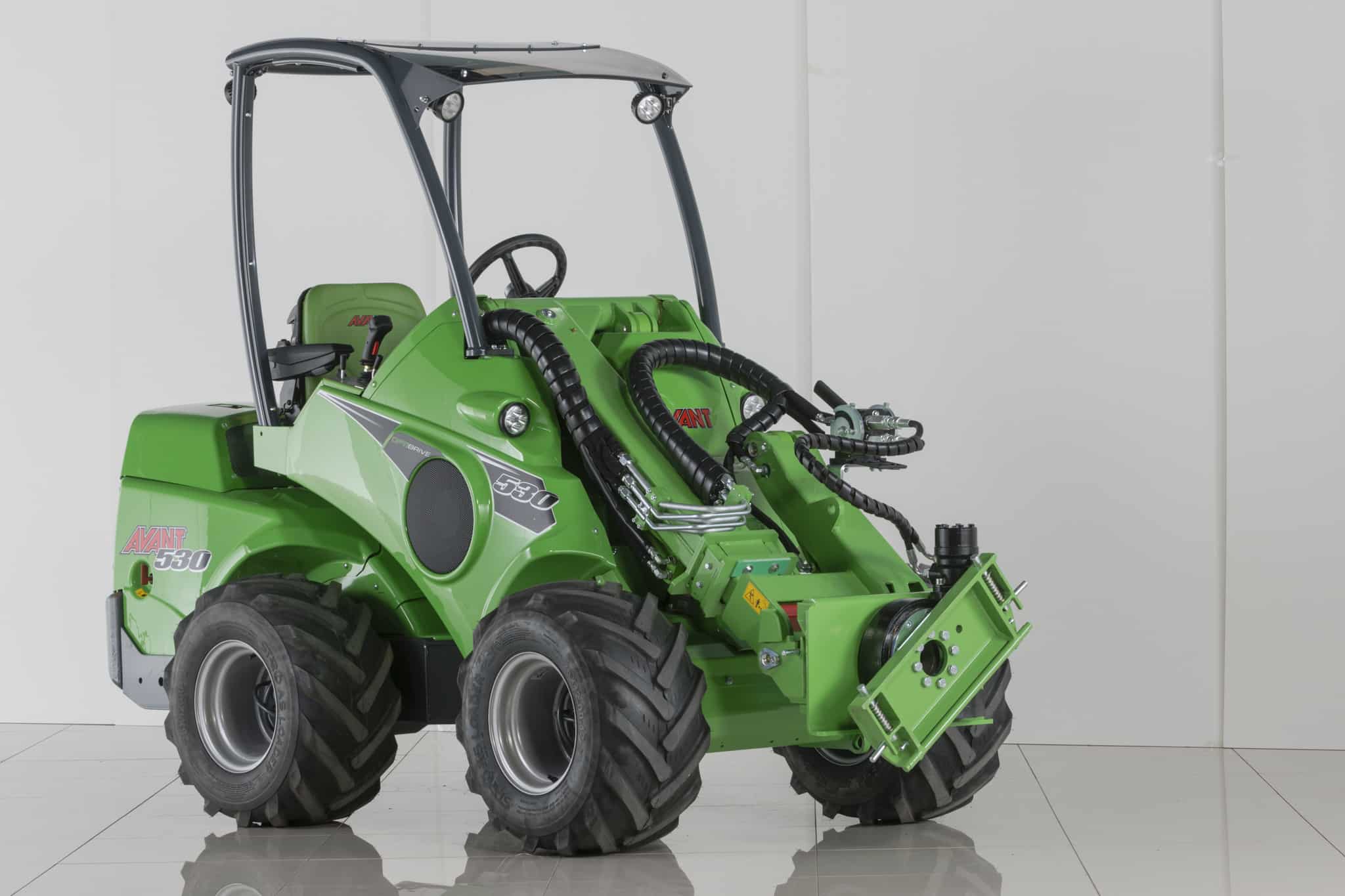

Mounts between the attachment and the quick attach plate of the loader

More Images & Videos

Technical Information

Rotation 360ยฐ continuous
Rated max load 1200 kg
Weight 96 kg
Product no. A424406

Options

Compatible Models

very-compatible icon220
very-compatible icon225
very-compatible icon225LPG
very-compatible icon313S
very-compatible icon320S
very-compatible icon420 & 423
very-compatible icon520
very-compatible icon523
very-compatible icon525LPG
very-compatible icon528
very-compatible icon530
very-compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
very-compatible icone513
very-compatible icone527
