Asphalt spreader

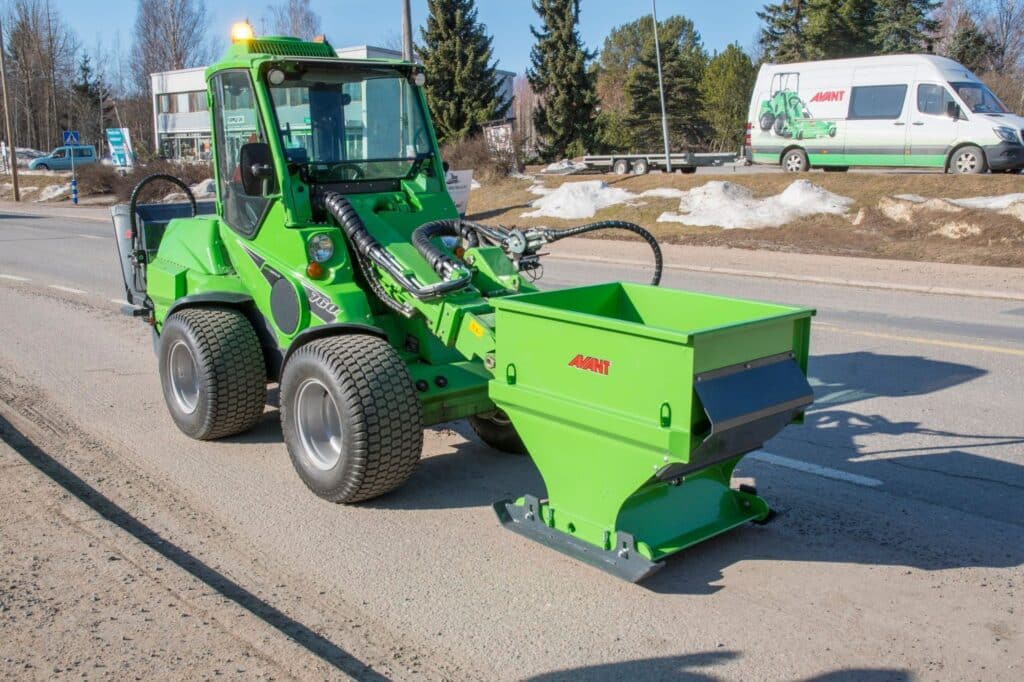

Asphalt spreader is efficient and easy to operate attachment for smaller repairs on roads, pavements, yards, etc. It is intended for spreading mastic asphalt (guss asphalt) which is made especially for surface repairs. Therefore the spreader doesnโ€™t work with traditional asphalt.

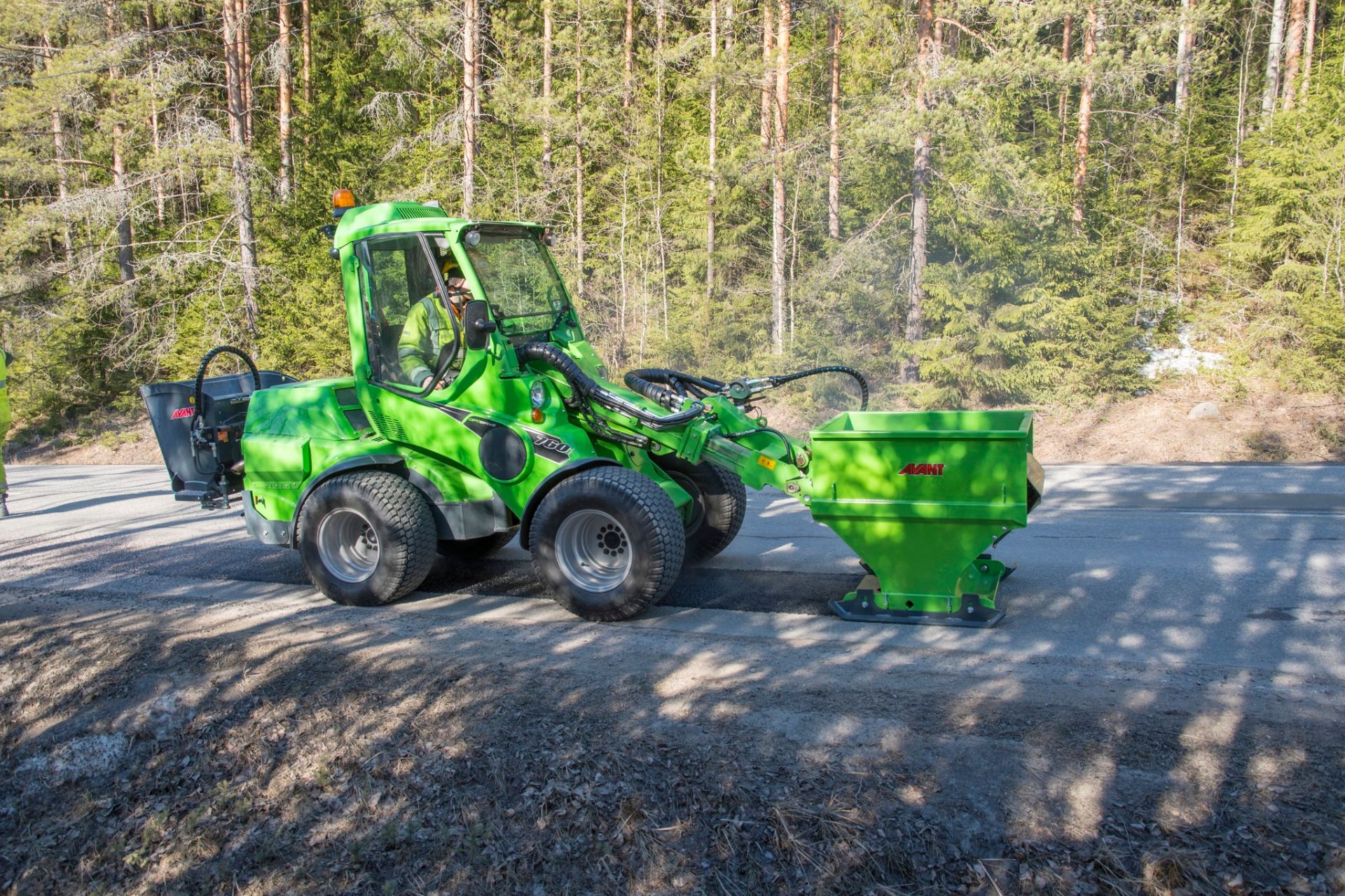

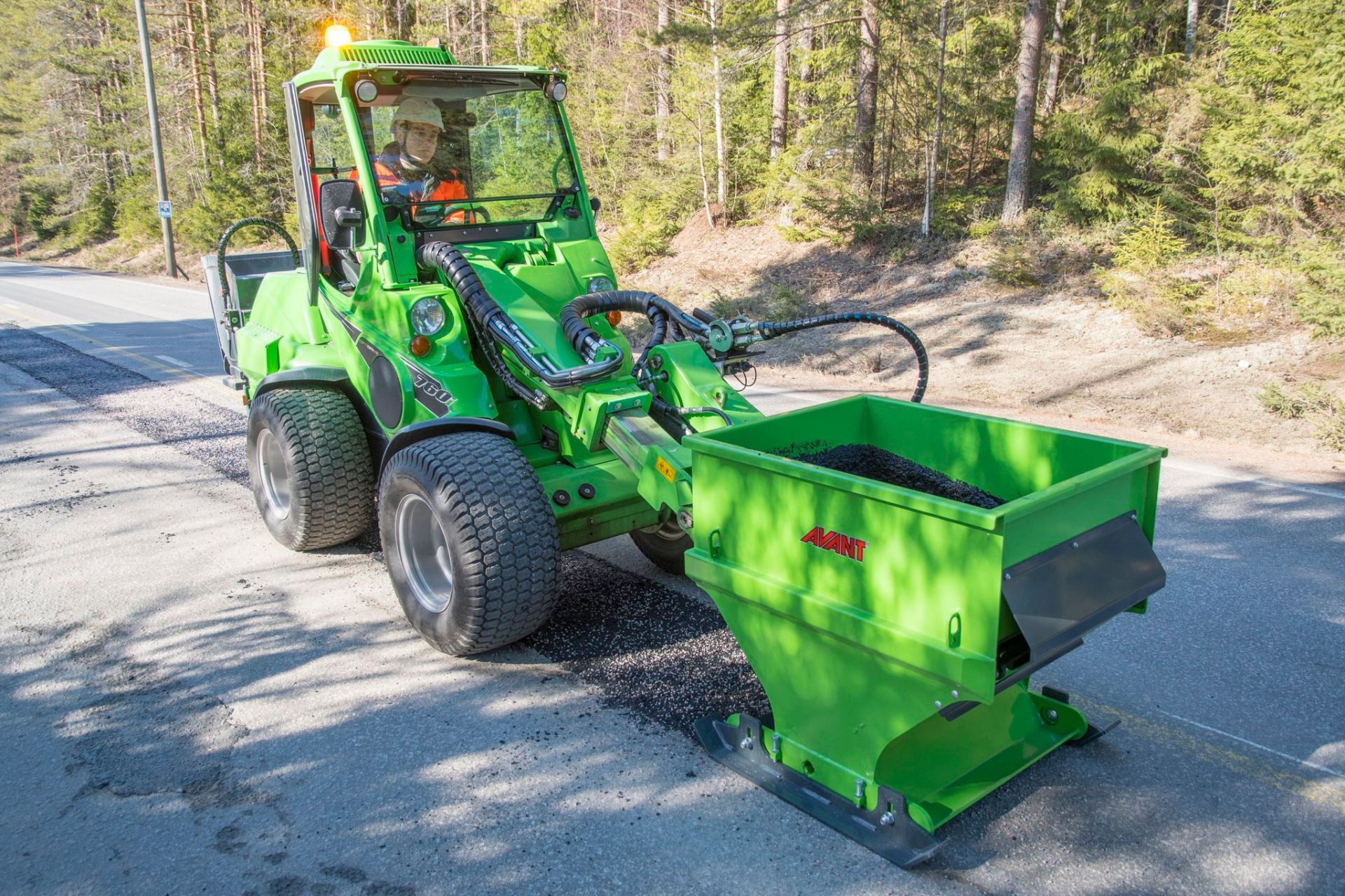

The 700 mm wide asphalt strip is spread by driving forward with the loader. This way the new asphalt surface runs between the wheels of the loader. Hydraulically operated hatch at the bottom of the spreader allows spreading the right amount of asphalt to the rear compacting plate which compacts the asphalt – additional compacting with an asphalt roller is not necessary. The unit moves on skid shoes made of Hardox steel.

The required aggregate (sand) spreading on asphalt – to make the new asphalt less slippery – can be done at the same time with the rear-mounted Avant sand spreader.

Easy and fast asphalt surface repairs on roads, pavements, parking lots, etc.
Works with mastic asphalt
Rear compacting plate on the spreader compacts the asphalt, additional finishing with asphalt roller is not necessary
Aggregate spreading can be done at the same time with the rear-mounted Avant sand spreader

More Images & Videos

Technical Information

Working width 700 mm
Total width 902 mm
Volume 360 l
Length 1050 mm
Height 913 mm
Compaction plate height adjustment 0 – 40 mm
Weight 240 kg
Product no A427857

Options

Compatible Models

incompatible icon220
incompatible icon225
incompatible icon225LPG
incompatible icon313S
incompatible icon320S
incompatible icon420 & 423
compatible icon520
compatible icon523
compatible icon525LPG
very-compatible icon528
very-compatible icon530
compatible iconR20
very-compatible iconR28
very-compatible iconR35
very-compatible icon630
very-compatible icon635
very-compatible icon640
very-compatible icon735
very-compatible icon745
very-compatible icon750
very-compatible icon755i
very-compatible icon760i
very-compatible icon850
very-compatible icon860i
compatible icone513
compatible icone527
